Section 120 (Audio System): Amplifier: Removal
WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Unlatch and lift the right rear seat cushion to the upright position.

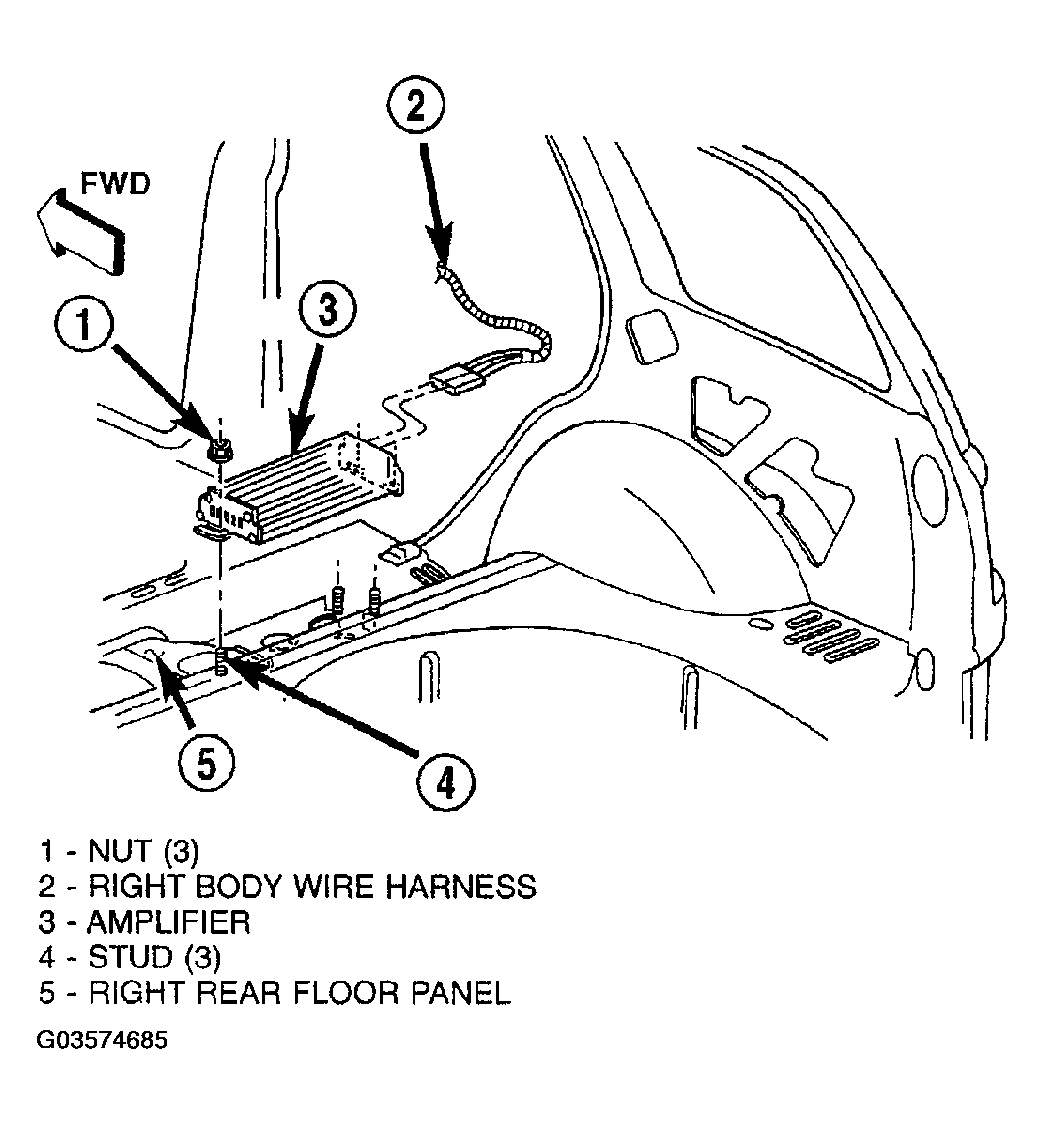

- Disconnect the two right body wire harness connectors from the amplifier (Fig 1).
- Remove the three mounting nuts.
- Remove the power amplifier.
