Transmission Control Module: Description

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

The Transmission Control Module (TCM) is located in the engine compartment on the right (passenger) side and is mounted to the inner fender (Fig 1 ).

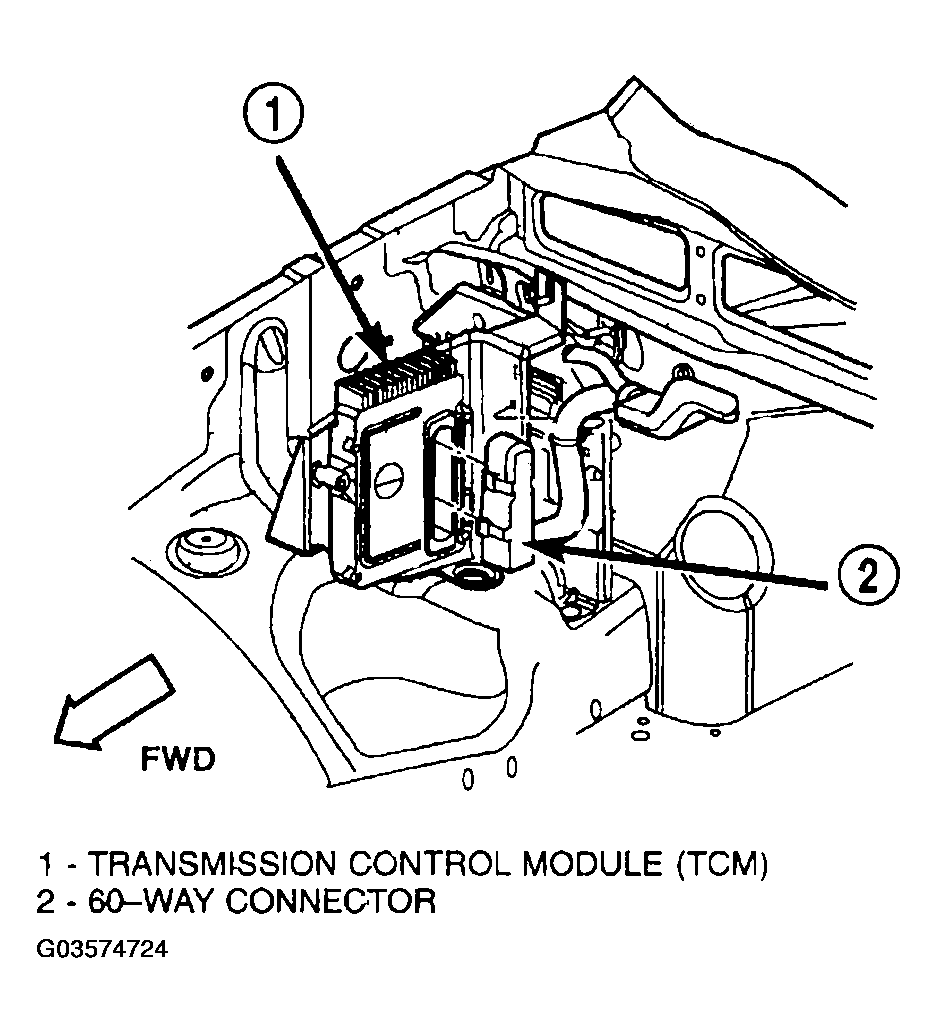

Fig 1: Transmission Control Module Location
G03574724Courtesy of DAIMLERCHRYSLER CORP.
