Tailgate Cylinder Lock Switch: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the tailgate trim panel. See TAILGATE TRIM PANEL  .
  3. Remove the retainer clip from the pin on the back of the door lock cylinder.

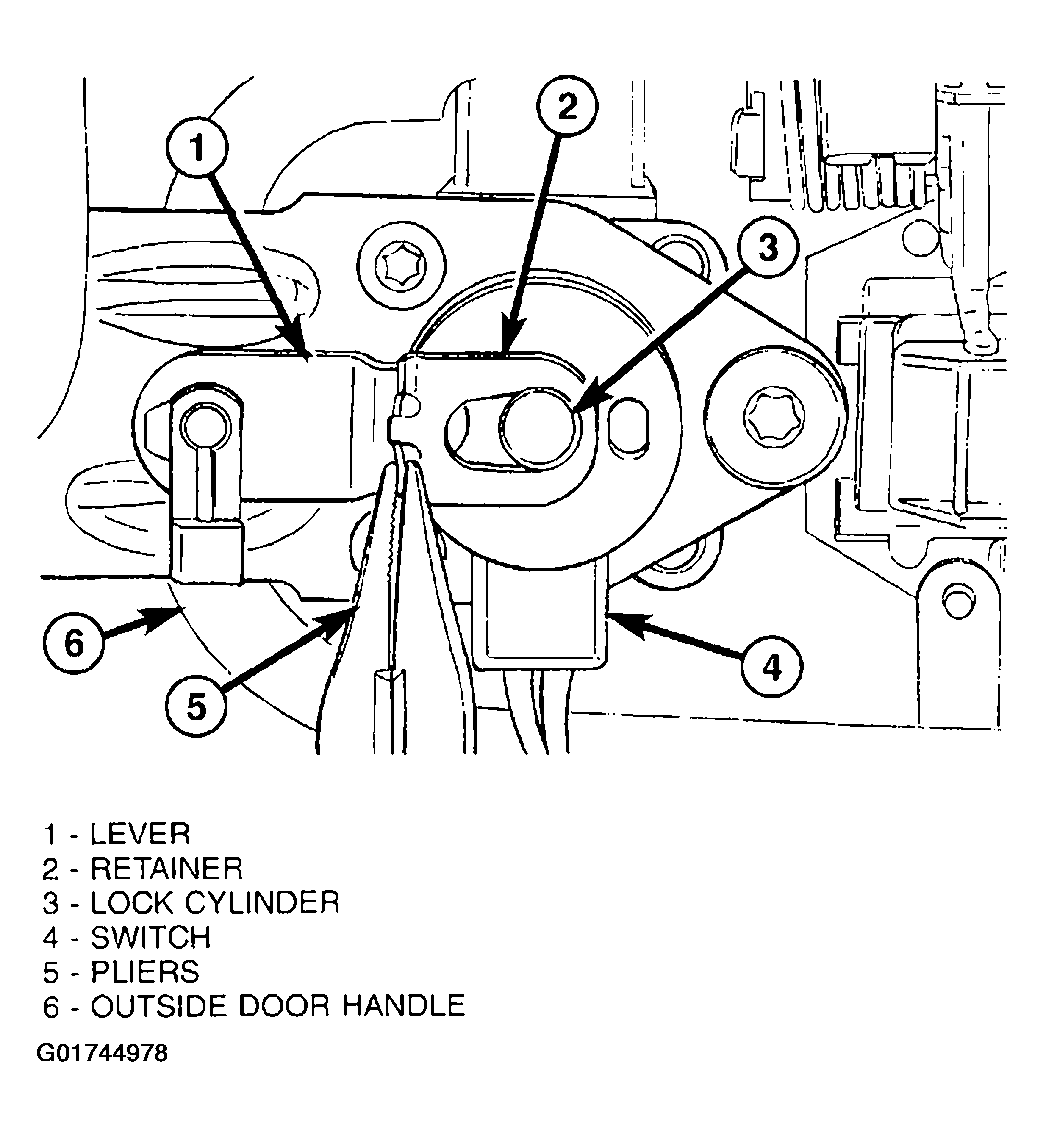

    Fig 1: Removing & Installing Lock Cylinder Switch (Typical)
    G01744978Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the washer from the pin on the back of the door lock cylinder.
  5. Remove the door cylinder lock switch from the back of the lock cylinder.
