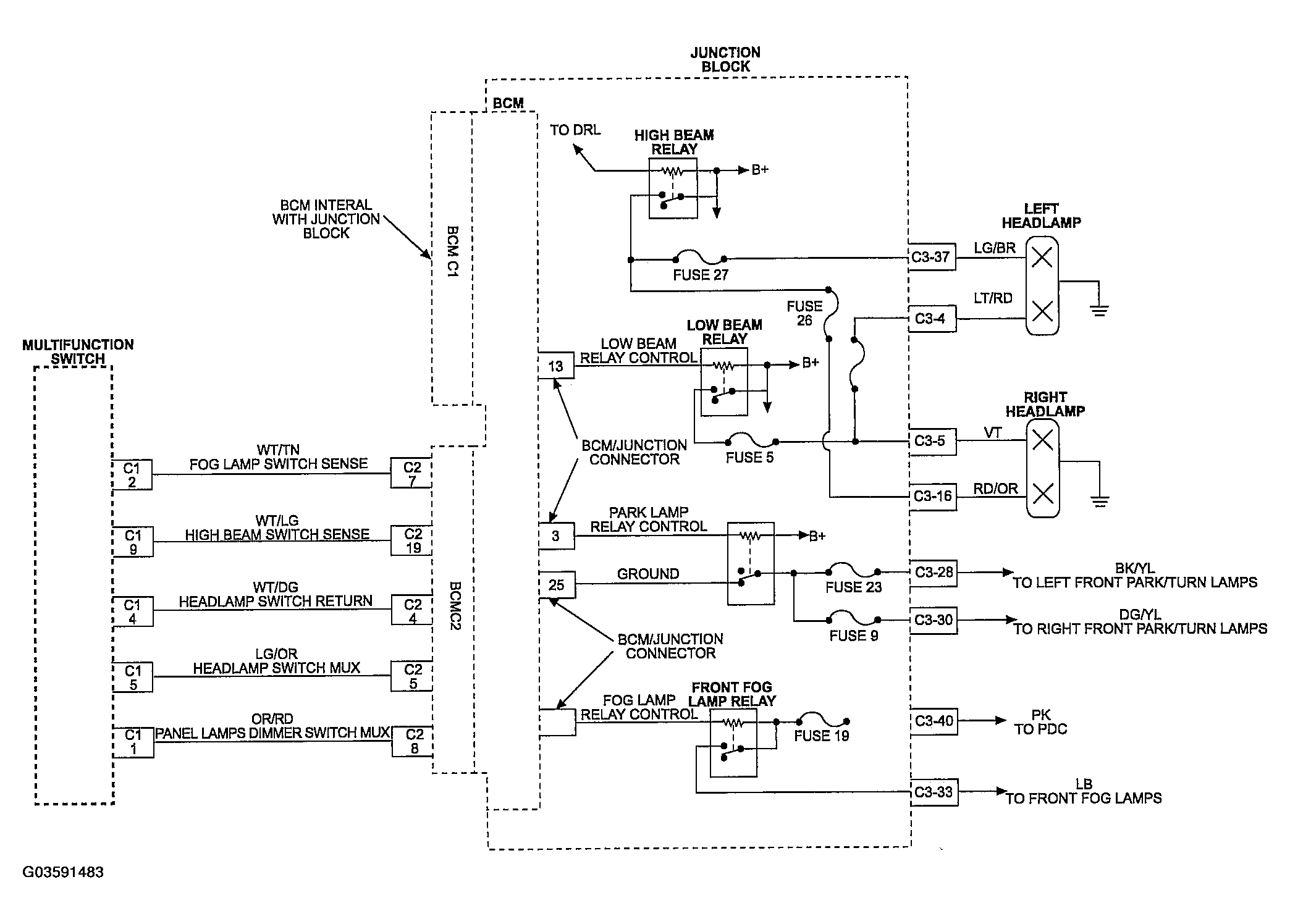

Home >> Jeep >> 2004 >> Liberty Renegade, 4WD, Part Time, Automatic >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Schematic Diagrams >> Exterior Lighting
