Powertrain Control Module C2 - 38 Way Connector End View

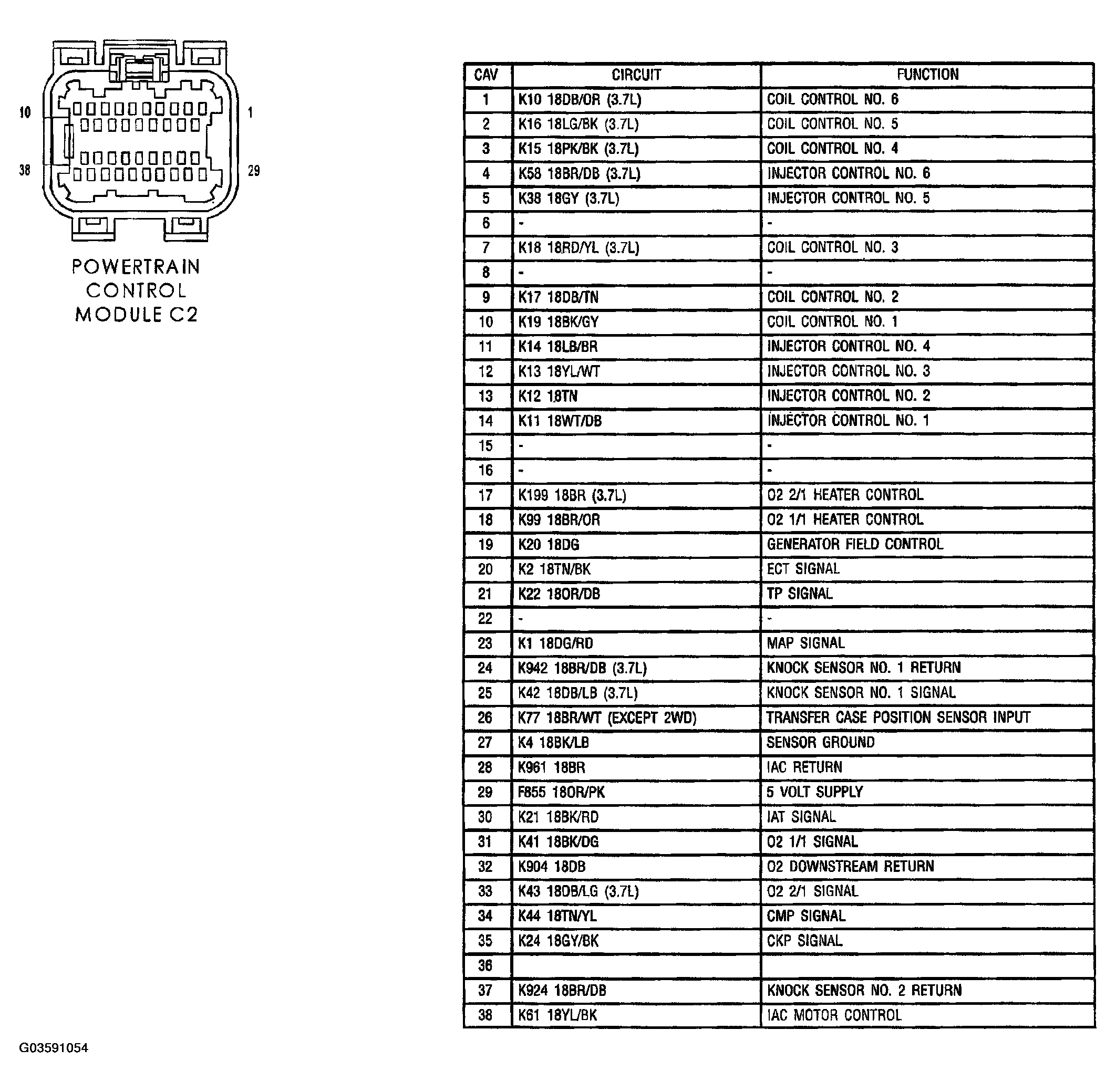

Fig 1: Powertrain Control Module Connector End View (C2)

G03591054

Courtesy of DAIMLERCHRYSLER CORP.
