Engine Coolant Temperature Sensor: Removal: 3.7L

The Engine Coolant Temperature (ECT) sensor is installed into a water jacket at front of intake manifold near rear of generator.

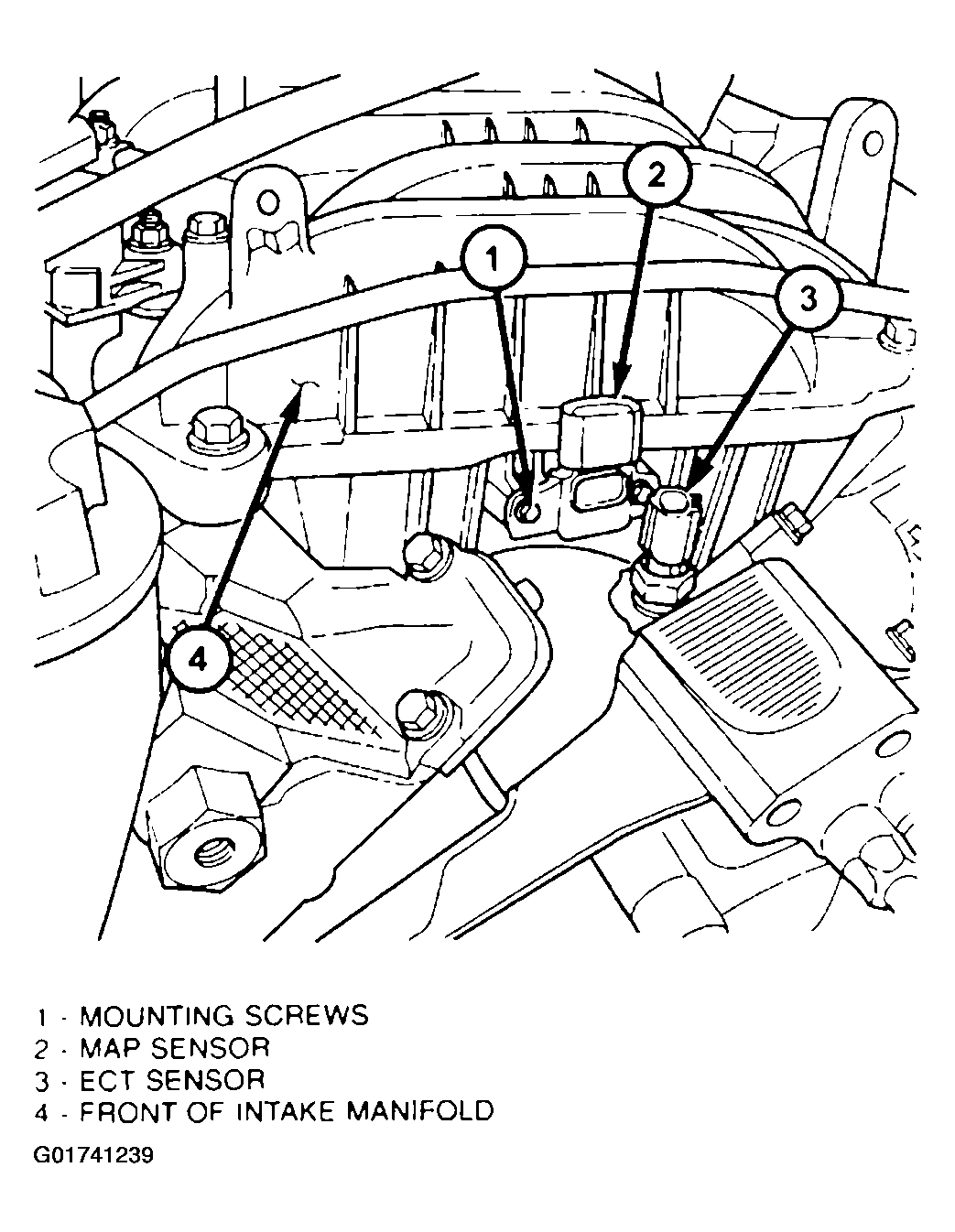

Fig 1: Removing MAP Sensor/ECT Sensor 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING. COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE COOLANT TEMPERATURE SENSOR.
1. Partially drain cooling system.
2. Disconnect electrical connector from sensor.
3. Remove sensor from intake manifold.
