Door Lock/Unlock Switch: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

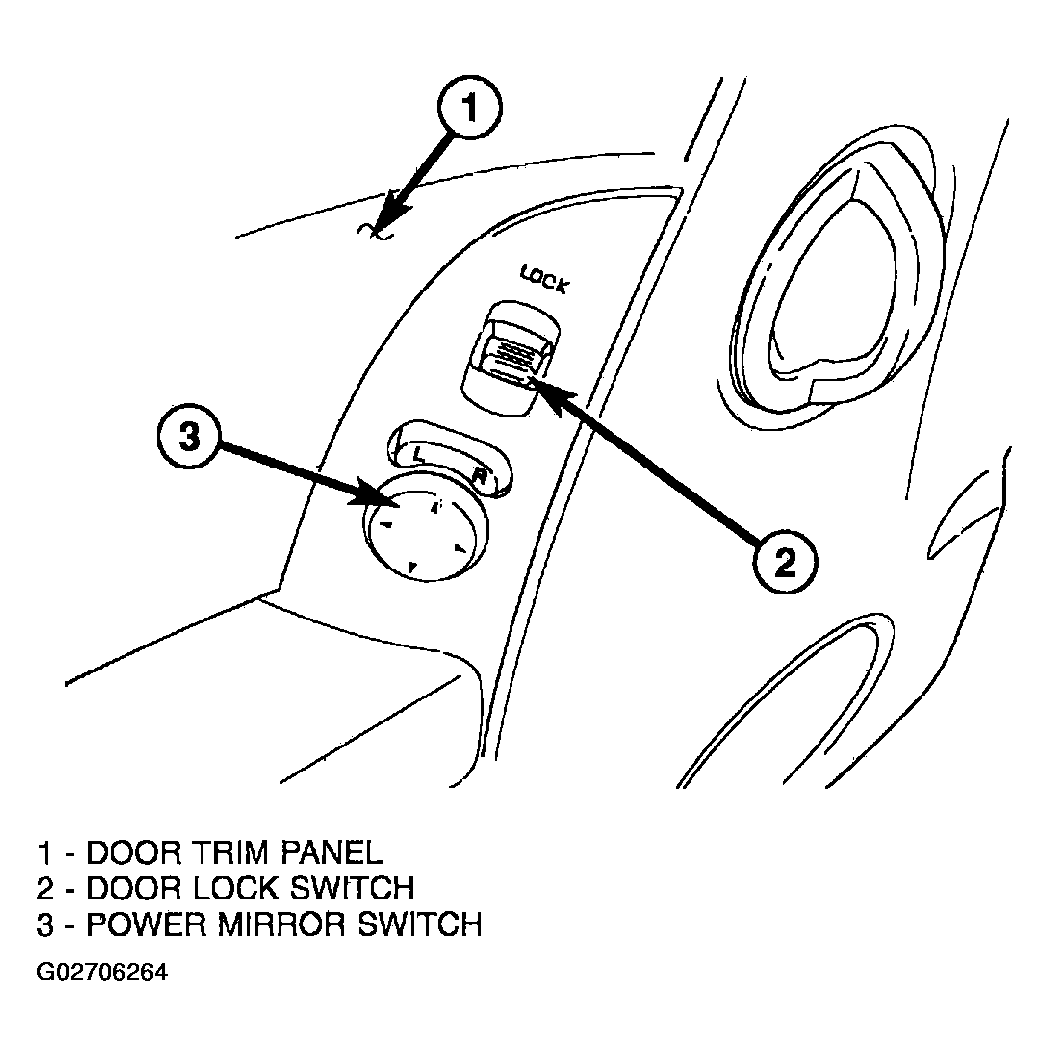

- Remove the door trim panel (Fig 1
) (Refer to
BODY/DOOR - FRONT/TRIM PANEL - REMOVAL
).
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect electrical harness connector from switch.

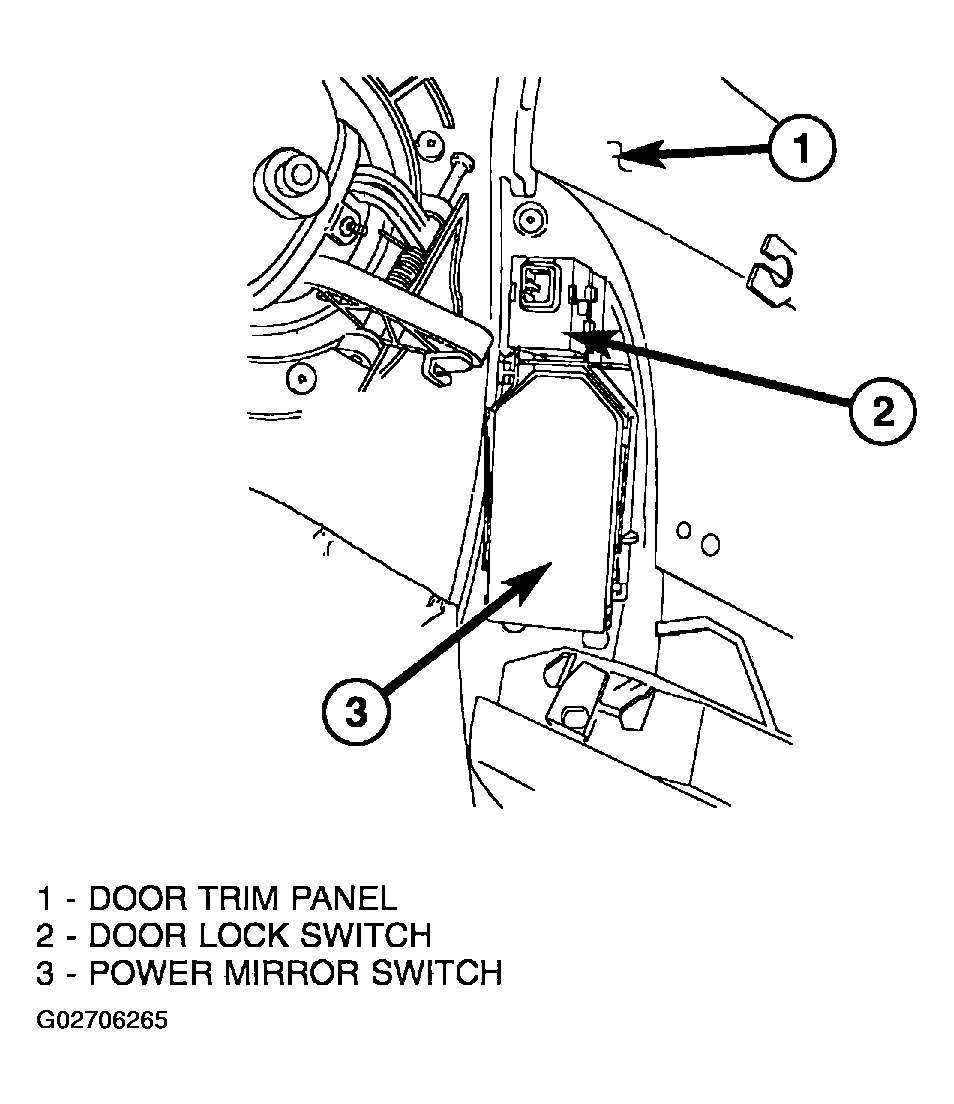

- From behind the door trim panel, gently pry the switch from the door trim panel (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
