Radiator Pressure Cap: Description

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The cooling system cap is located on the coolant pressure bottle. The cap construction includes; stainless steel swivel top, rubber seals and retainer, main spring, and a spring loaded valve (Fig 1).

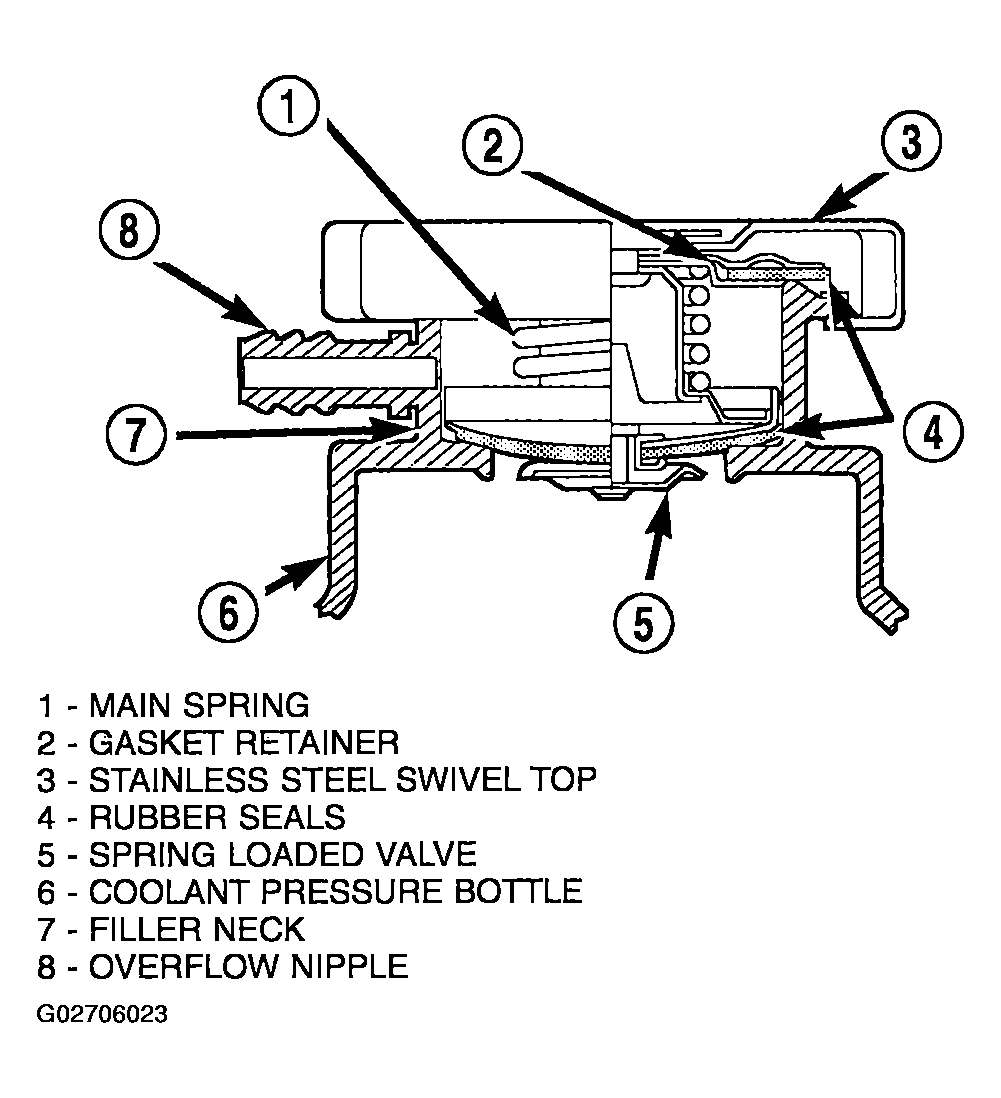

Fig 1: Identifying Cooling System Pressure Cap Components
G02706023Courtesy of DAIMLERCHRYSLER CORP.
