Engine Coolant Temperature Sensor: Removal: 2.4L
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

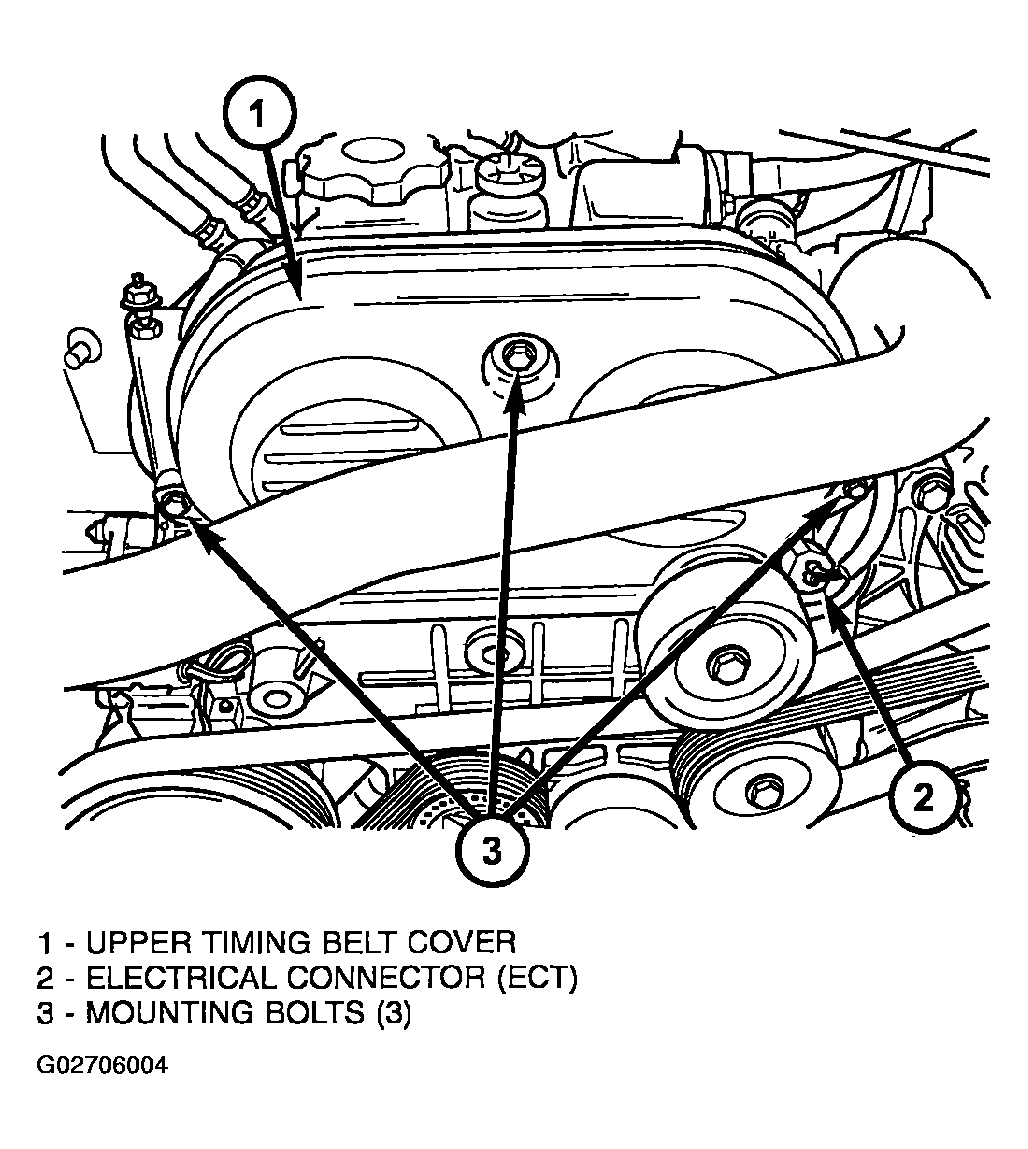

The Engine Coolant Temperature (ECT) sensor is installed into a water jacket at left front of cylinder head (Fig 1).
WARNING:
HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING. COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE COOLANT TEMPERATURE SENSOR.
- Partially drain cooling system.
- Disconnect electrical connector from sensor.
- Remove sensor from cylinder head.
