Front Check Valve: Installation
WARNING: This page is about a different car, the 2004 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
- Position the front check valve in the engine compartment.

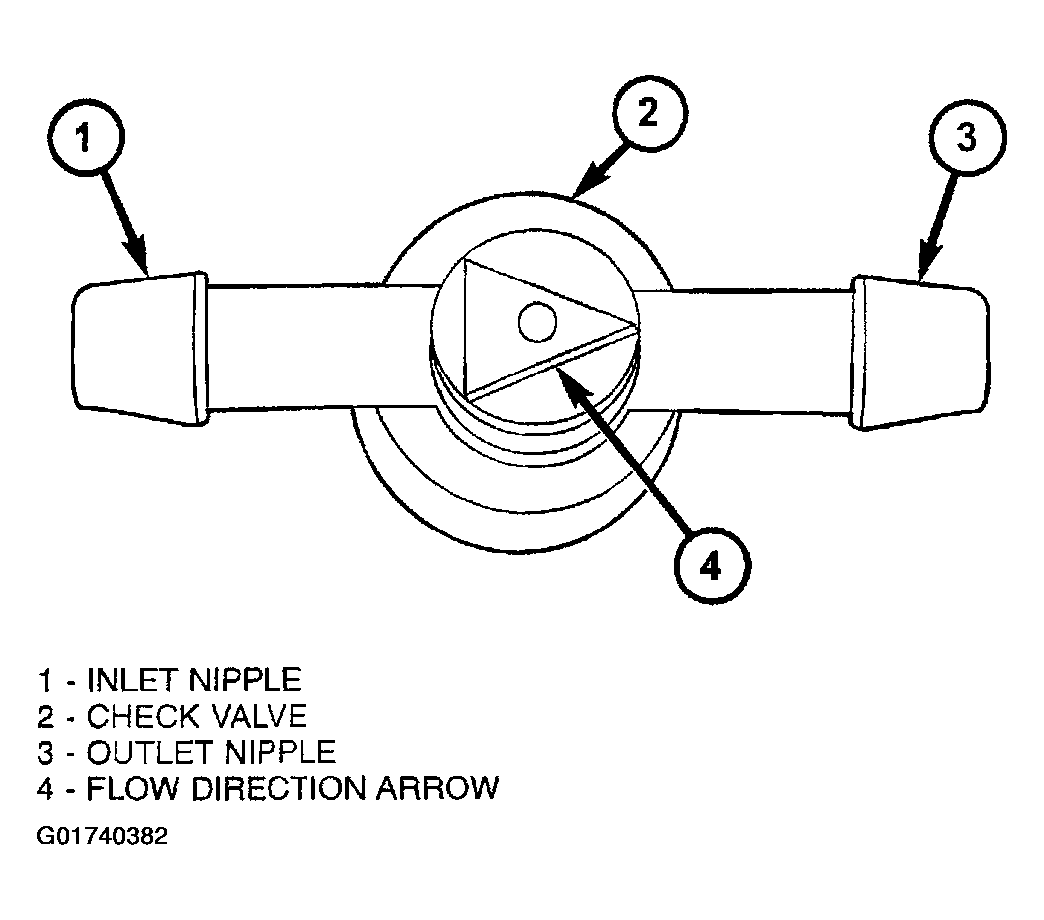

- With the directional arrow on the check valve pointed in the direction of the system flow, reconnect the washer supply hose from the reservoir to the barbed inlet nipple of the front check valve.
- Reconnect the washer supply hose from the front washer nozzle to the barbed outlet nipple of the front check valve.
- Check that the washer supply hoses are properly routed and are not pinched.
- Close and latch the hood.
