Specifications - Body Opening Dimensions

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

BODY OPENING DIMENSIONS SPECIFICATIONS

DESCRIPTION	FIGURE
WINDSHIELD AND FRONT DOOR OPENING	Fig 1
REAR DOOR AND QUARTER GLASS OPENING	Fig 2
LIFTGATE OPENING AND ENGINE COMPARTMENT	Fig 3

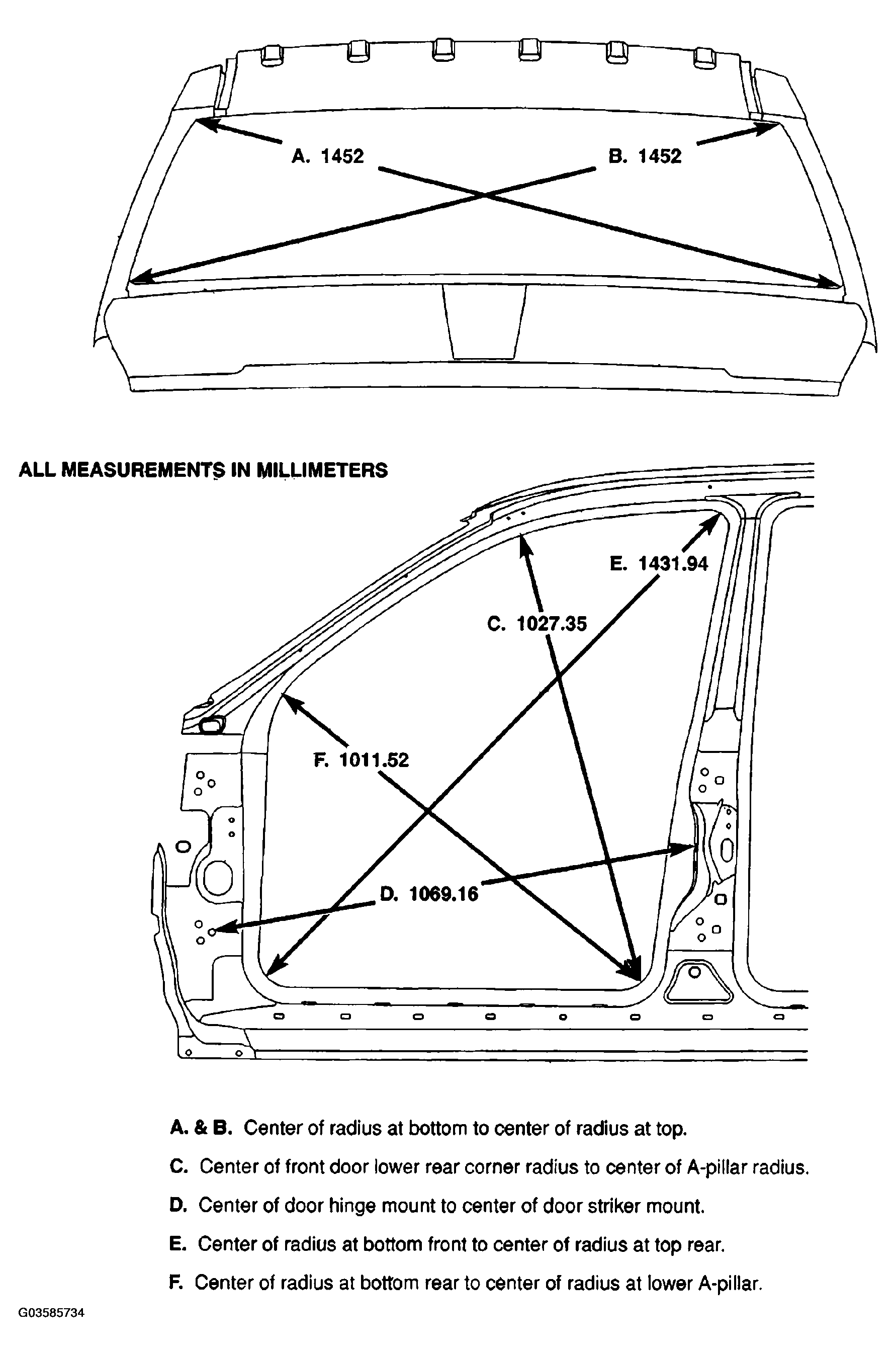

Fig 1: Identifying Windshield And Front Door Opening

Courtesy of DAIMLERCHRYSLER CORP.

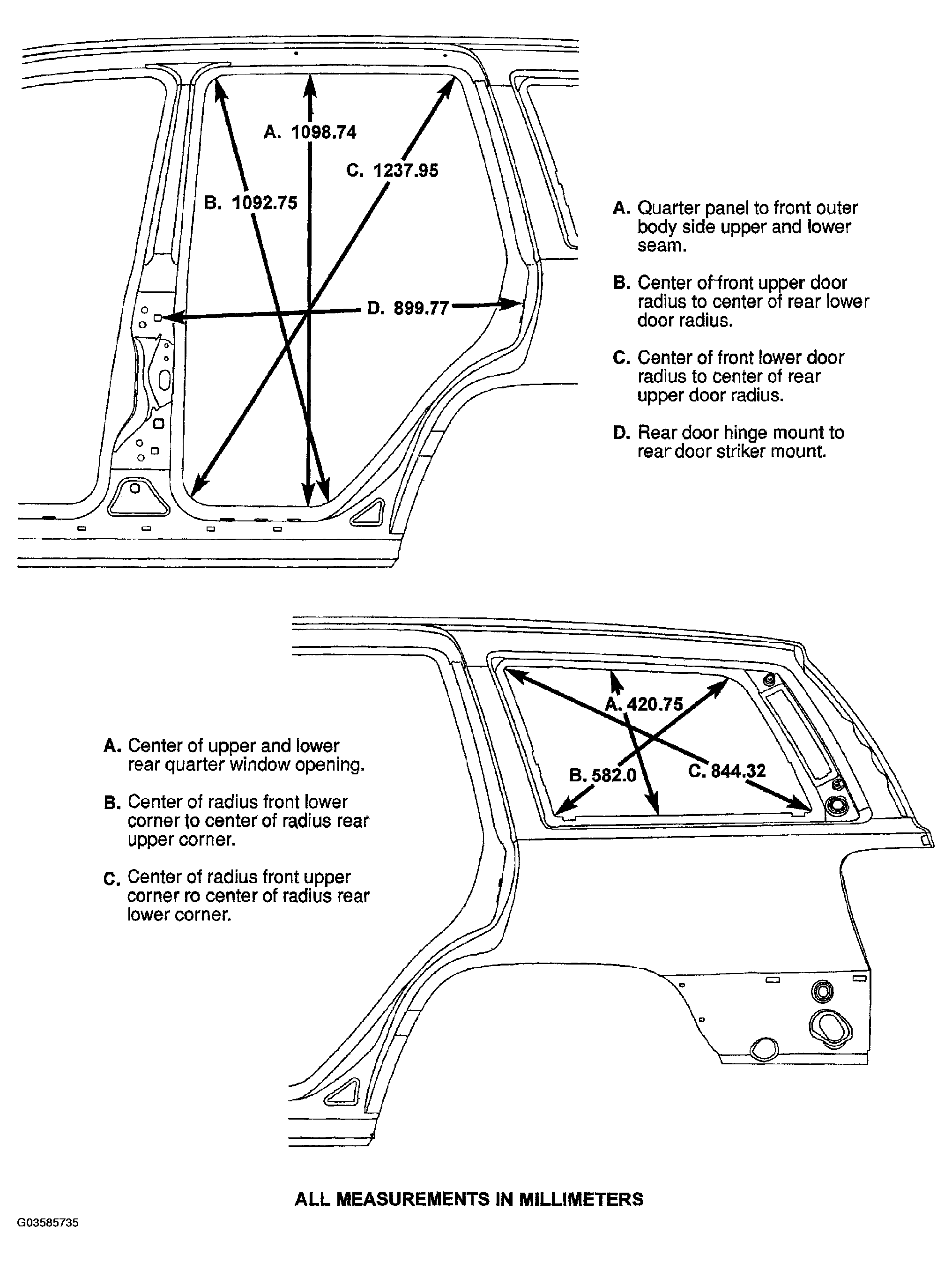

Fig 2: Identifying Rear Door And Quarter Glass Opening

Courtesy of DAIMLERCHRYSLER CORP.

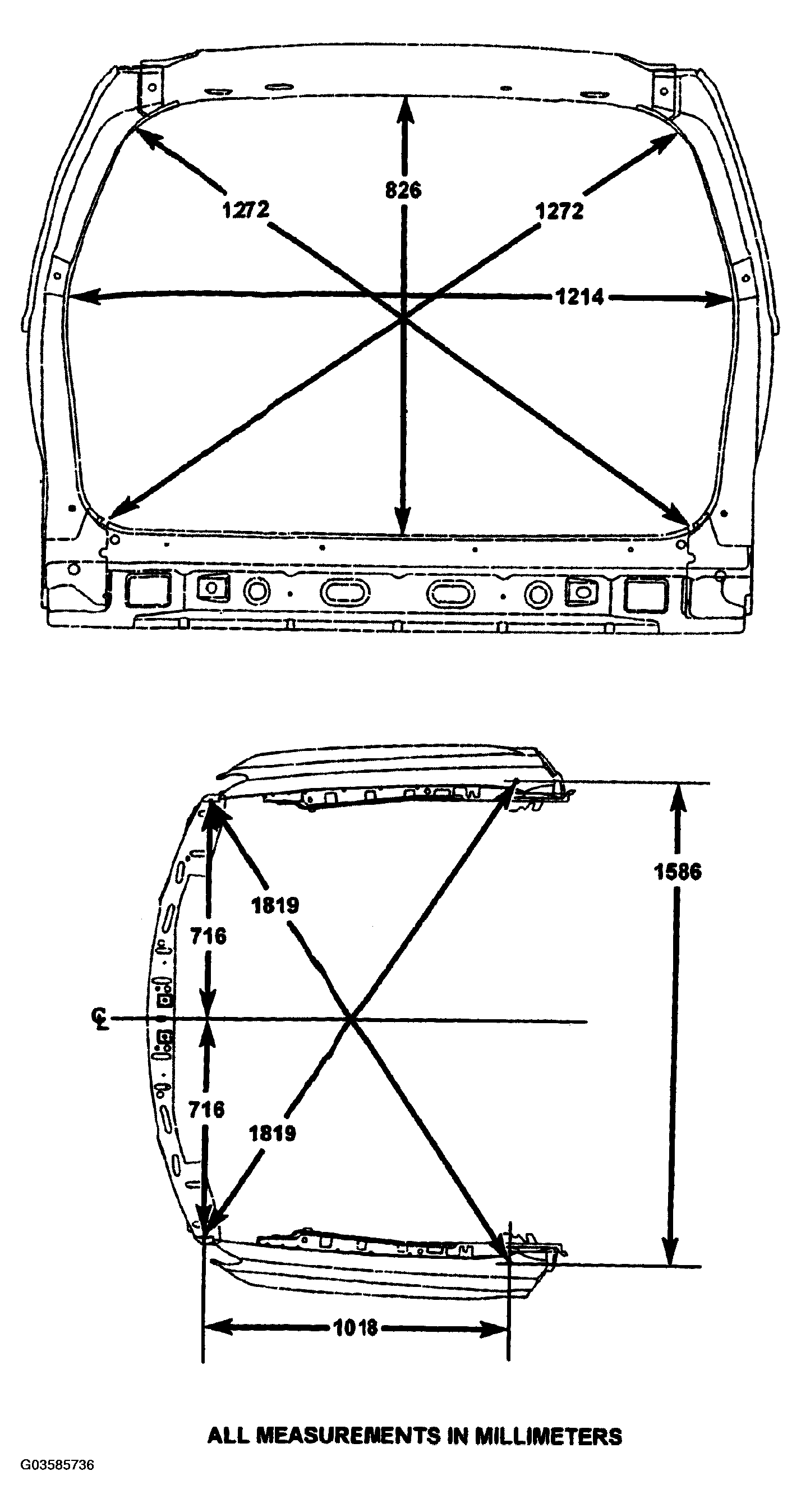

Fig 3: Identifying Liftgate Opening And Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.
