Rear View Mirror: Installation: Installation

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

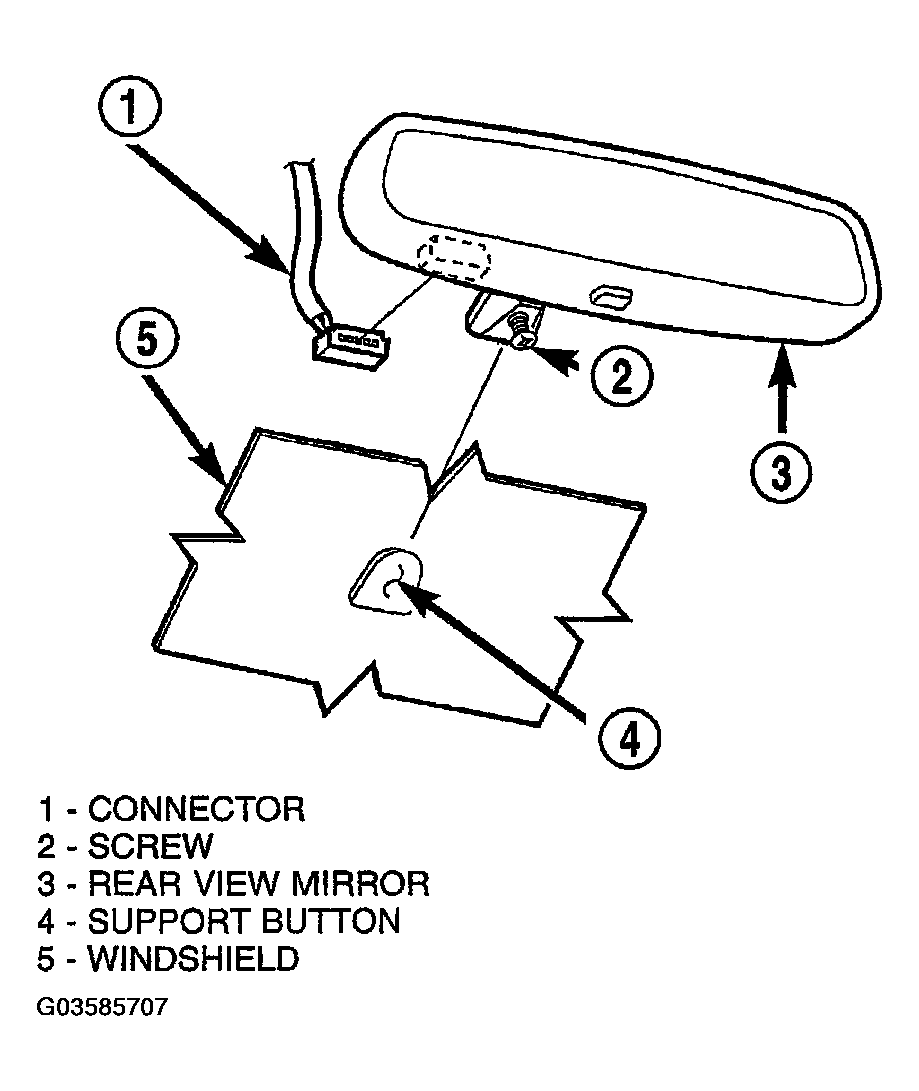

  1. Position the mirror base at the bracket and slide it downward onto the support bracket (Figure ).
  2. Tighten the setscrew 1 N.m (15 in. lbs.) torque.
  3. If equipped, connect mirror harness connector.
