Washer Fluid Level Switch: Installation
WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new rubber grommet seal into the washer fluid level switch mounting hole in the washer reservoir. Always use a new rubber grommet seal on the reservoir.

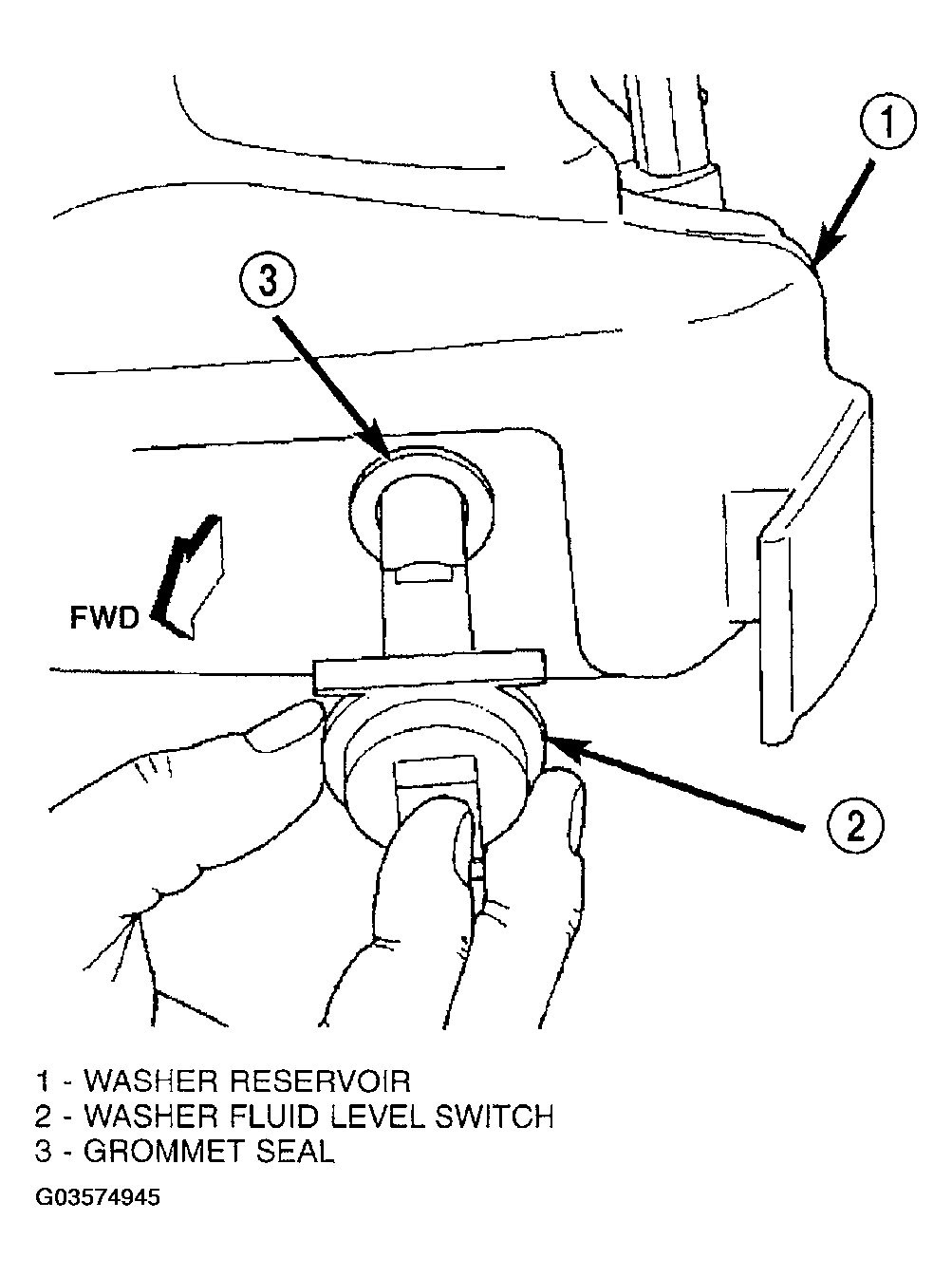

- Insert the float of the washer fluid level switch through the rubber grommet seal and into the washer reservoir (Figure ). The connector receptacle of the washer fluid level switch should be pointed downward.
- Using hand pressure, press firmly and evenly on the washer fluid level switch mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the washer reservoir mounting hole.
- Reconnect the left headlamp and dash wire harness connector for the washer fluid level switch to the switch connector receptacle.
- Reconnect the washer hose to the barbed outlet nipple of the front washer pump/motor unit.
- Install and tighten the two screws that secure the inboard mounting flange of the washer reservoir to the left inner wheel house. Tighten the screws to 7.4 N.m (66 in. lbs.).
- Reinstall the liner into the left front fender wheel house.
- Lower the vehicle.
- Install and tighten the one screw that secures the washer reservoir filler neck to the left inner fender shield. Tighten the screw to 7.4 N.m (66 in. lbs.).
- Fill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
- Reconnect the battery negative cable.
