Front Check Valve: Installation

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front check valve to the underside of the cowl plenum cover/grille panel. Be certain that the flow direction arrow molded into the front check valve body is oriented towards the front washer nozzles.

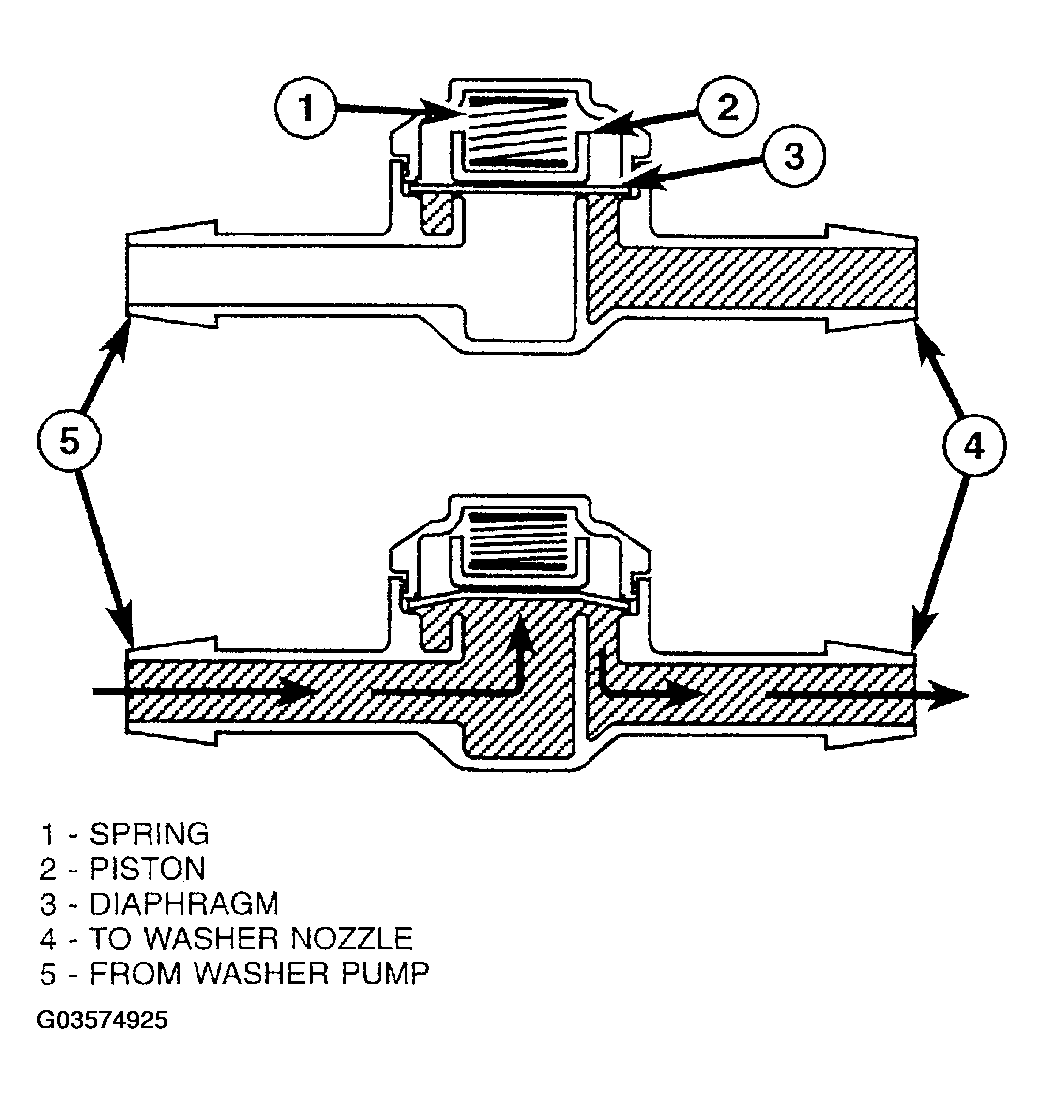

    Fig 1: Positioning Front Check Valve
    G03574925Courtesy of DAIMLERCHRYSLER CORP.

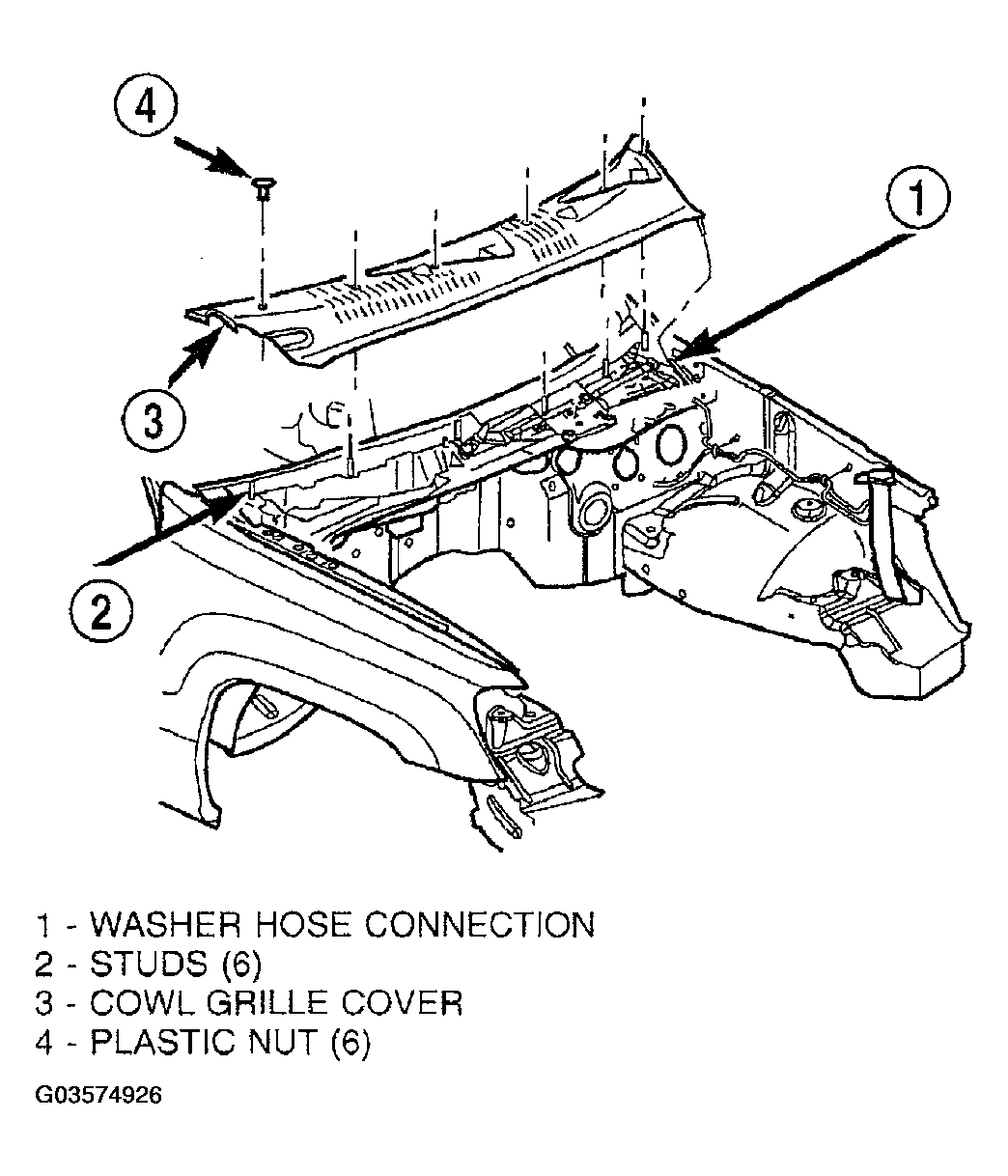

    Fig 2: Cowl Grille Cover Remove/Install
    G03574926Courtesy of DAIMLERCHRYSLER CORP.
  2. From the underside of the cowl plenum cover/grille panel, reconnect the cowl plenum and washer nozzle hoses to the three barbed nipples of the front check valve.
  3. Reinstall the washer hoses for the front washer nozzles into their routing clips on the underside of the cowl plenum cover/grille panel.
  4. Reinstall the cowl plenum cover/grille panel over the cowl plenum (Fig 2 ). (Refer to COWL GRILLE ).
  5. Reinstall both front wiper arms onto the wiper pivots. (Refer to FRONT WIPER ARM  ).
  6. Close and latch the hood.
