Stabilizer Wedge/Insert: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Open the swing gate.
- Using a grease pencil or equivalent, mark the location of the stabilizer cup and insert to aid installation.

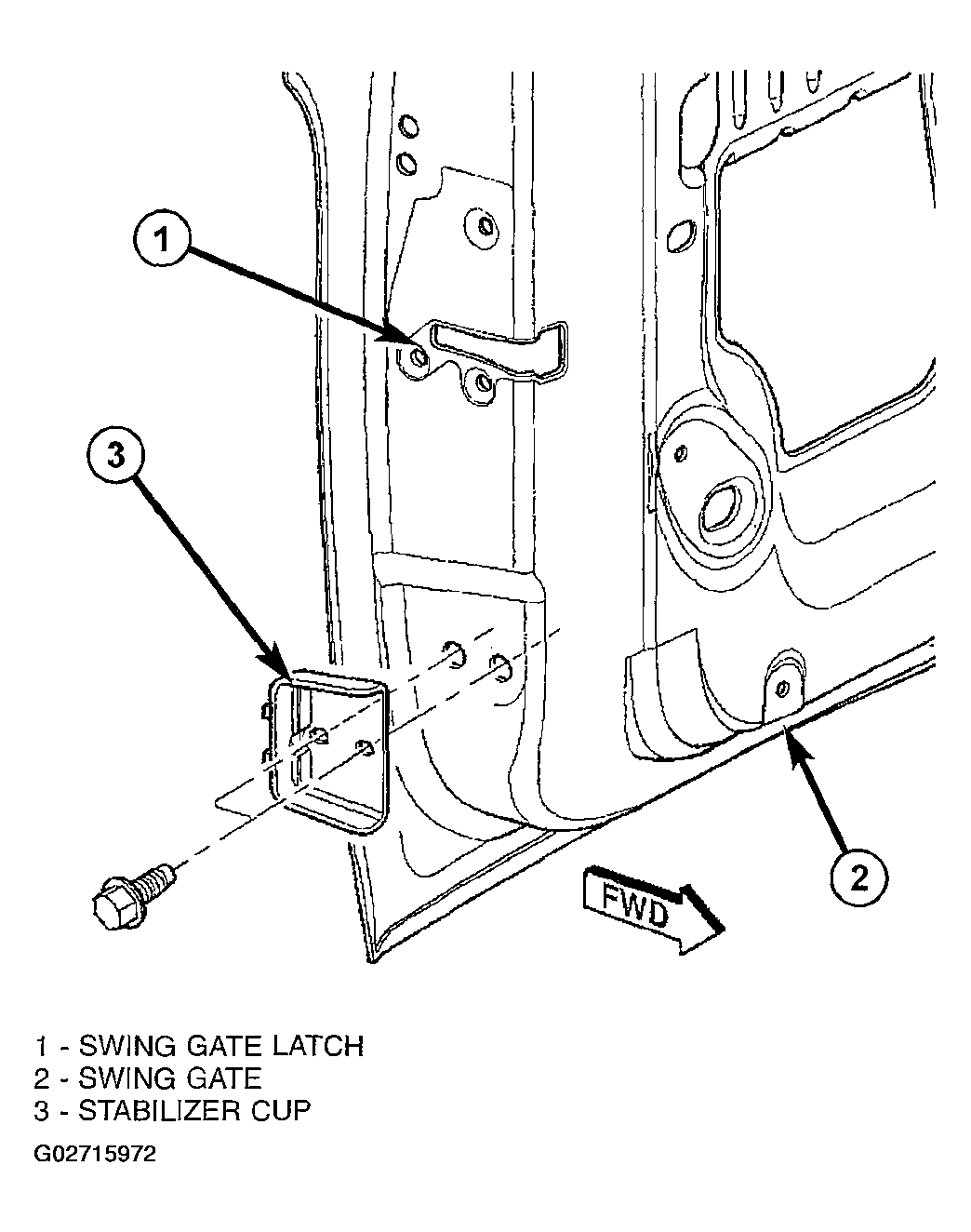

- Remove the bolts for the stabilizer cup and remove the cup. (Fig 1
)

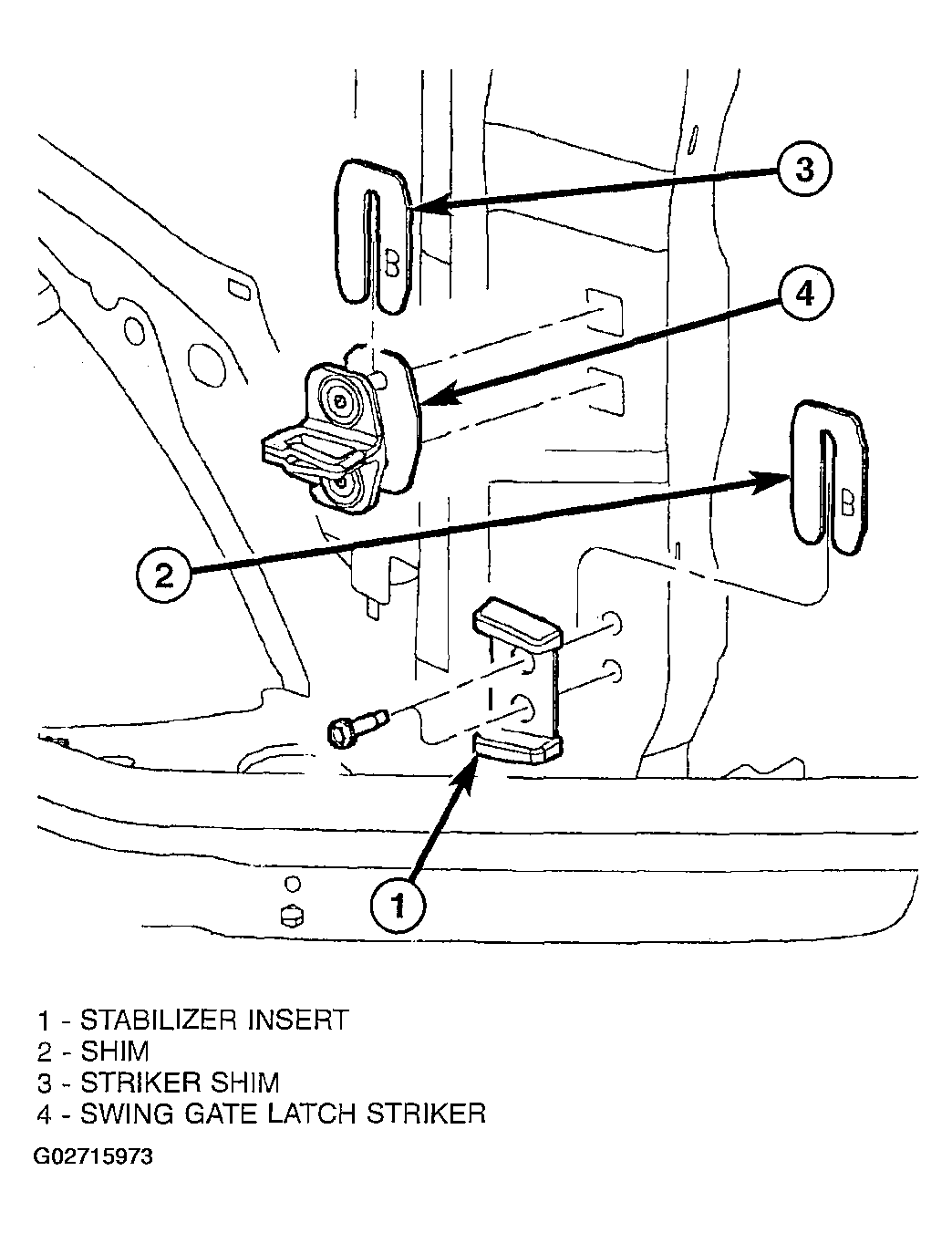

- Remove the bolts for the insert and remove the insert and shim, if equipped. (Fig 2
)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
