Section 105 (Swing Gate): Latch: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the trim panel and waterdam. (Refer to REMOVAL
).

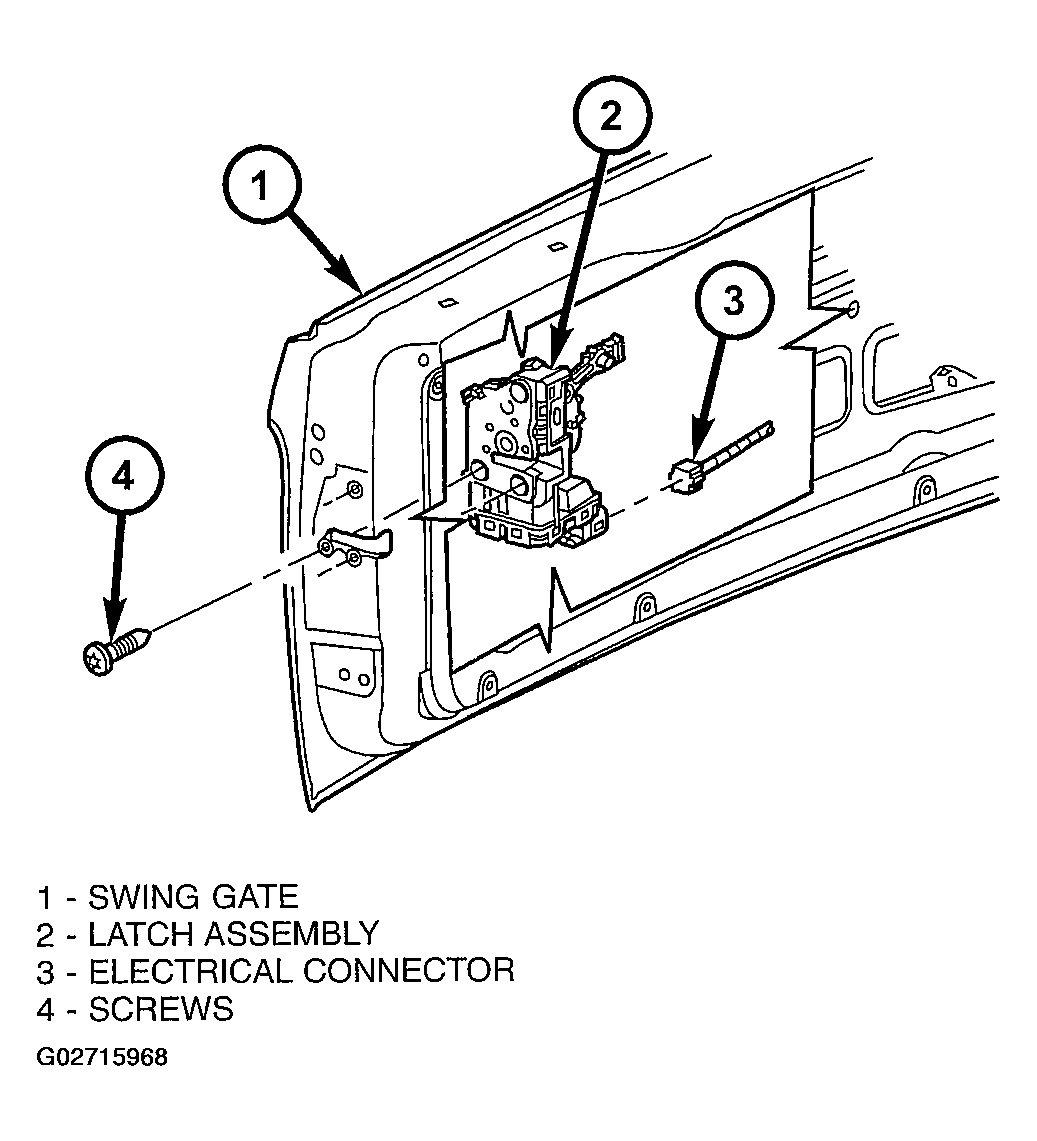

- Disconnect the electrical connector and actuator rod at the threaded clip. (Fig 1
)
- Remove the screws and remove the latch.
Courtesy of DAIMLERCHRYSLER CORP.
