Schematic Diagrams

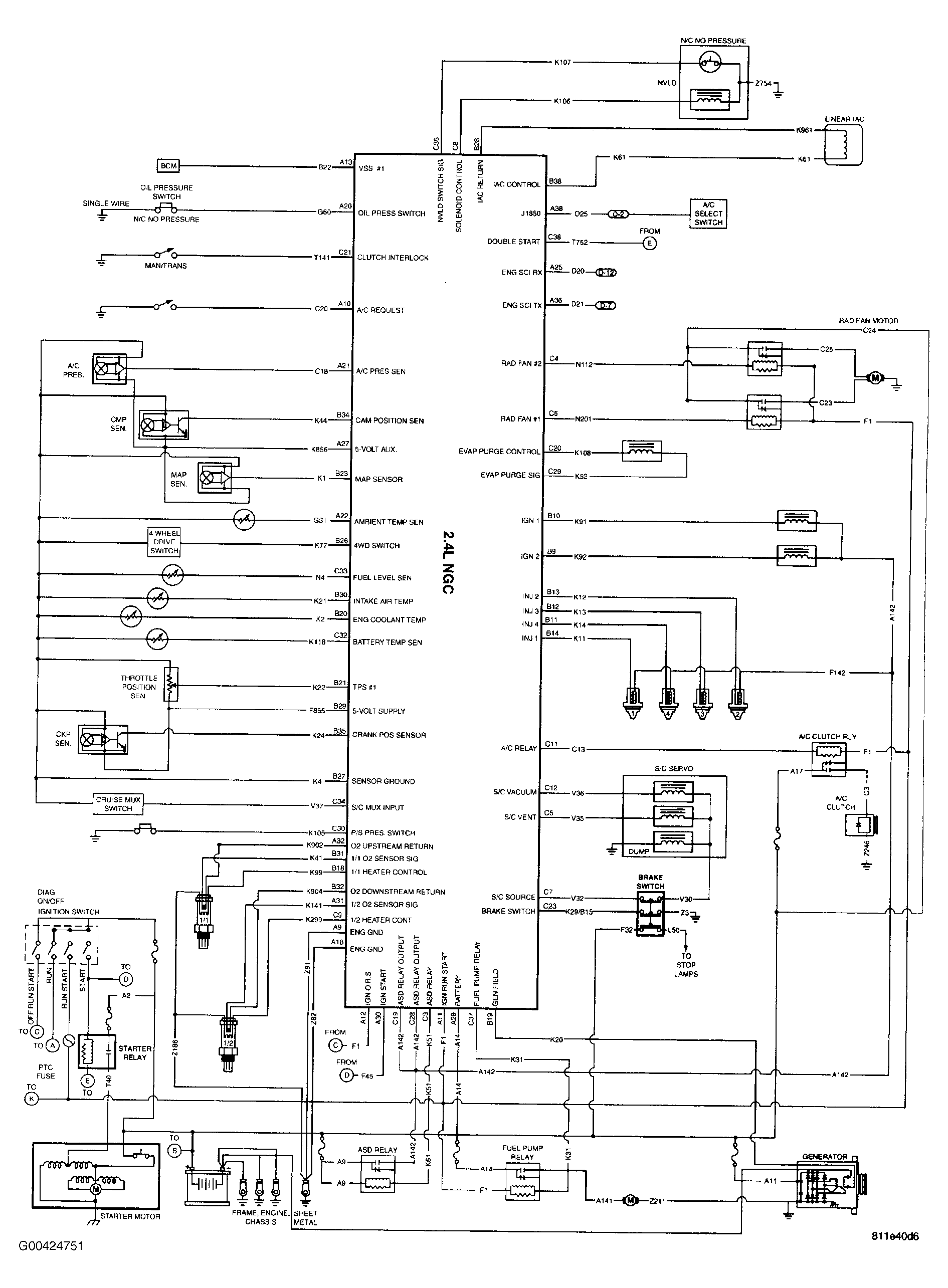

Fig 1: Schematic Diagram (2.4L NGC)

G00424751

Courtesy of CHRYSLER CORP.

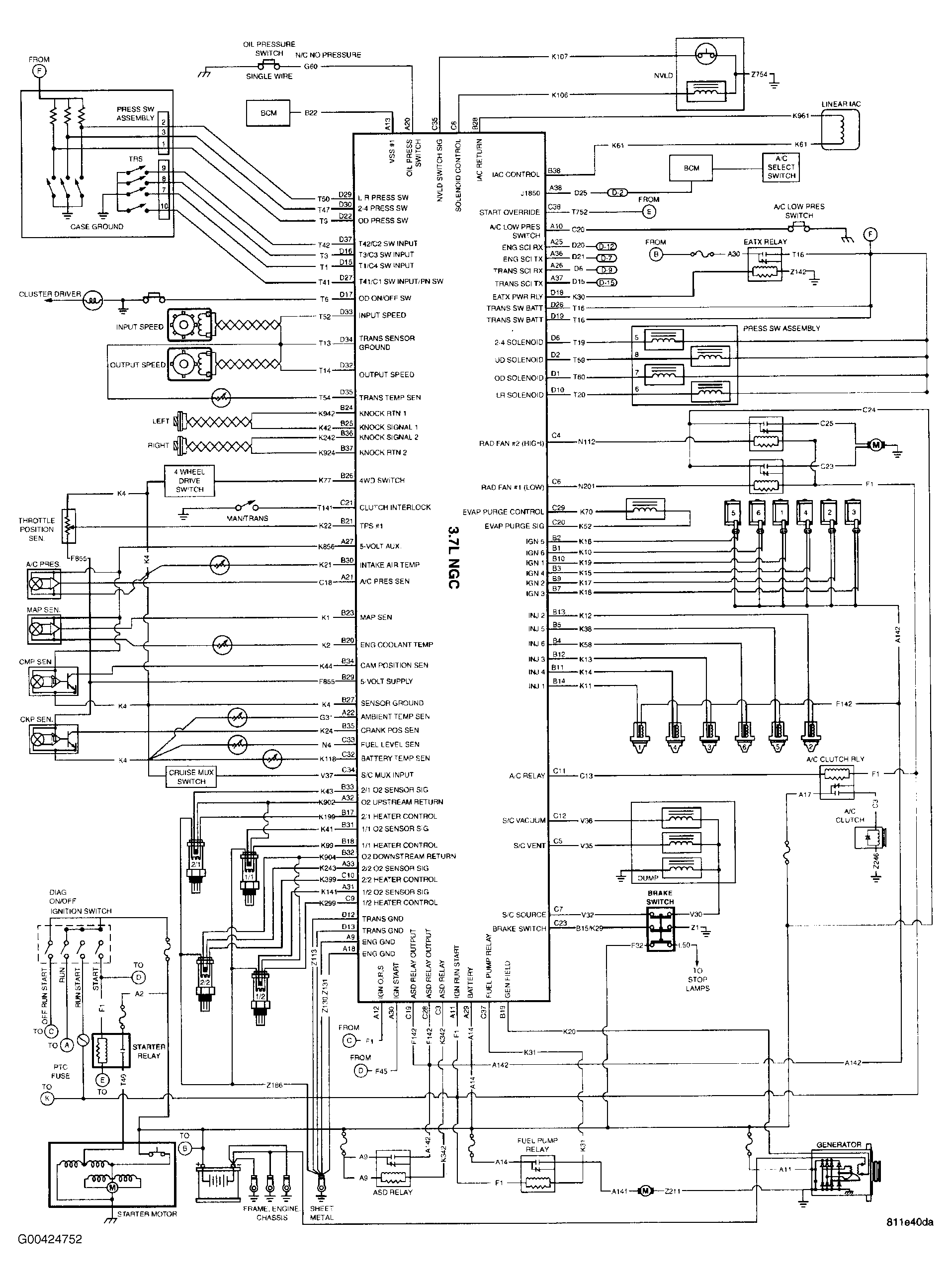

Fig 2: Schematic Diagram (3.7L NGC)

G00424752

Courtesy of CHRYSLER CORP.

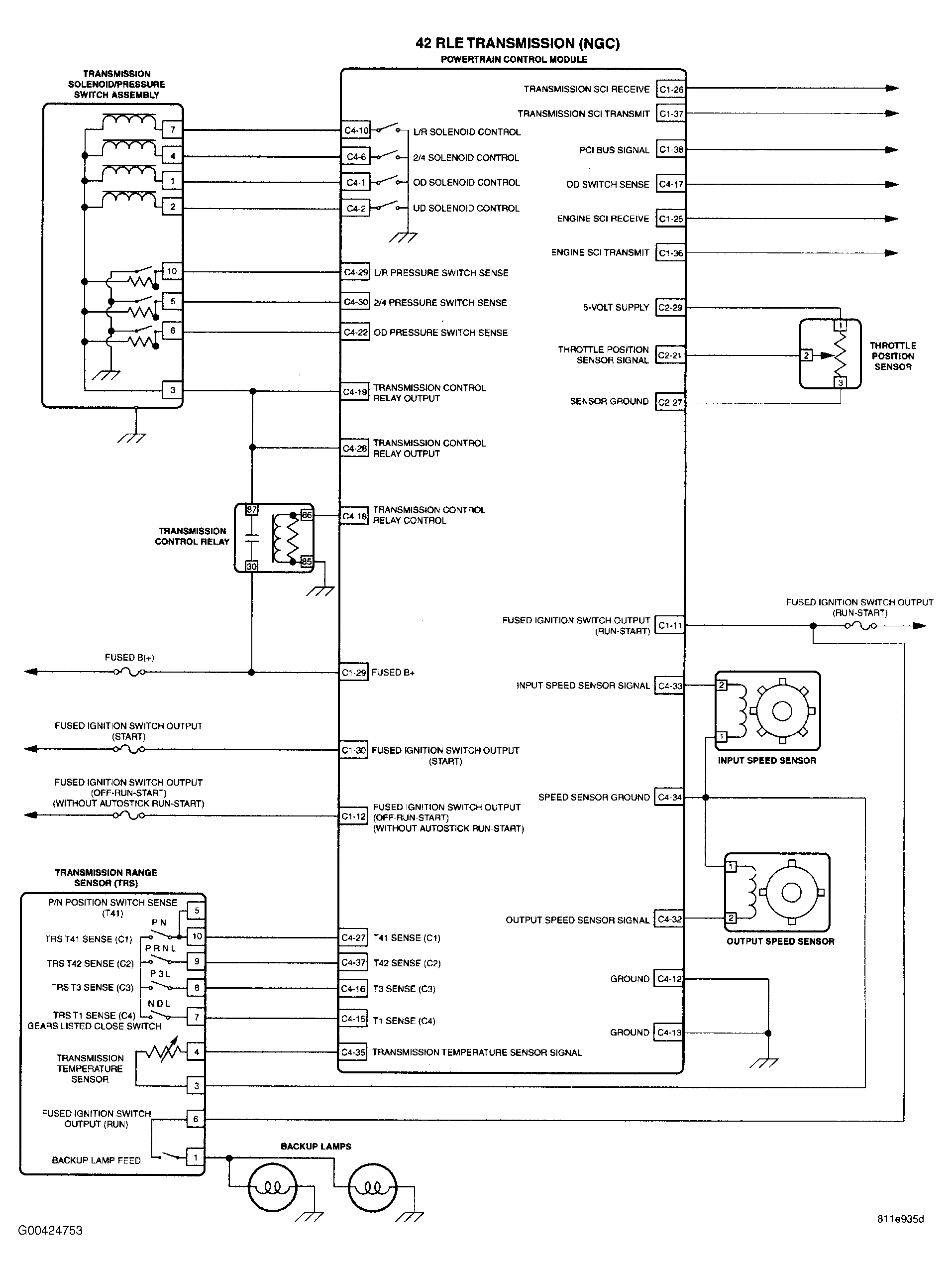

Fig 3: Schematic Diagram (42RLE)

G00424753

Courtesy of CHRYSLER CORP.
