Powertrain Verifications Test VER-1

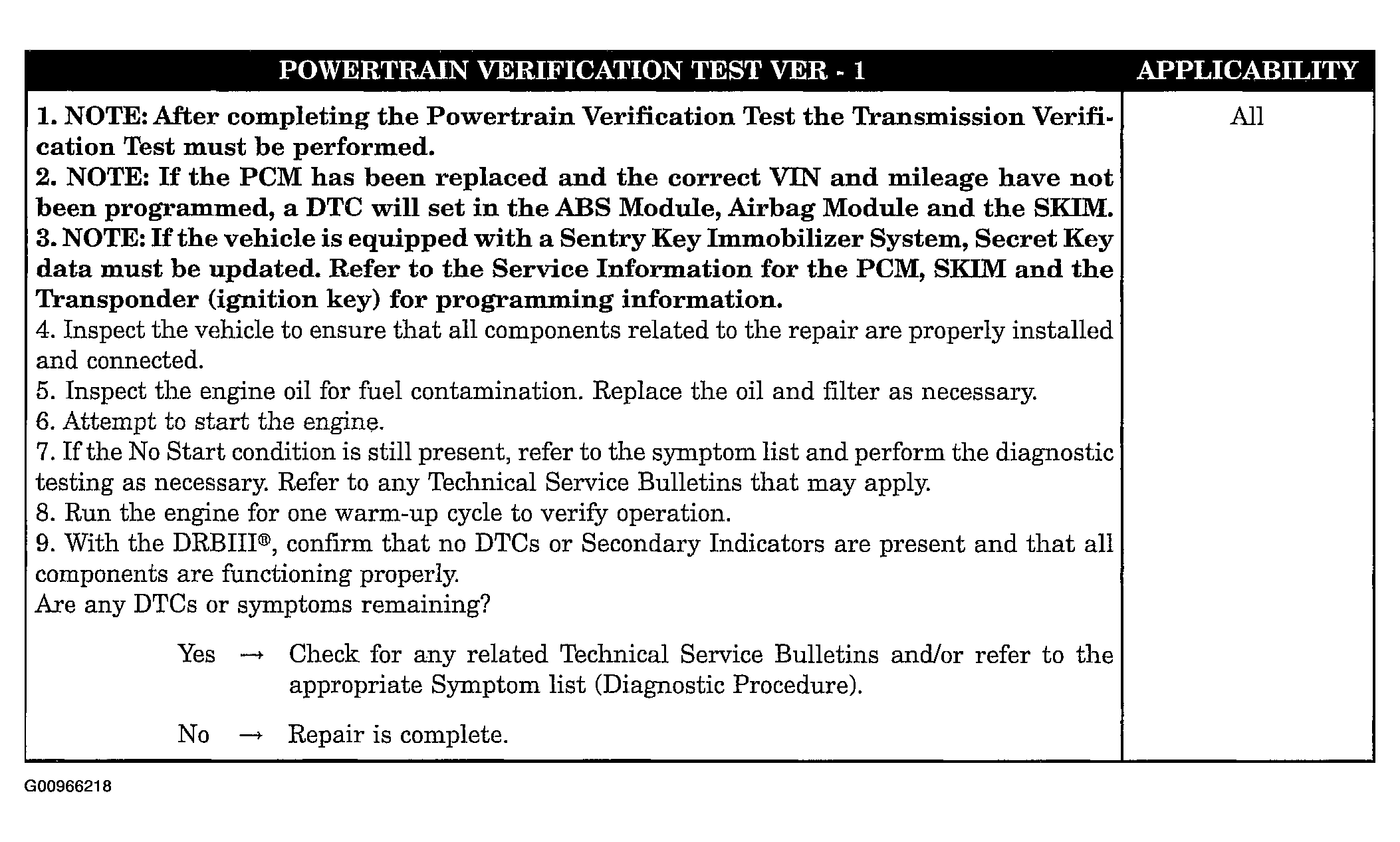

Fig 1: Powertrain Verification Test VER-1

G00966218

Courtesy of DAIMLERCHRYSLER CORP.

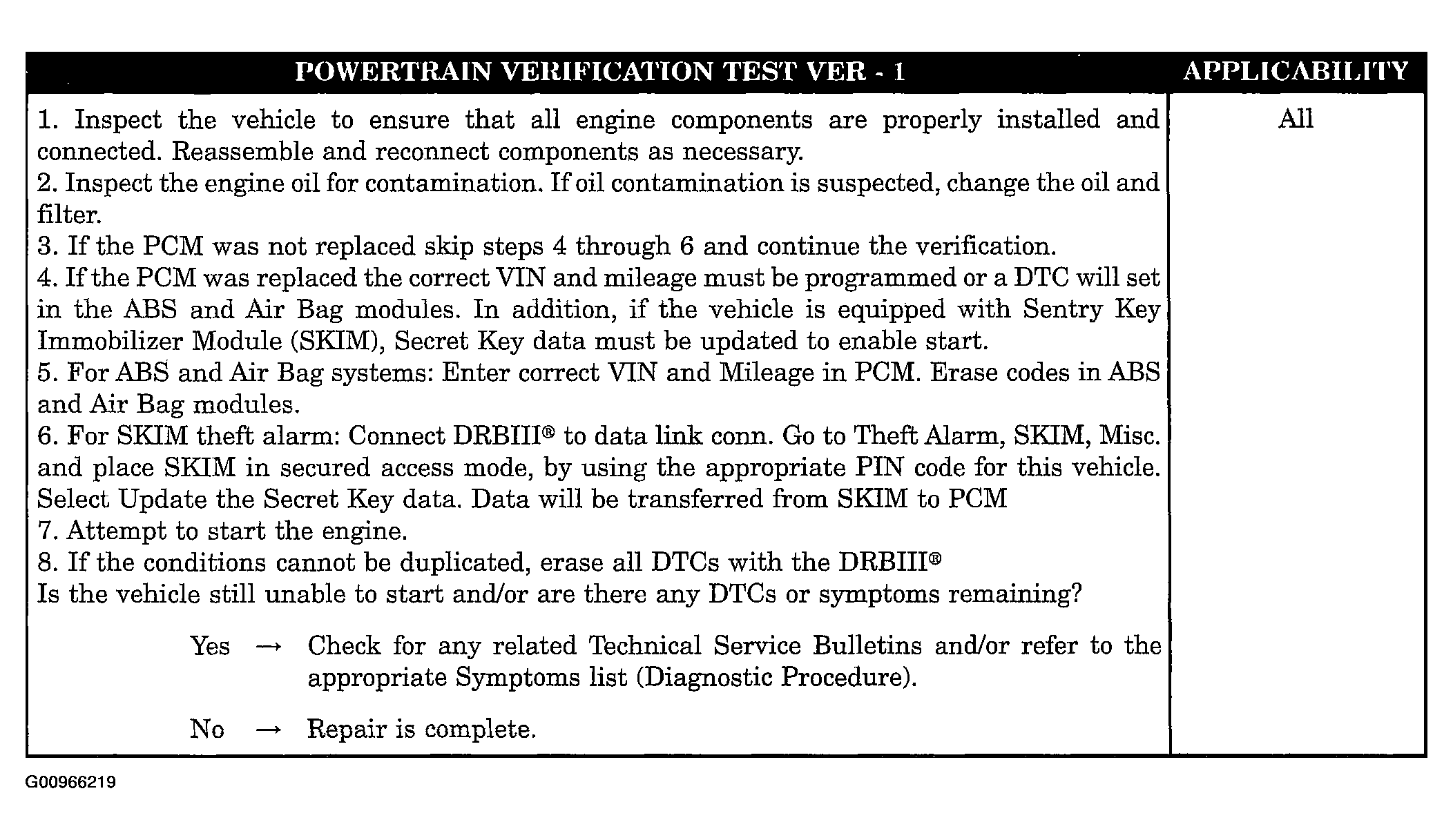

Fig 1: Powertrain Verification Test VER-1

G00966219

Courtesy of DAIMLERCHRYSLER CORP.
