A/C-Heater Control C2 - 12 Way Connector End View

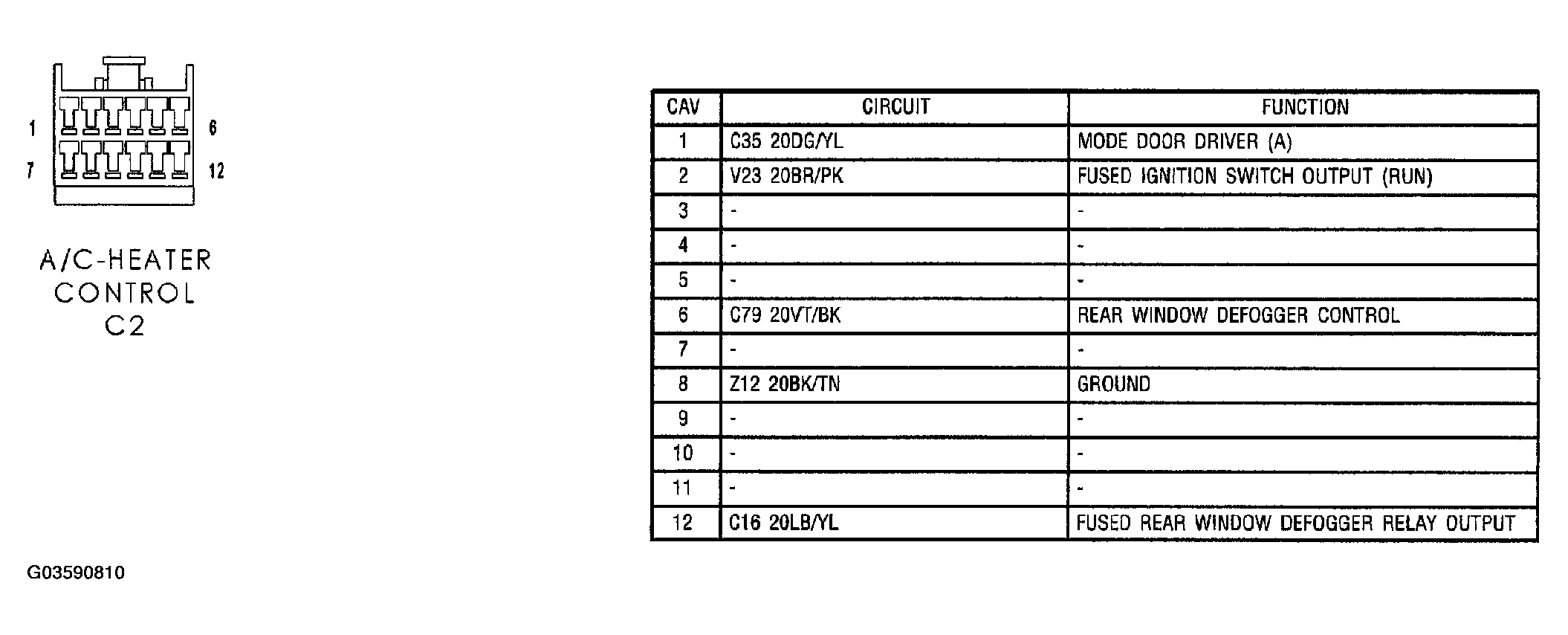

Fig 1: A/C Heater Control Connector End View (C2)

G03590810

Courtesy of DAIMLERCHRYSLER CORP.
