Alignment Specifications

For wheel alignment specifications, see Fig 1 .

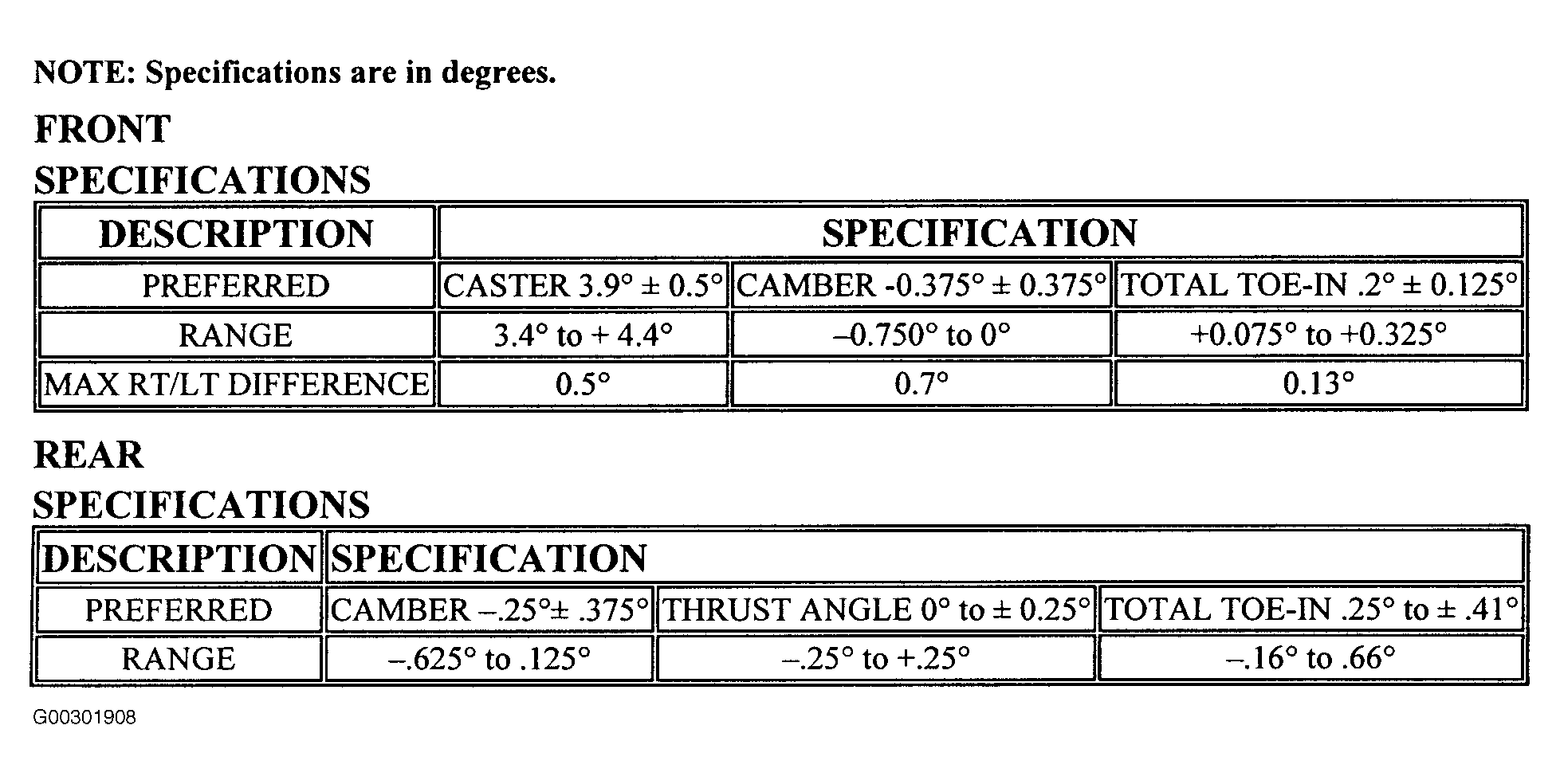

Fig 1: Wheel Alignment Specifications

G00301908

Courtesy of DAIMLERCHRYSLER CORPORATION
