Section 150 (Power Liftgate System): Liftgate: Removal
WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not disconnect the support rod cylinders with the liftgate closed. The support rod pistons are operated by high pressure gas. This pressure could cause damage and/or personal injury if they are removed while the pistons are compressed.
- Open and support the liftgate.
- Remove the trim panel. (Refer to TRIM PANEL )
- Remove the prop rods from the liftgate.
- Disconnect the wire harnesses and the washer hose.
- Using a grease pencil or equivalent, mark the hinge location.

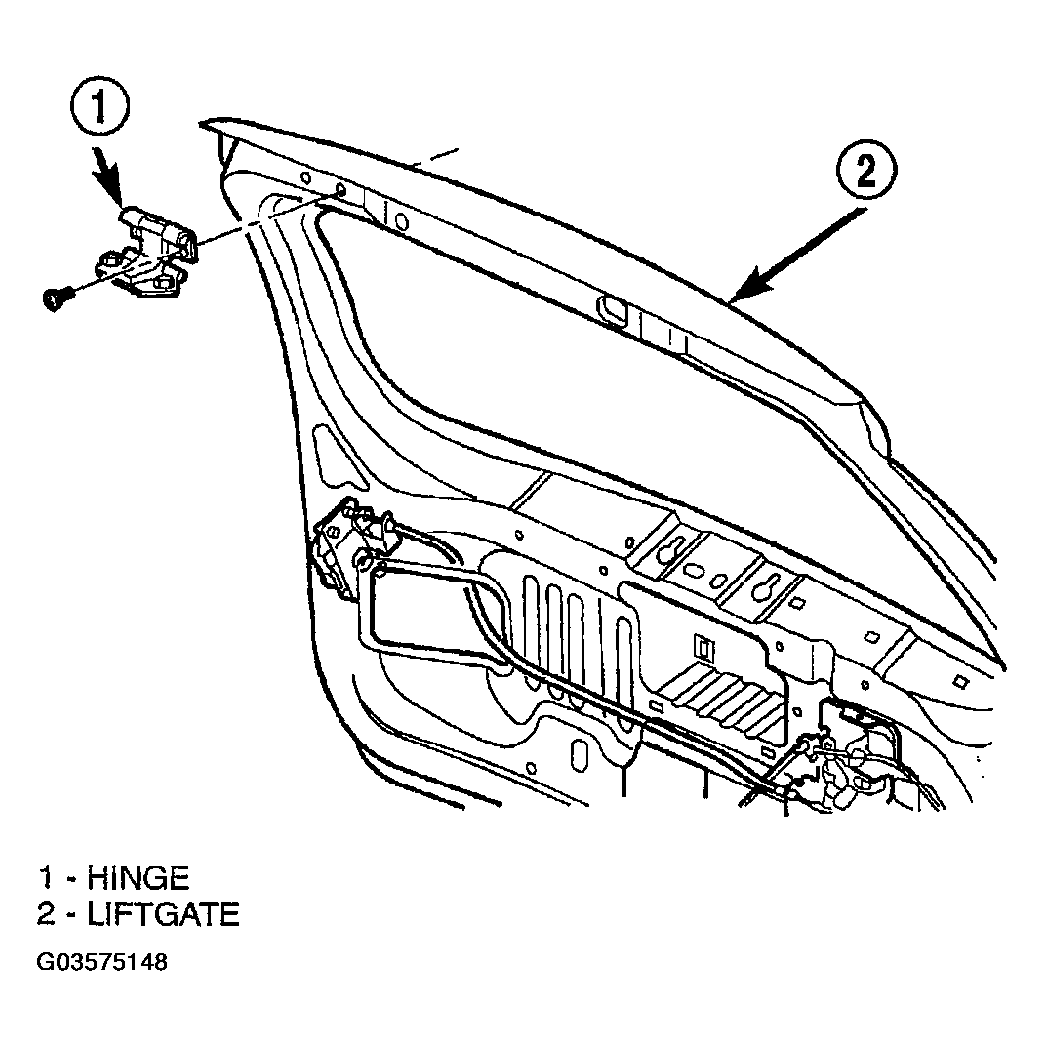

- Remove the liftgate to hinge screws and remove liftgate from vehicle. (Fig 1 )
