Home >> Jeep >> 2004 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Diagnostic Information And Procedures >> Transmission - 42RLE - Diagnostic Tests >> DTC P1694: Bus Communication With Engine Module >> Testing

DTC P1694: Bus Communication With Engine Module: Testing

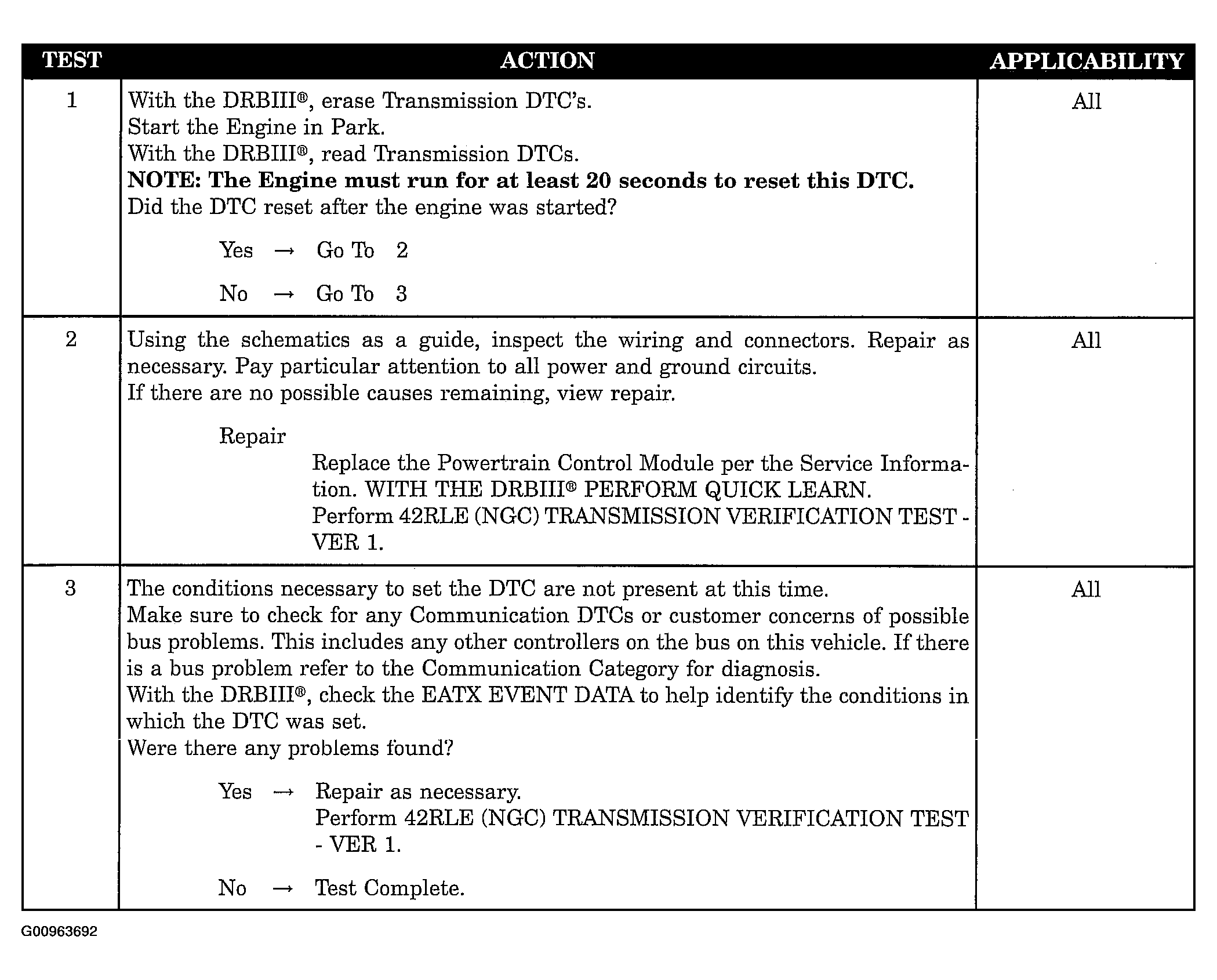

Fig 1: Testing: DTC P1694: BUS Communication With Engine Module

G00963692

Courtesy of DAIMLERCHRYSLER CORP.
