DTC U0101: No Bus Message From Trans Control Module: Testing

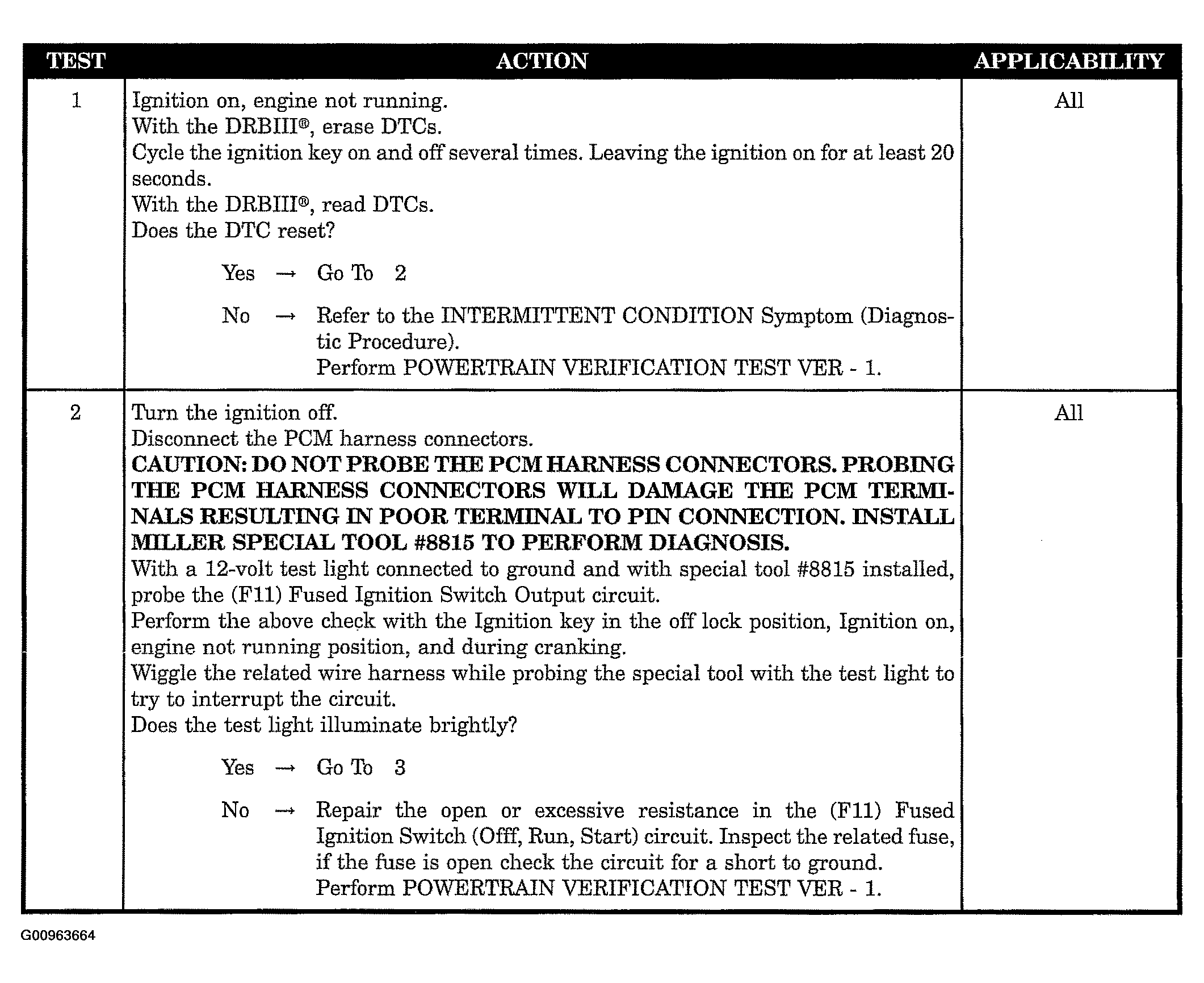

Fig 1: Testing DTC U0101: No BUS Message From Trans Control Module (1 Of 2)
G00963664Courtesy of DAIMLERCHRYSLER CORP.

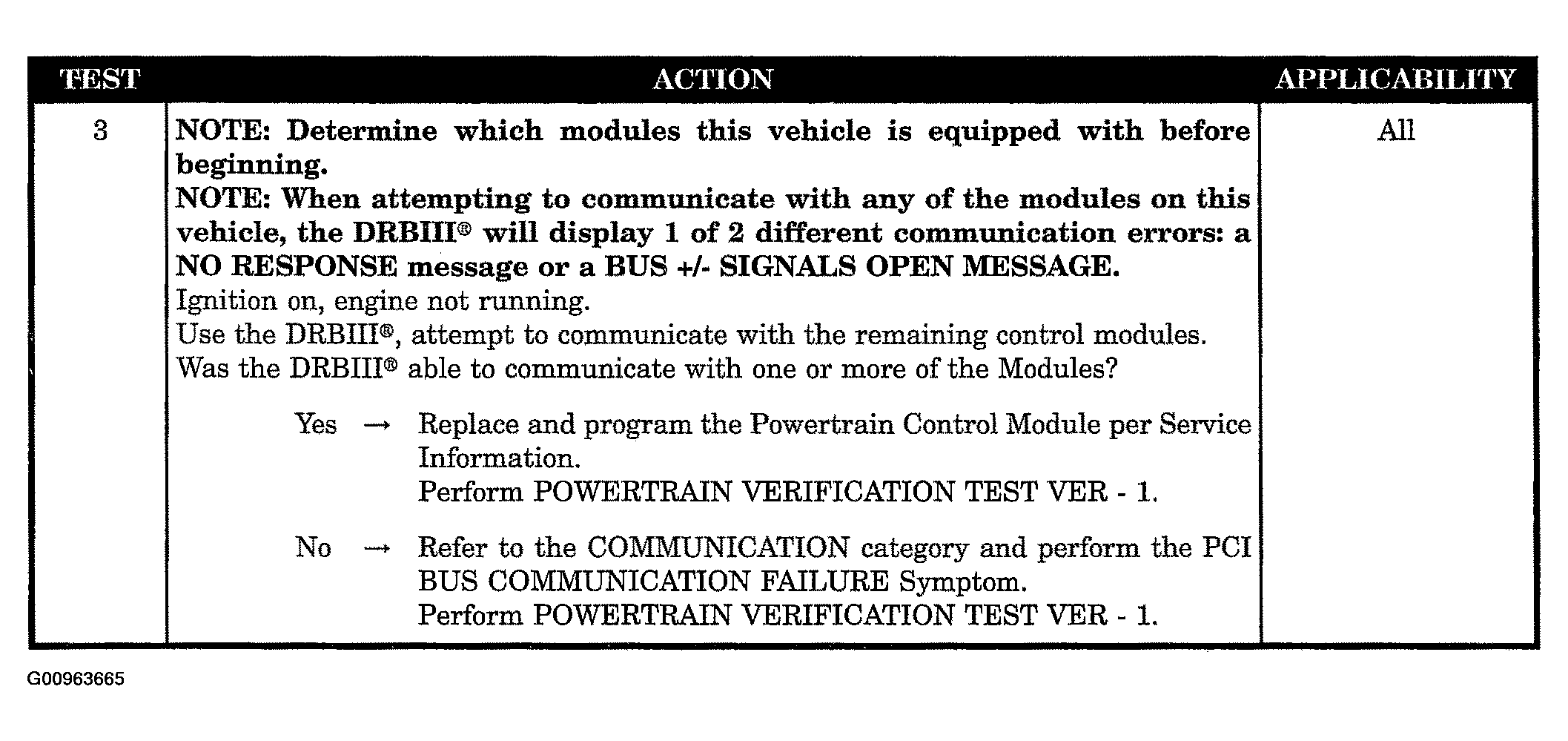

Fig 2: Testing DTC U0101: No BUS Message From Trans Control Module (1 Of 2)
G00963665Courtesy of DAIMLERCHRYSLER CORP.
