Fuel Injector: Description

An individual fuel injector is used for each individual cylinder.

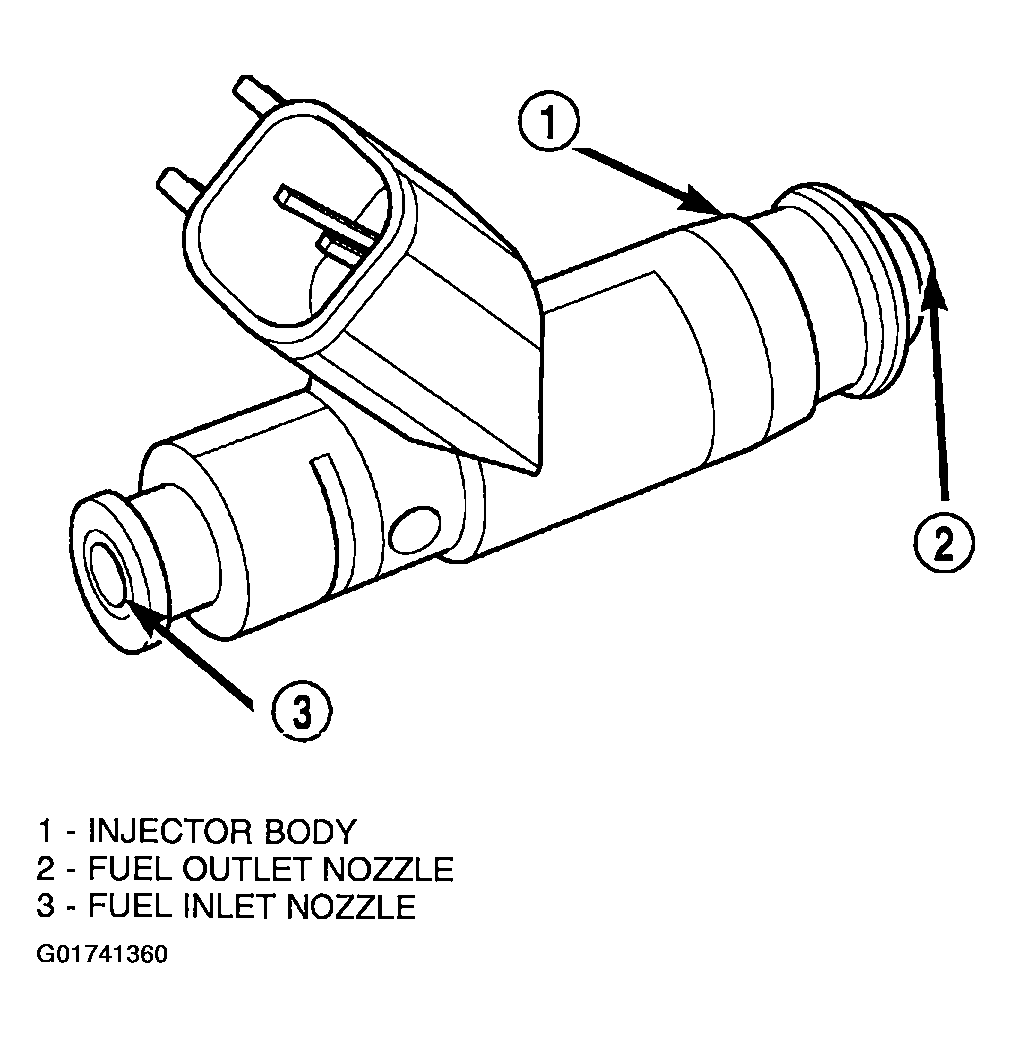

Fig 1: Identifying Fuel Injector - Typical
G01741360Courtesy of DAIMLERCHRYSLER CORP.
