Idle Air Control Motor: Removal: 2.4L

The Idle Air Control (IAC) motor is located on the rear side of the throttle body.

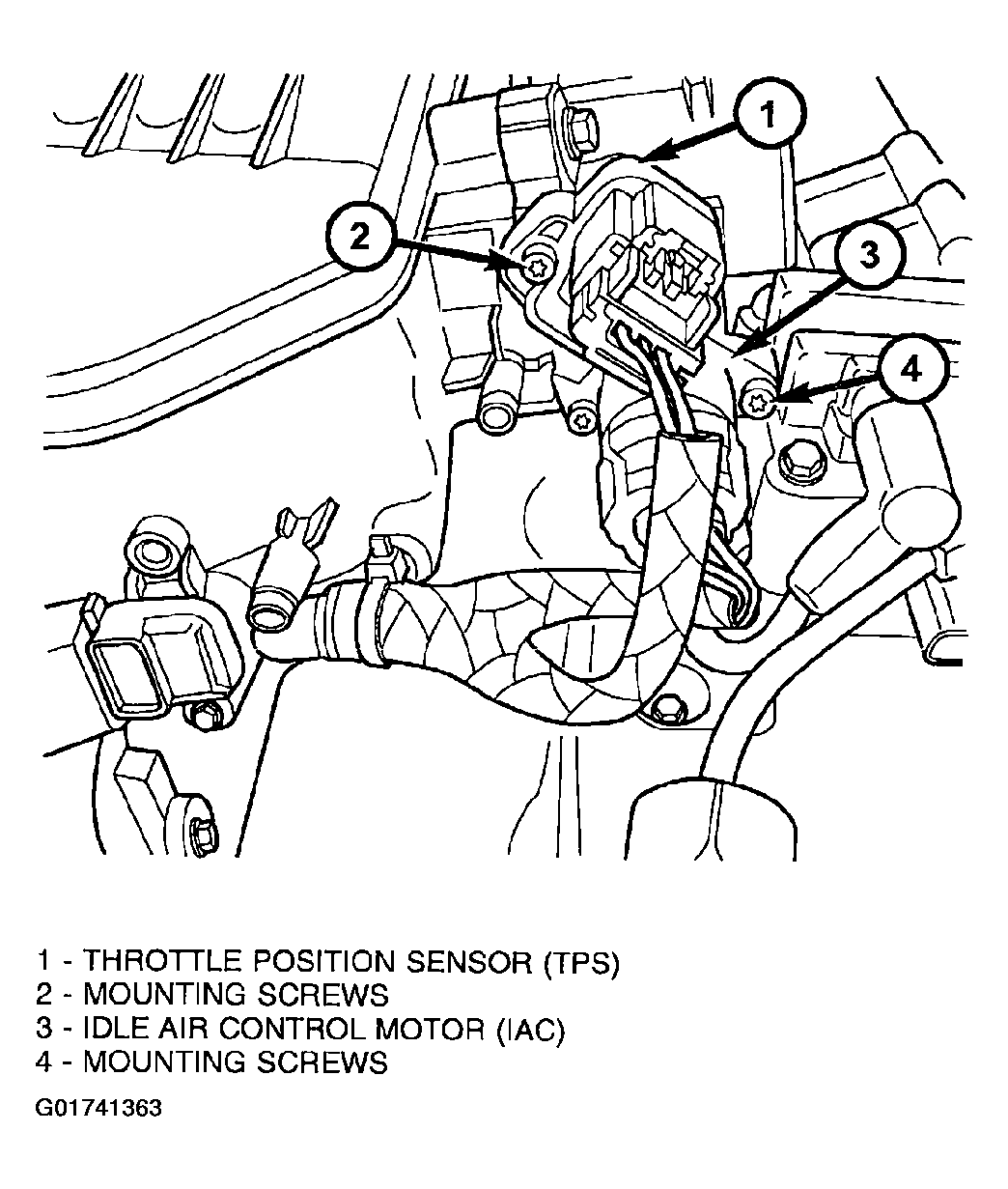

Fig 1: Identifying TPS/IAC Motor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical connector from IAC motor.
2. Remove two mounting bolts (screws).
3. Remove IAC motor from throttle body.
