Idle Air Control Motor: Installation: 3.7L

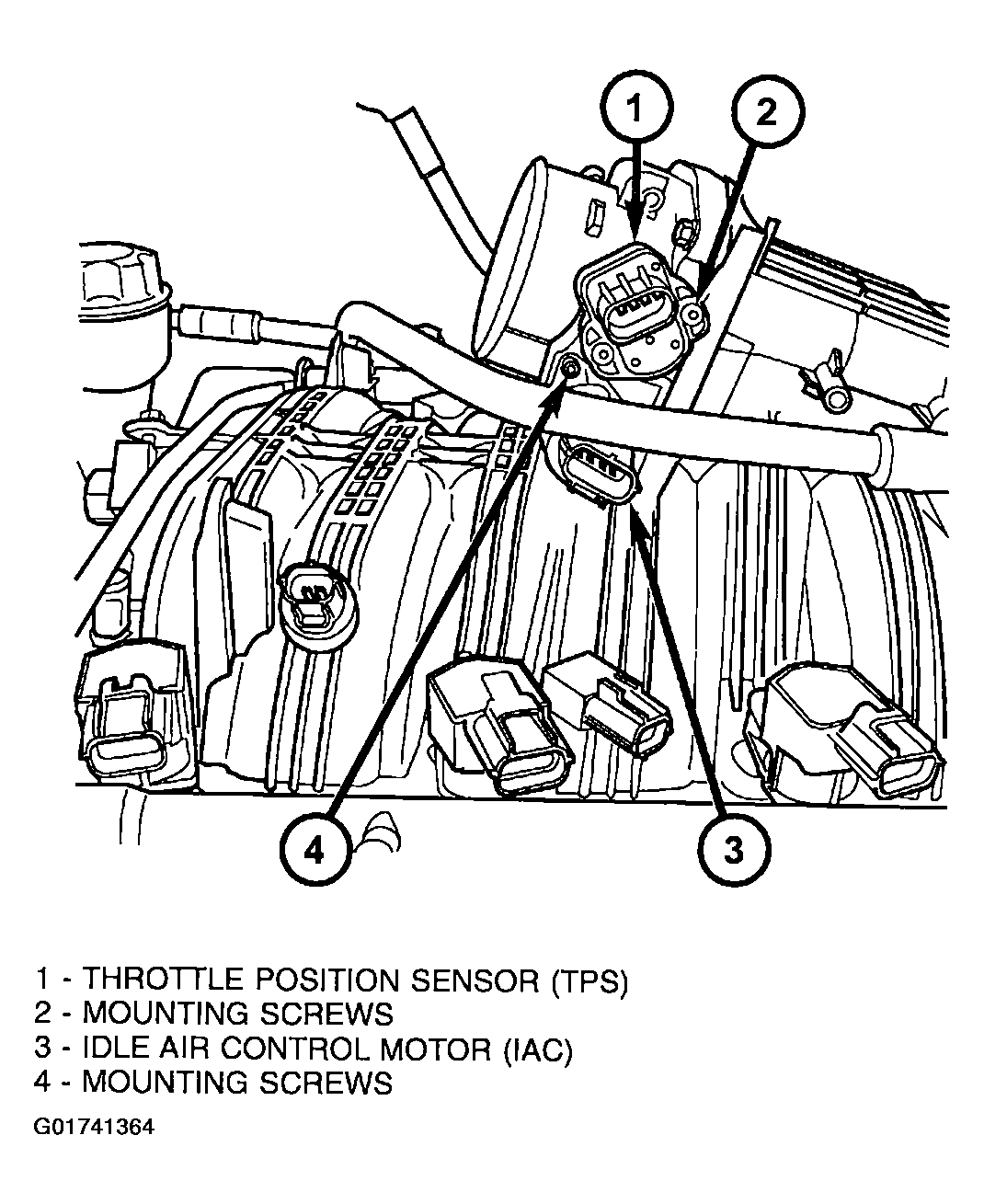

The Idle Air Control (IAC) motor is located on the side of the throttle body. See Figure.

1. Install IAC motor to throttle body.
2. Install and tighten two mounting bolts (screws) to 7 N.m (60 in. lbs.) torque.
3. Install electrical connector.
