Fuel Pressure Regulator: Removal

The fuel pressure regulator is located in the fuel tank. It is attached to the bottom of the upper section of the fuel pump module with a quick-connect fitting. The fuel pump module is supplied in 2 sections (upper and lower). To replace the pressure regulator, the bottom section of the fuel pump module must be replaced.

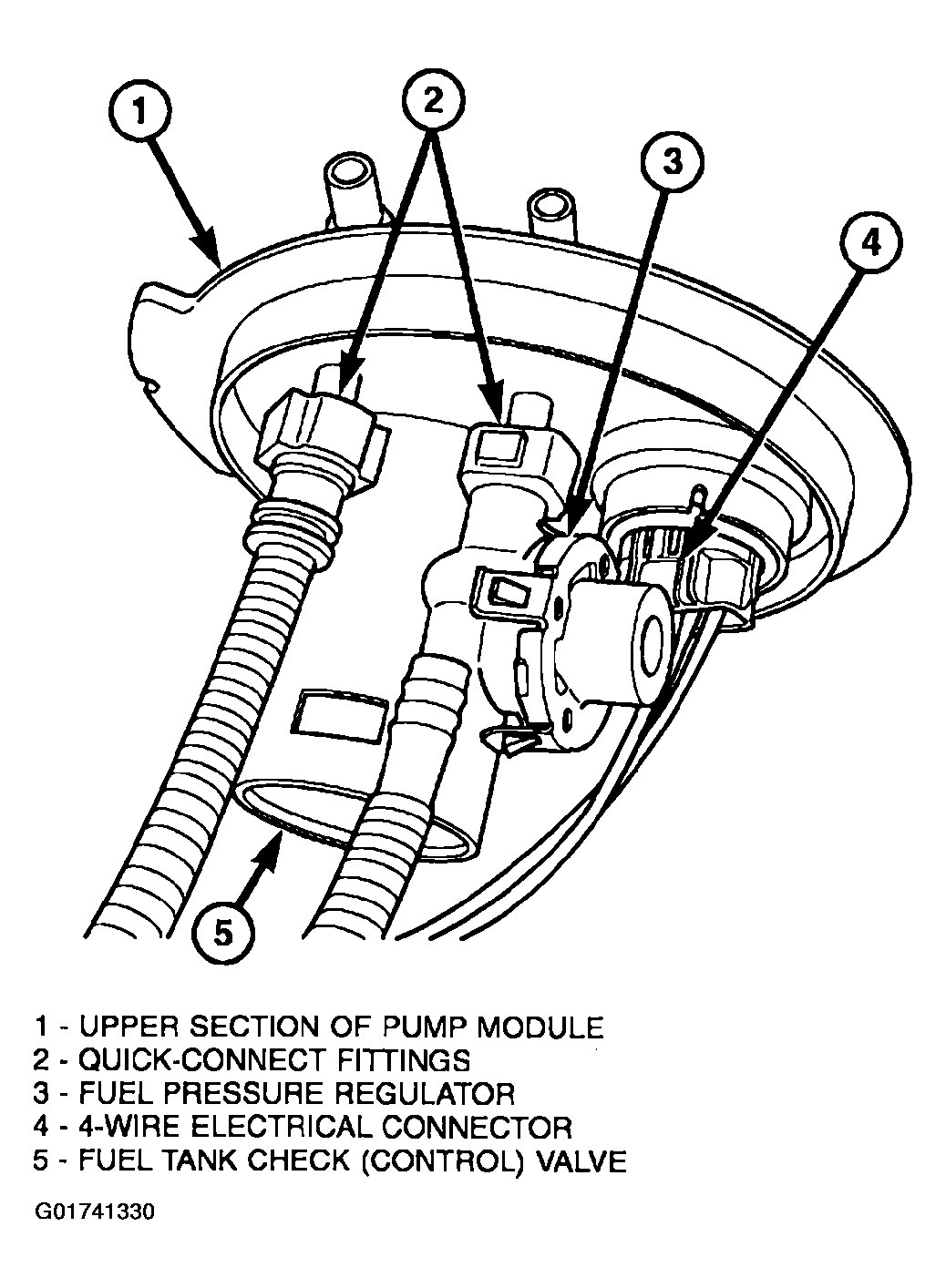

Fig 1: Identifying Fuel Pressure Regulator/Sending Unit Electrical Connector

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove upper and lower sections of fuel pump module from fuel tank. Refer to FUEL PUMP MODULE .
2. Replace lower section of fuel pump module (includes fuel pressure regulator).
