Specifications - 3.7L Engine

Identifying General Engine Specifications

DESCRIPTION	SPECIFICATION
Type	90° SOHC V6 12 Valve
Number of Cylinders	4
Firing Order	1-6-5-4-3-2
Lead Cylinder	No. 1 Left Bank
Compression Ratio	9.1:1
Max. Variation Between Cylinders	25%
	Metric	Standard
Displacement	3.7 Liters	226 Cubic Inches
Bore	93.0 mm	3.66 in.
Stroke	90.8 mm	3.40 in.
Horsepower	210@5200 RPM
Torque	225ft. lbs.@4200 PRM
Compression Pressure	1172-1551 kPa	170-225 psi

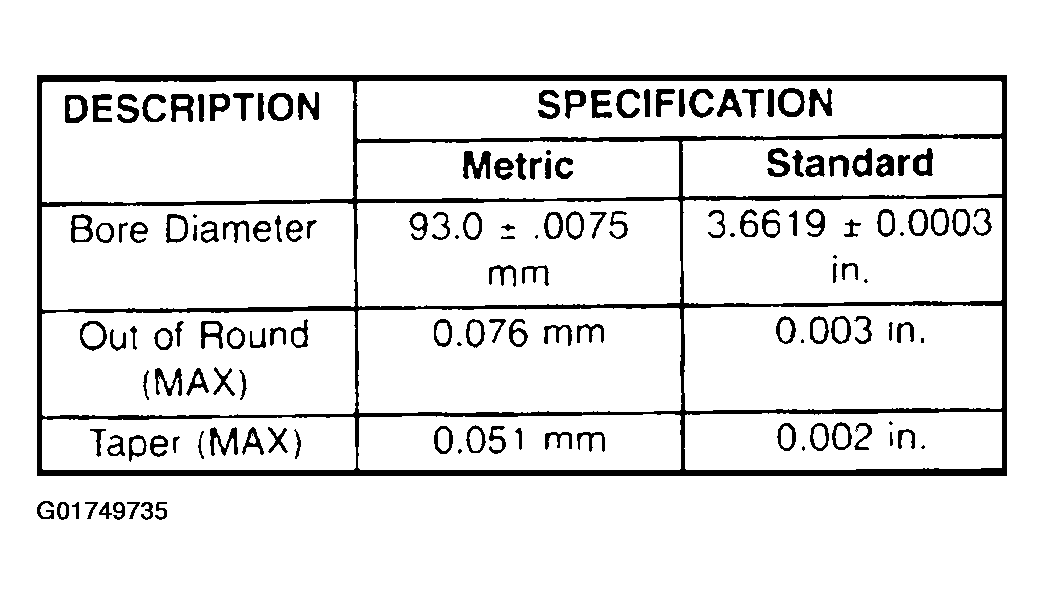

Fig 1: Identifying Cylinder Block Specifications

G01749735

Courtesy of DAIMLERCHRYSLER CORP.

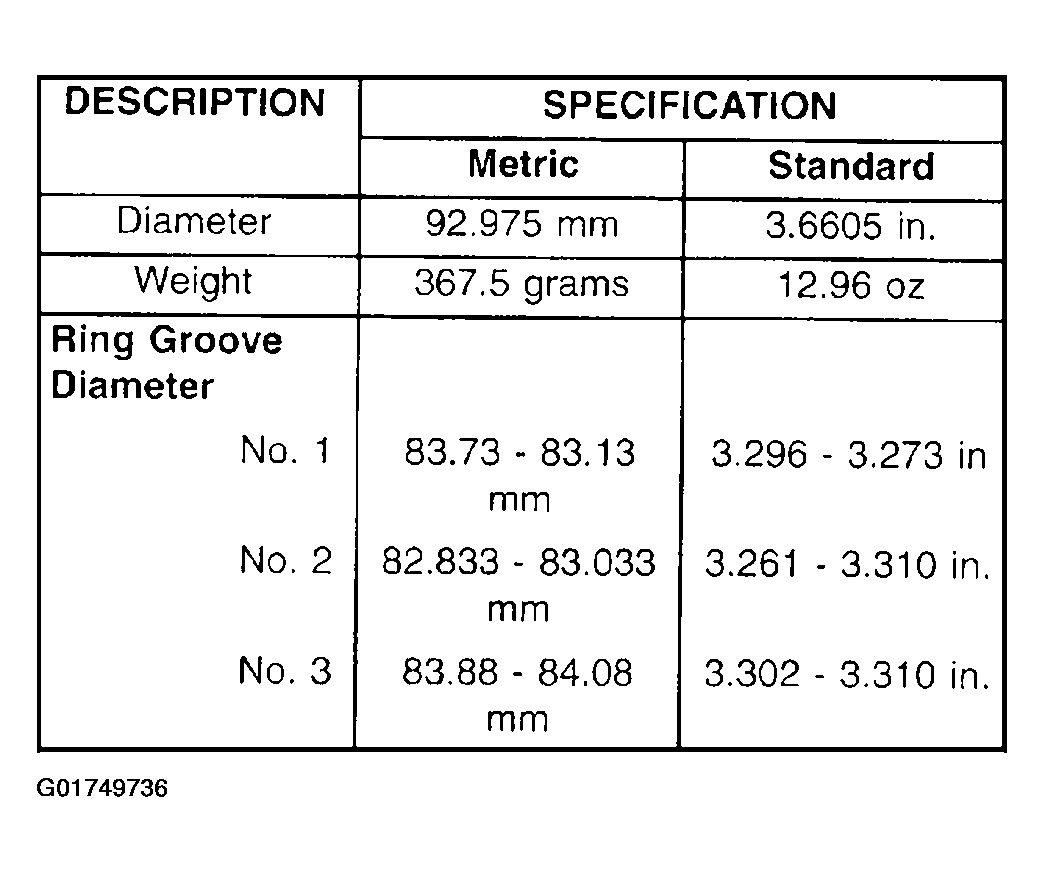

Fig 2: Identifying Piston Specifications

G01749736

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Piston Pin Specifications

G01749737

Courtesy of DAIMLERCHRYSLER CORP.

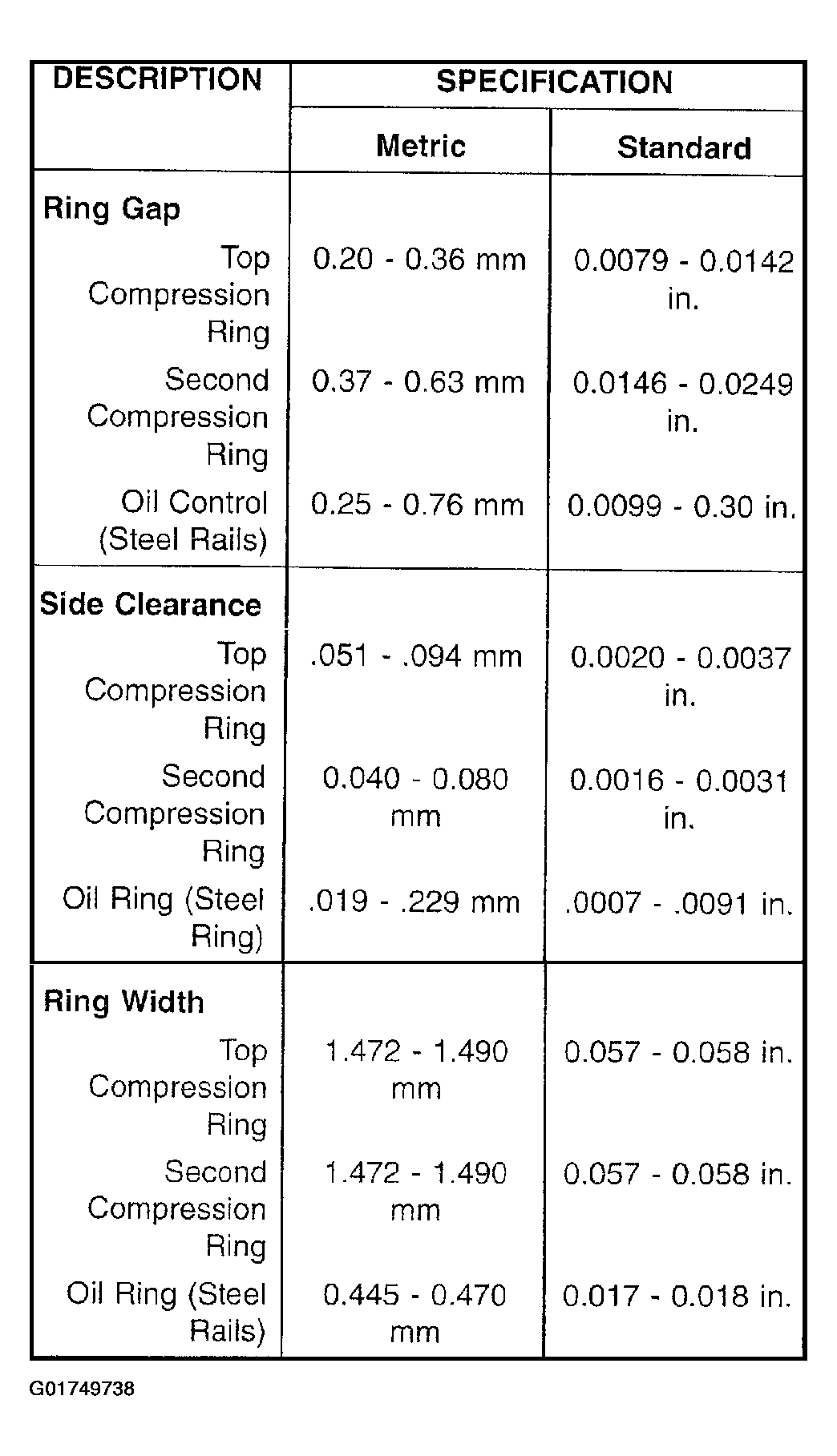

Fig 4: Identifying Piston Ring Specifications

G01749738

Courtesy of DAIMLERCHRYSLER CORP.

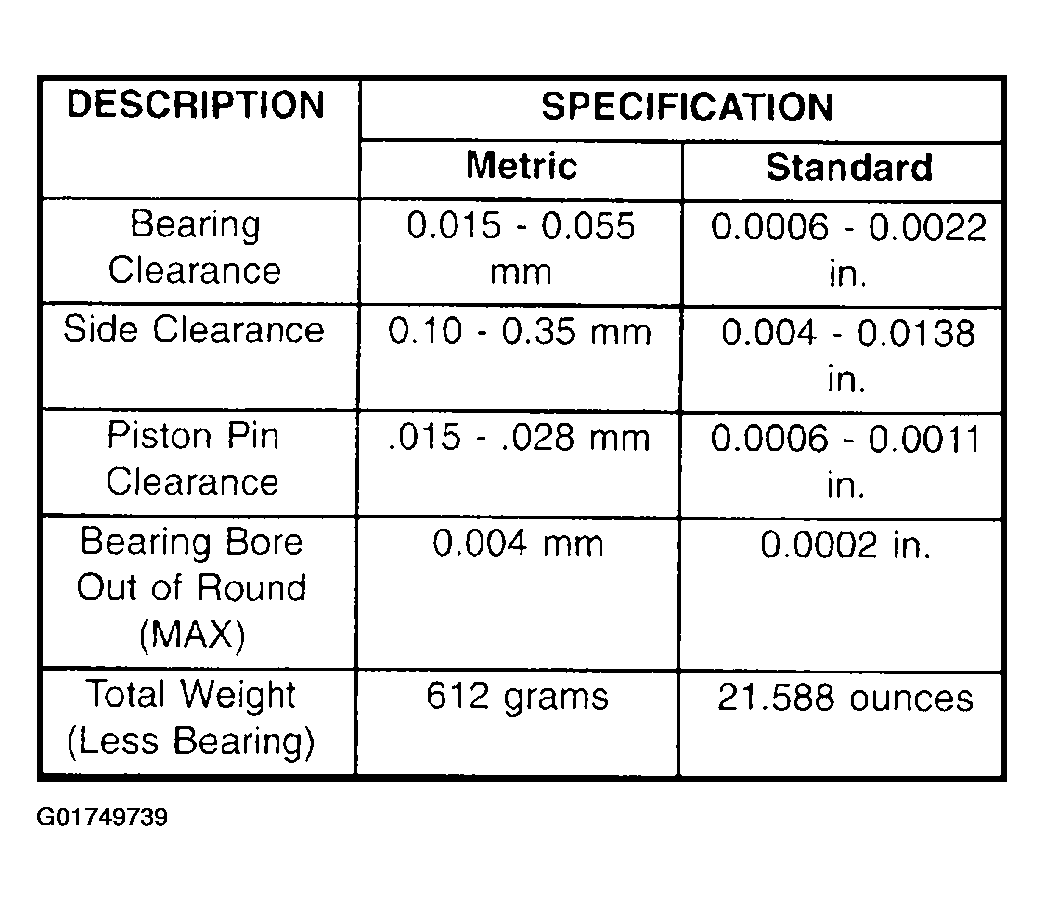

Fig 5: Identifying Connecting Rod Specifications

G01749739

Courtesy of DAIMLERCHRYSLER CORP.

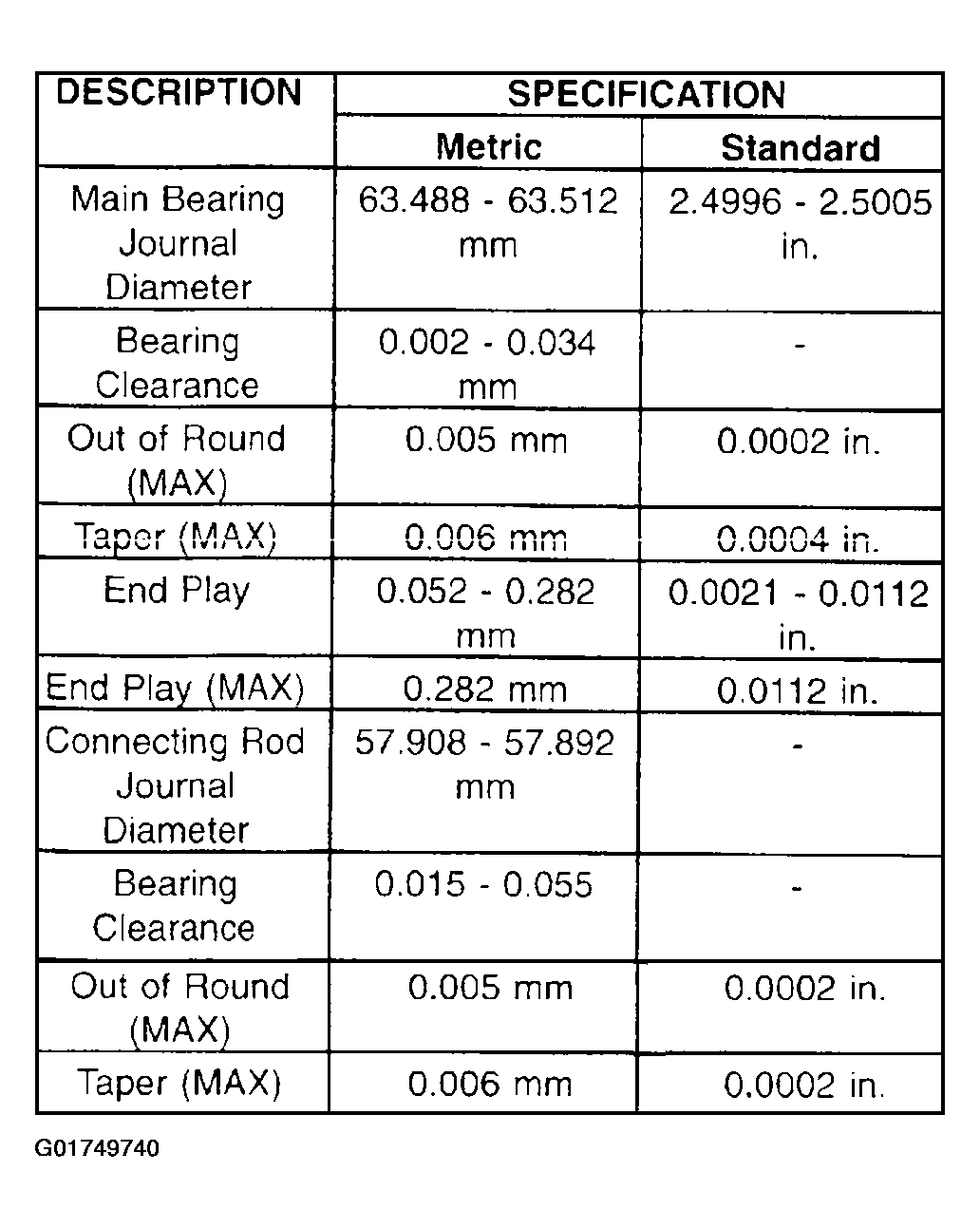

Fig 6: Identifying Crankshaft Specifications

G01749740

Courtesy of DAIMLERCHRYSLER CORP.

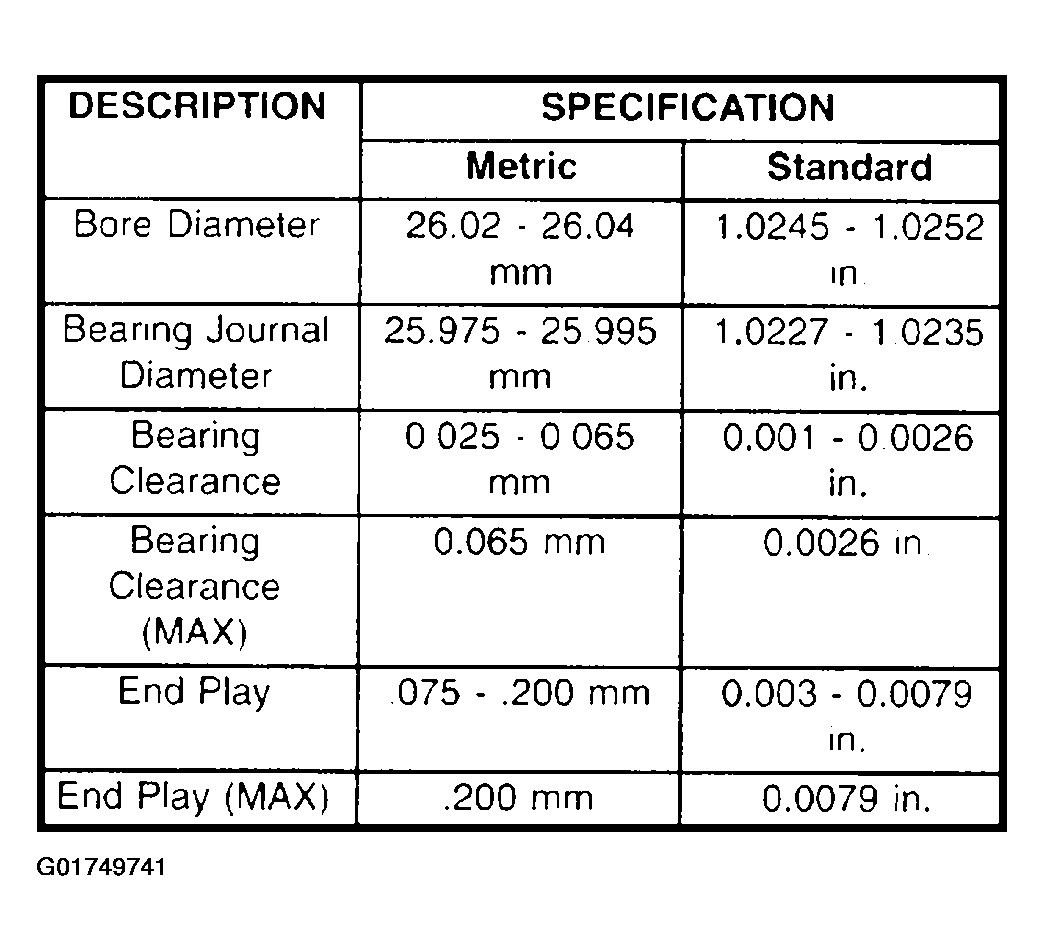

Fig 7: Identifying Camshaft Specifications

G01749741

Courtesy of DAIMLERCHRYSLER CORP.

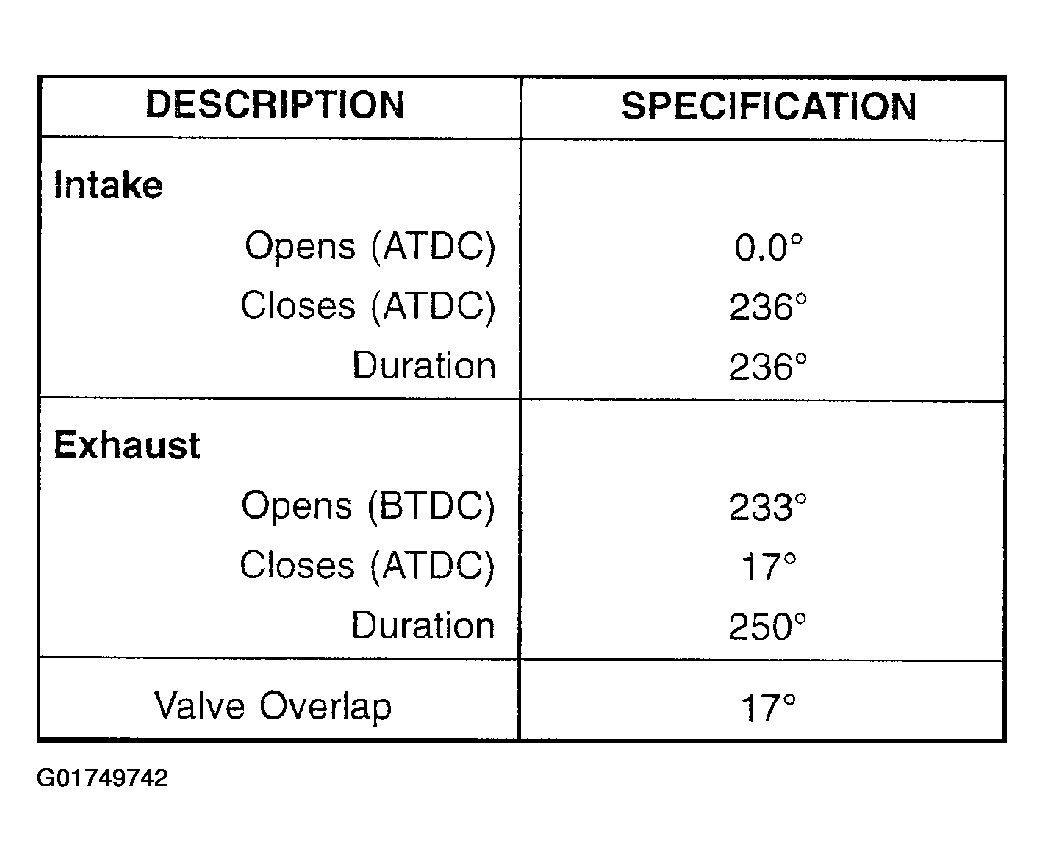

Fig 8: Identifying Valve Timing Specifications

G01749742

Courtesy of DAIMLERCHRYSLER CORP.

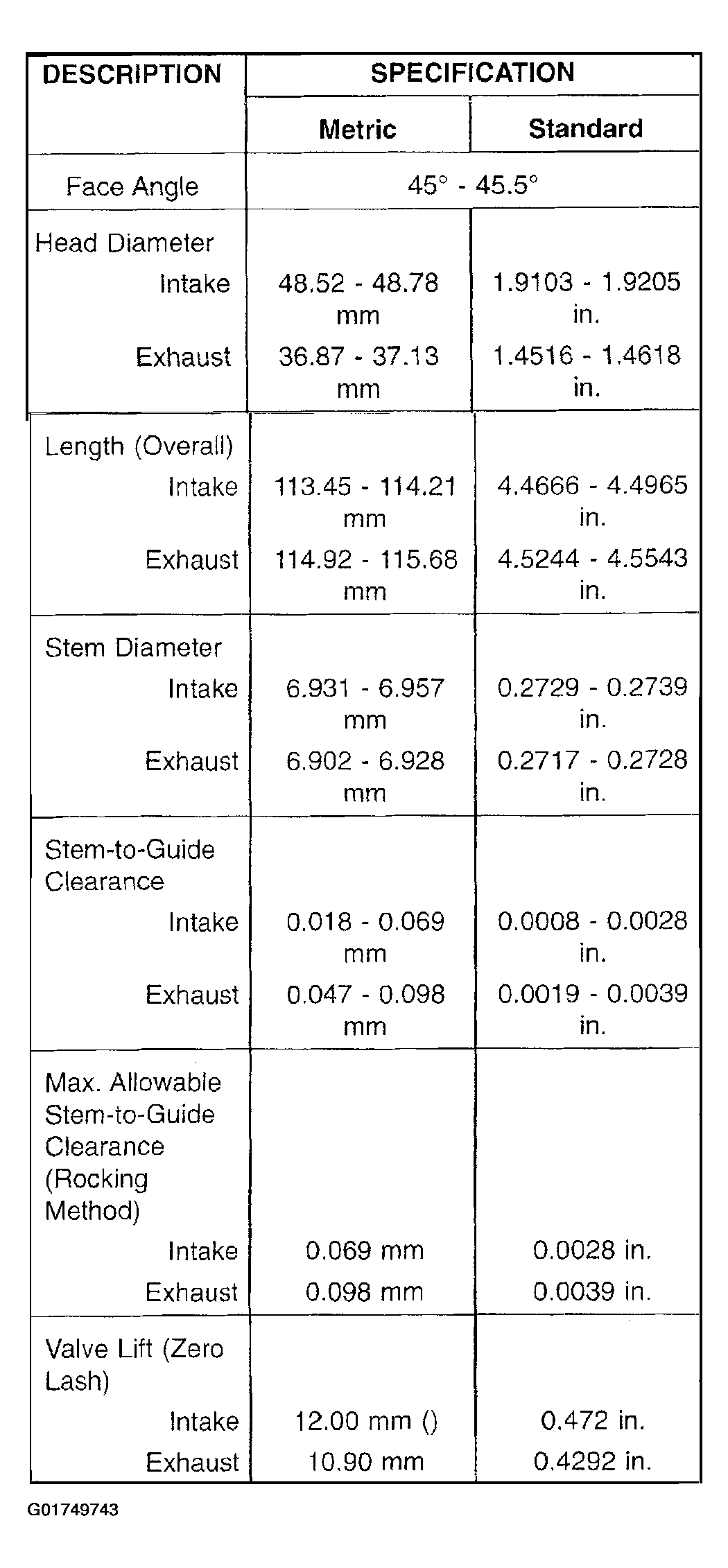

Fig 9: Identifying Valve Specifications

G01749743

Courtesy of DAIMLERCHRYSLER CORP.

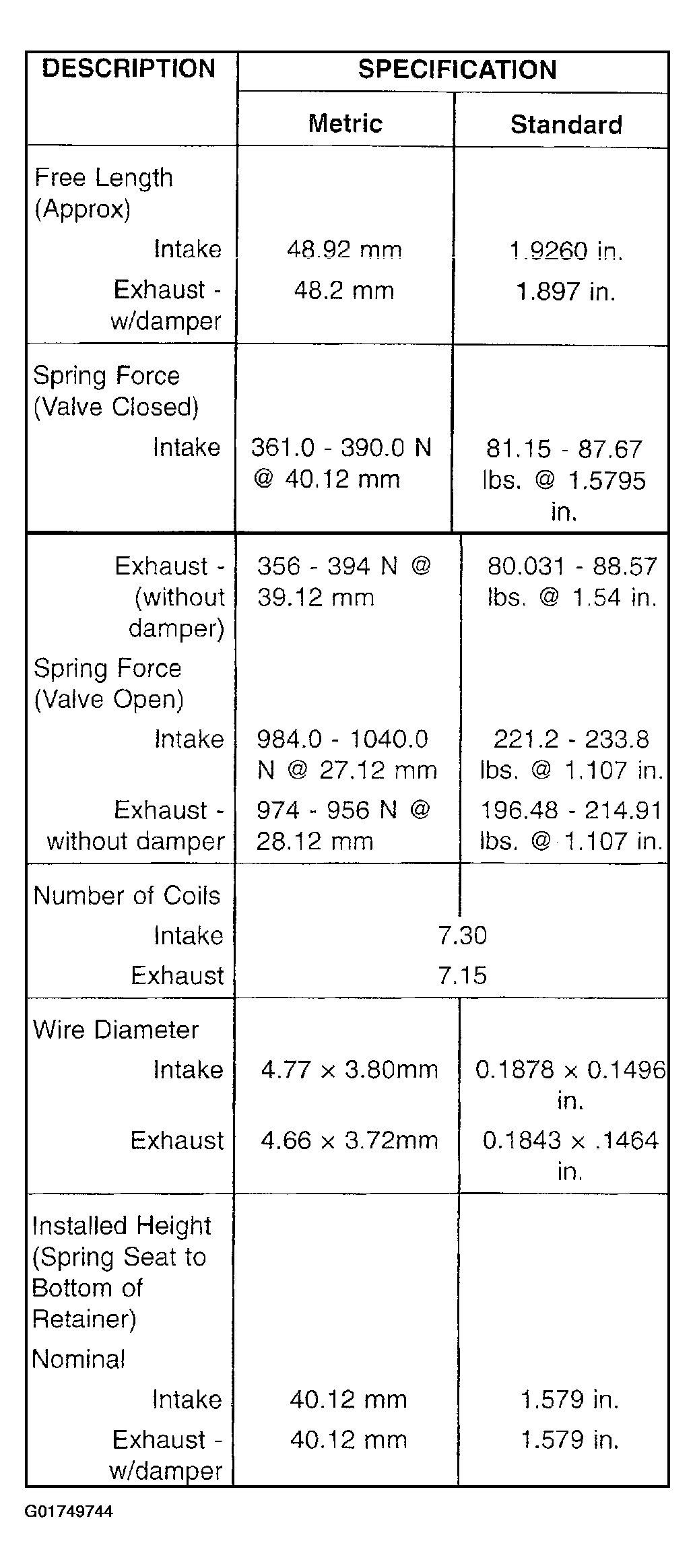

Fig 10: Identifying Valve Spring Specifications

G01749744

Courtesy of DAIMLERCHRYSLER CORP.

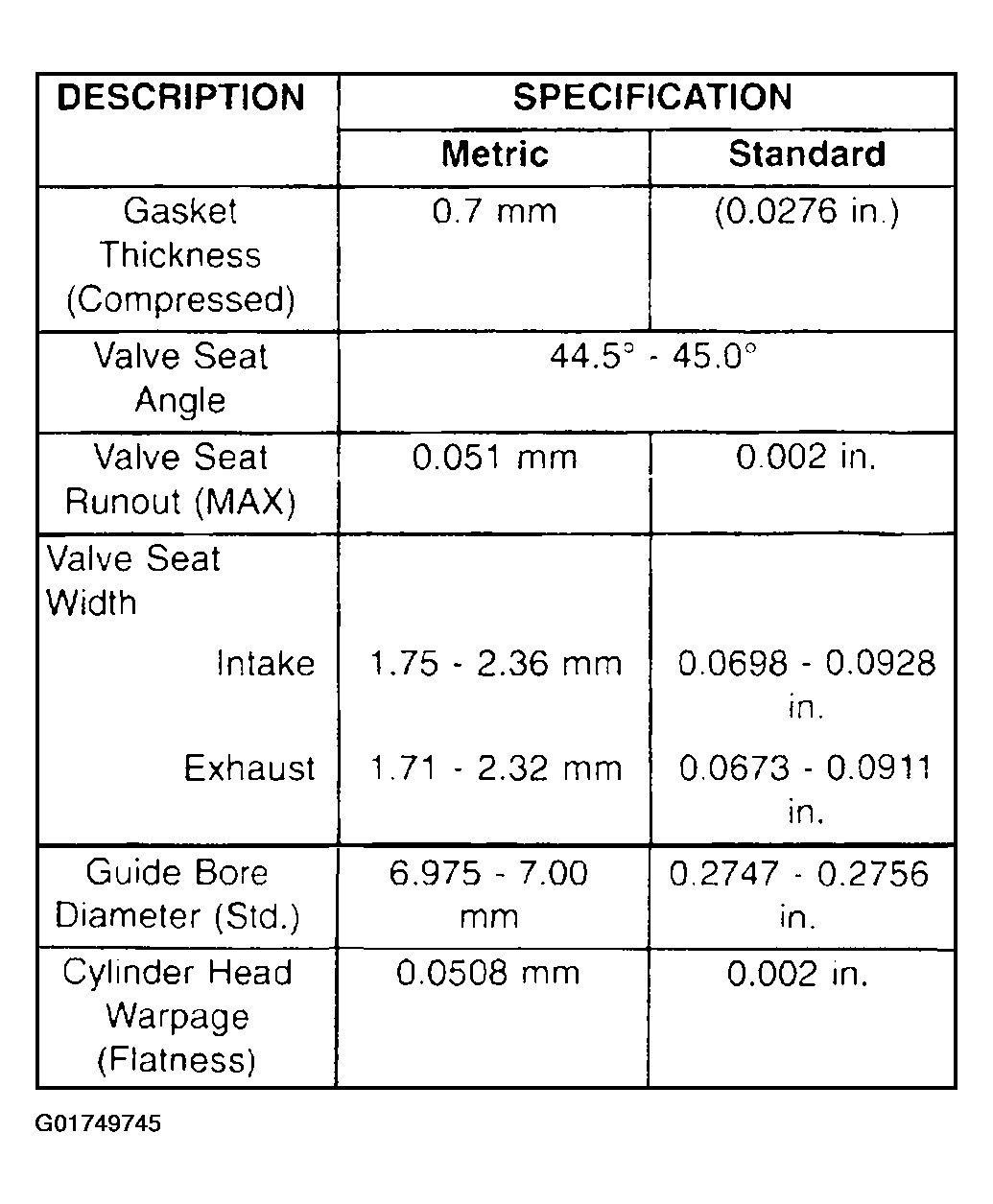

Fig 11: Identifying Cylinder Head Specifications

G01749745

Courtesy of DAIMLERCHRYSLER CORP.

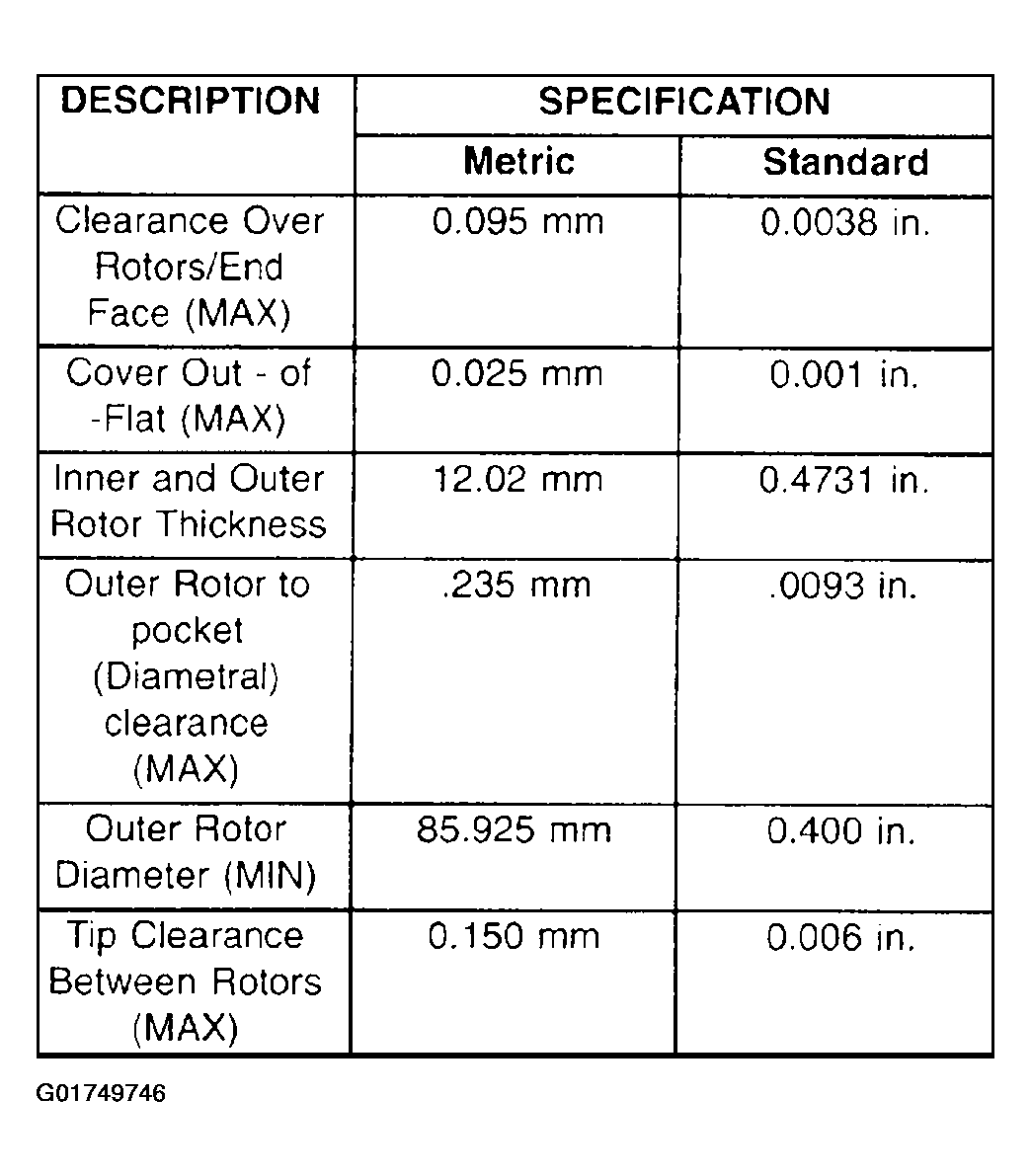

Fig 12: Identifying Oil Pump Specifications

G01749746

Courtesy of DAIMLERCHRYSLER CORP.

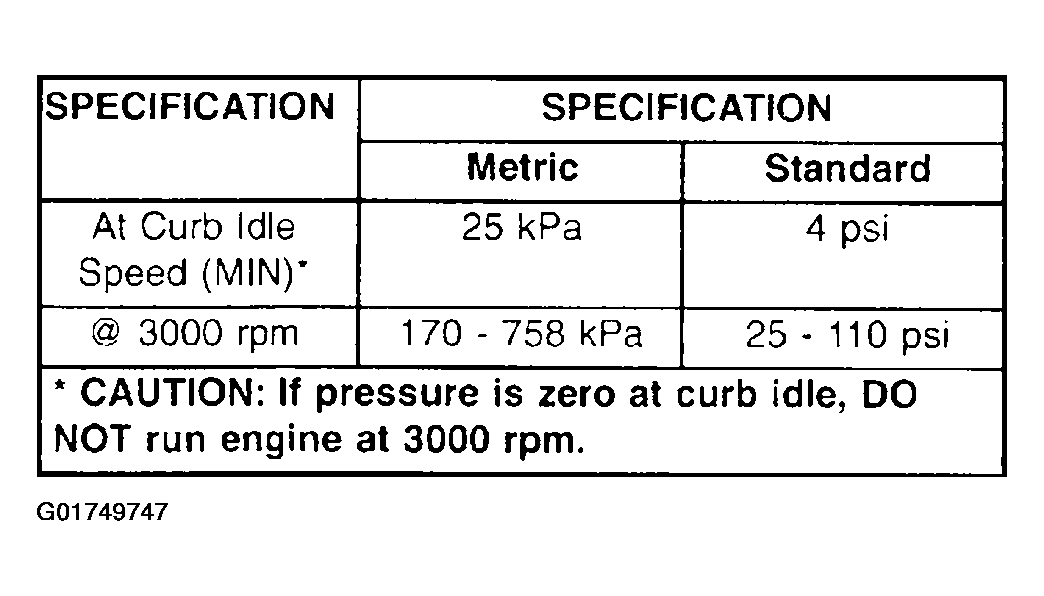

Fig 13: Identifying Oil Pressure Specifications

G01749747

Courtesy of DAIMLERCHRYSLER CORP.
