Exhaust System: Muffler: Removal

All original equipment exhaust systems are manufactured with the exhaust tailpipe welded to the muffler. Service replacement mufflers and exhaust tailpipes are either clamped together or welded together.

WARNING: IF TORCHES ARE USED WHEN WORKING ON THE EXHAUST SYSTEM, DO NOT ALLOW THE FLAME NEAR THE FUEL LINE.
CAUTION: When servicing exhaust system components, disconnect the oxygen sensor connector. Allowing the exhaust system to hang by the oxygen sensor harness will damage the wiring and/or sensor.
  1. Raise and support the vehicle.
  2. Remove the mounting nuts from the muffler to front pipe flange (Fig 1 ).
  3. Disconnect front tailpipe hanger from the insulator (Fig 1 ).
  4. Remove the tailpipe from the rear tailpipe hanger (Fig 1 ).
  5. Remove the muffler and tailpipe assembly from the vehicle.

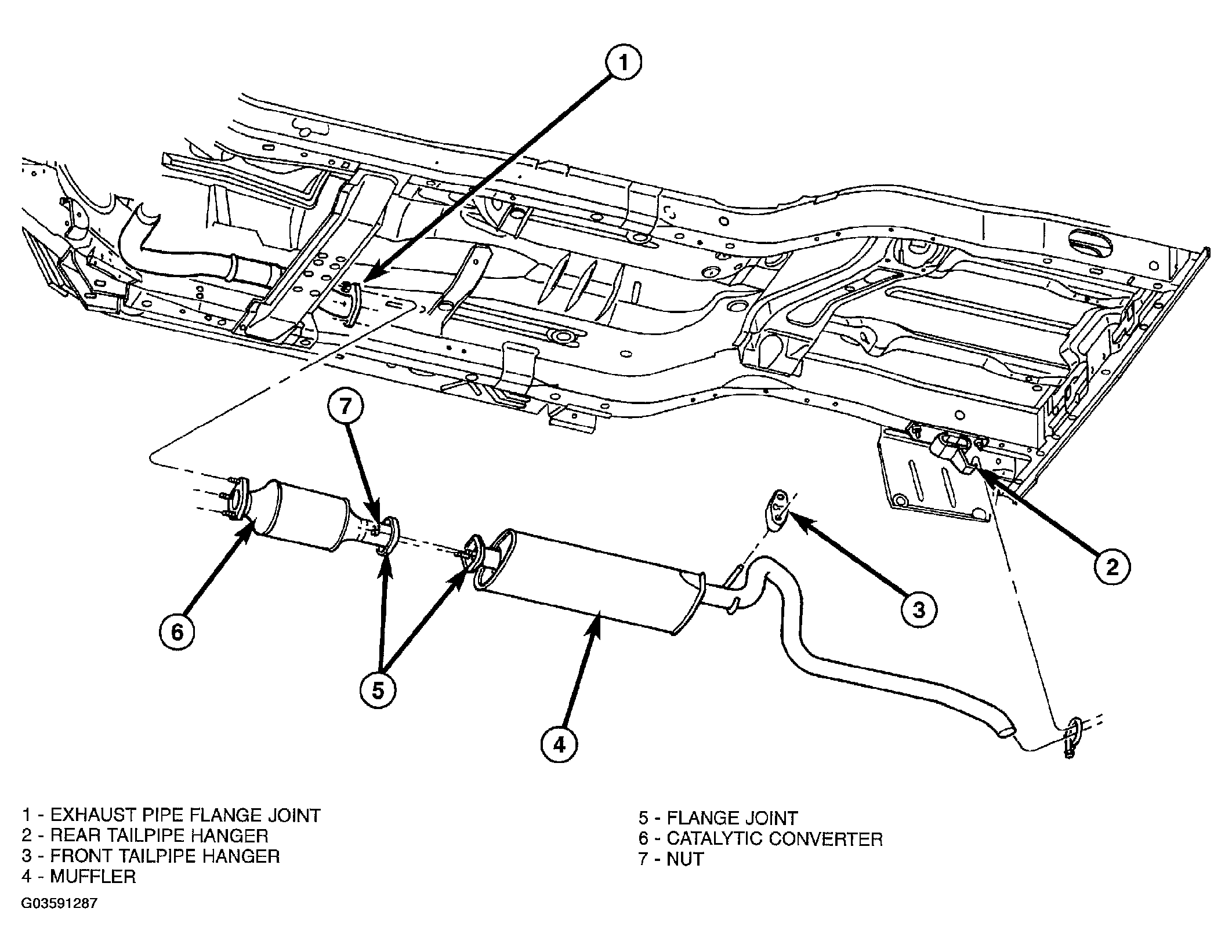

    Fig 1: Muffler/Tailpipe Removal & Installation
    G03591287Courtesy of DAIMLERCHRYSLER CORP.
