Overhead Console - Removal
- Disconnect and isolate the negative battery cable.

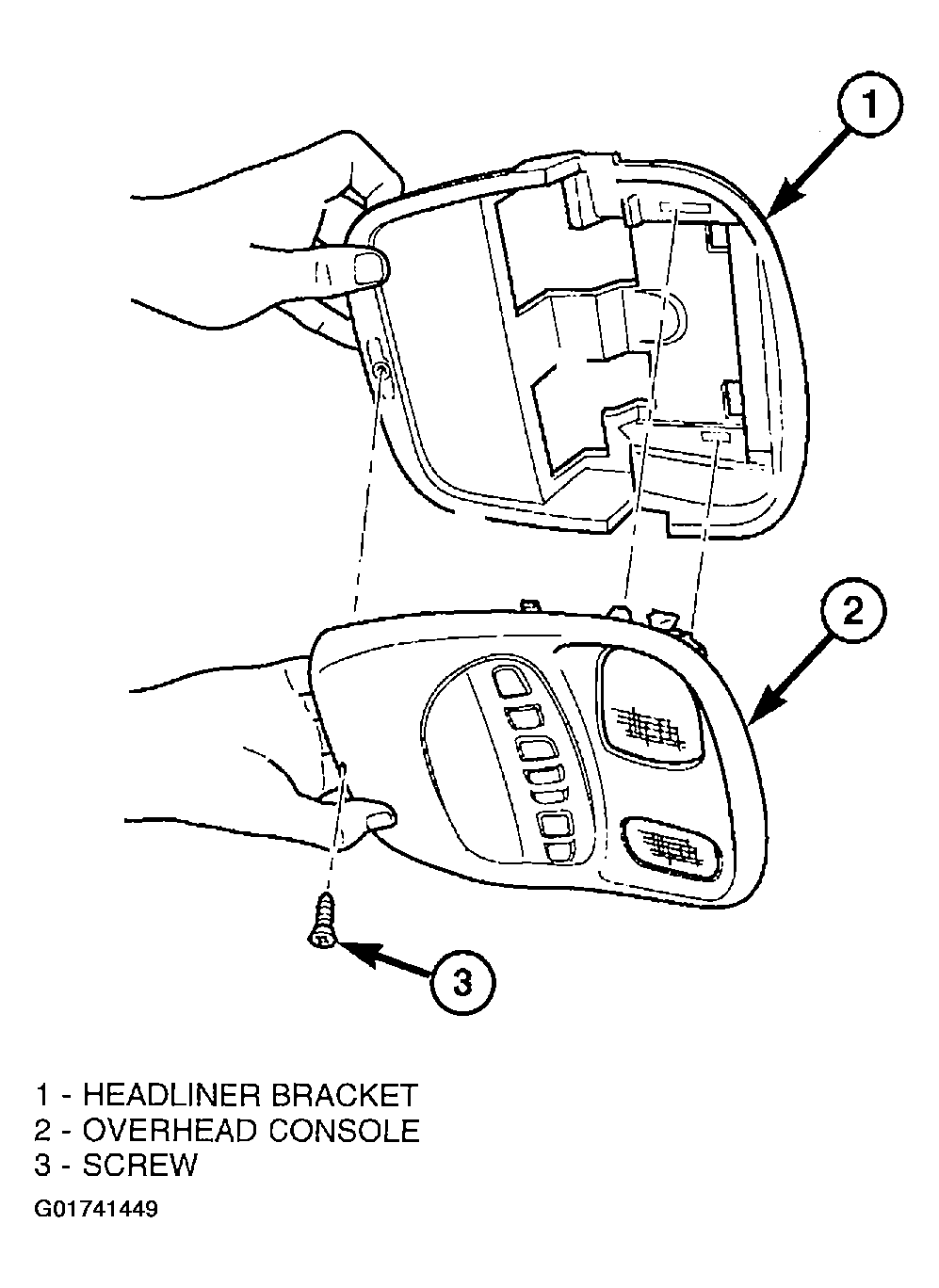

- Remove the overhead console retaining screw, located in the front of console near the windshield.
Courtesy of DAIMLERCHRYSLER CORP.
- Using your fingertips, grasp the sides of the overhead console and pull straight down evenly to disengage the two snap clips at the rear of the unit.
- Lower the overhead console far enough to access the wire harness connectors.
- Disconnect the control module, courtesy lamps and power sunroof switch electrical connectors, if equipped.
- Remove the overhead console assembly from the vehicle.
