Crankshaft Position Sensor: Removal: 3.7L

The Crankshaft Position (CKP) sensor is mounted into the right rear side of the cylinder block. It is positioned and bolted into a machined hole.

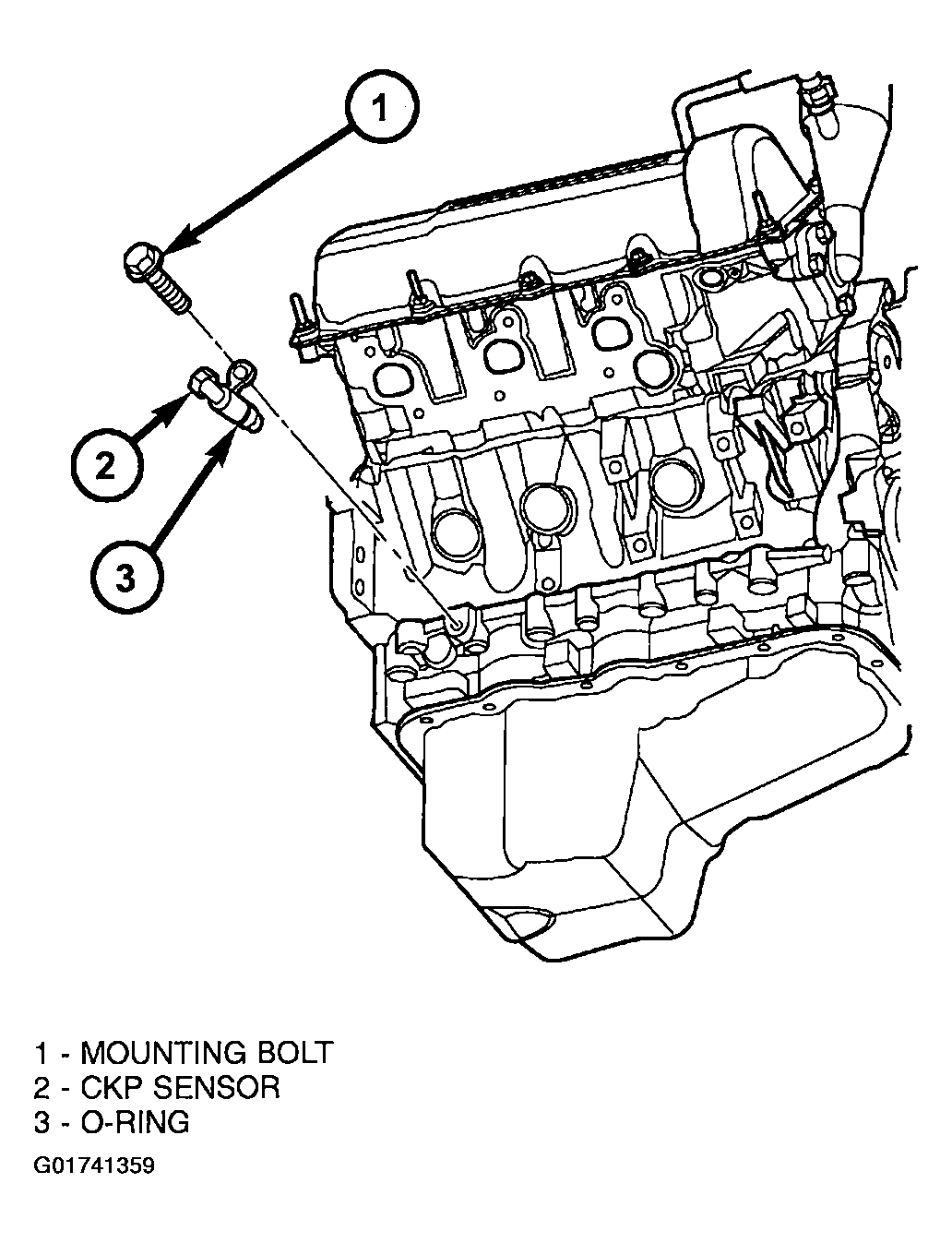

Fig 1: Removing CKP - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1. Raise vehicle.

1. Disconnect sensor electrical connector.
2. Remove sensor mounting bolt.
3. Carefully twist sensor from cylinder block.
4. Check condition of sensor o-ring.
