Structural Cover: Removal

  1. Raise vehicle on hoist.
  2. Remove the bolts retaining structural cover.

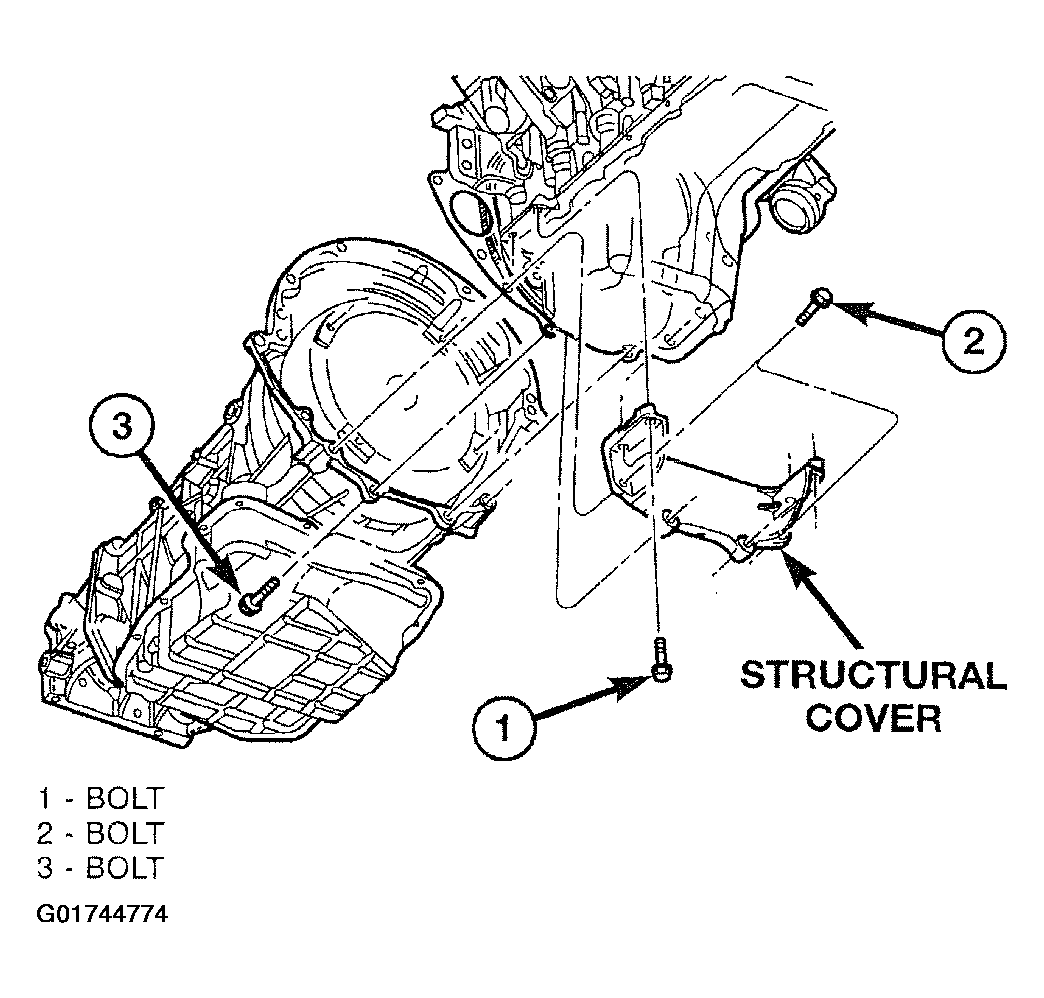

    Fig 1: Removing Structural Cover
    G01744774Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the structural cover.
