Inlet Filter: Removal

The fuel pump inlet filter is located on the bottom/side of the lower fuel pump module section. The fuel pump module assembly is located in the fuel tank.

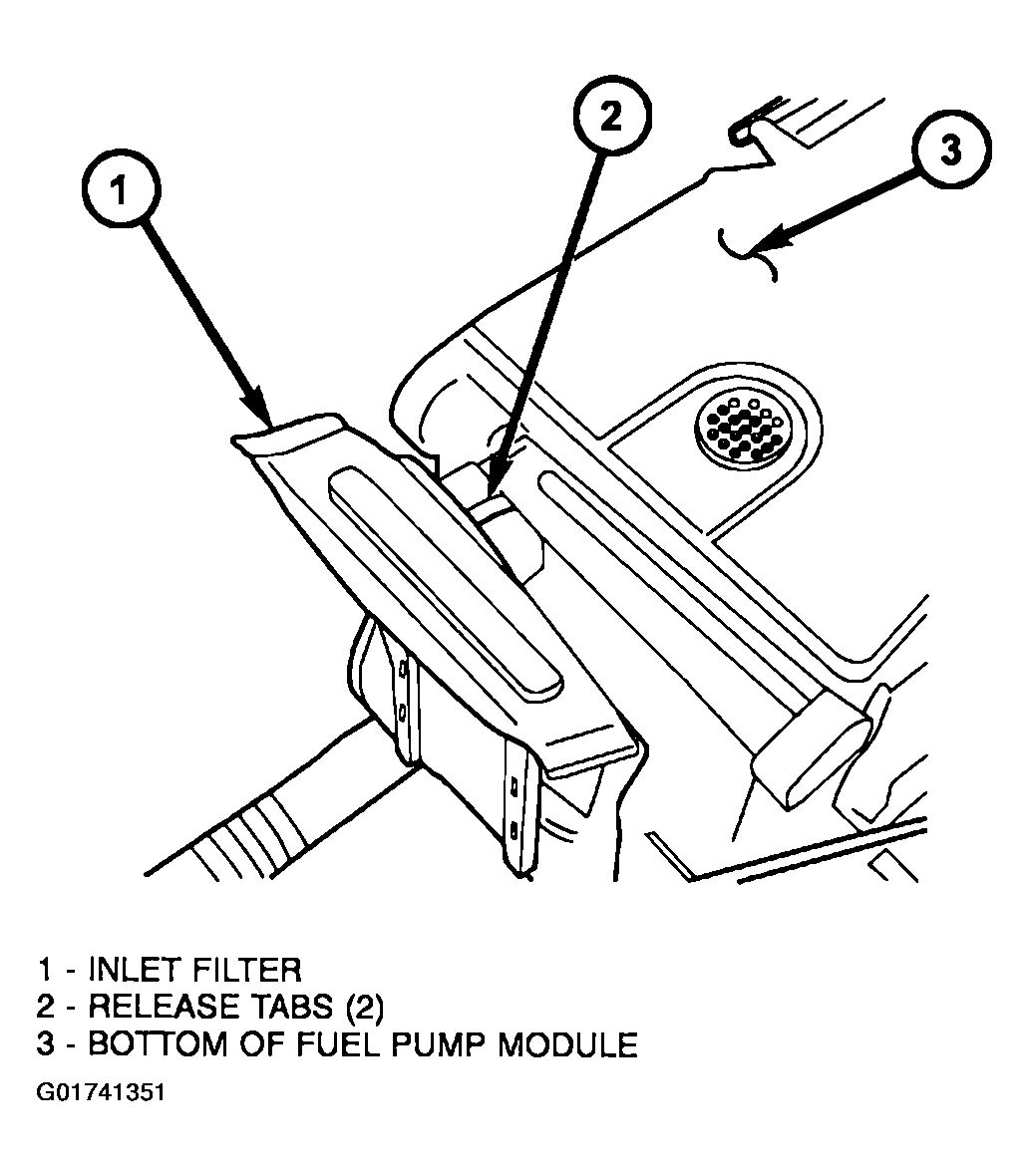

Fig 1: Identifying Inlet Filter

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove lower section of fuel pump module. Refer to FUEL PUMP MODULE .
2. Remove filter by prying from pump module with 2 small screwdrivers. Filter is snapped to module with 2 release tabs.
3. Clean filter entrance into pump module opening.
