HCU (Hydraulic Control Unit): Removal

  1. Install prop rod on the brake pedal to keep pressure on the brake system.
  2. Remove negative battery cable from the battery.
  3. Pull up on the CAB harness connector release and remove connector.

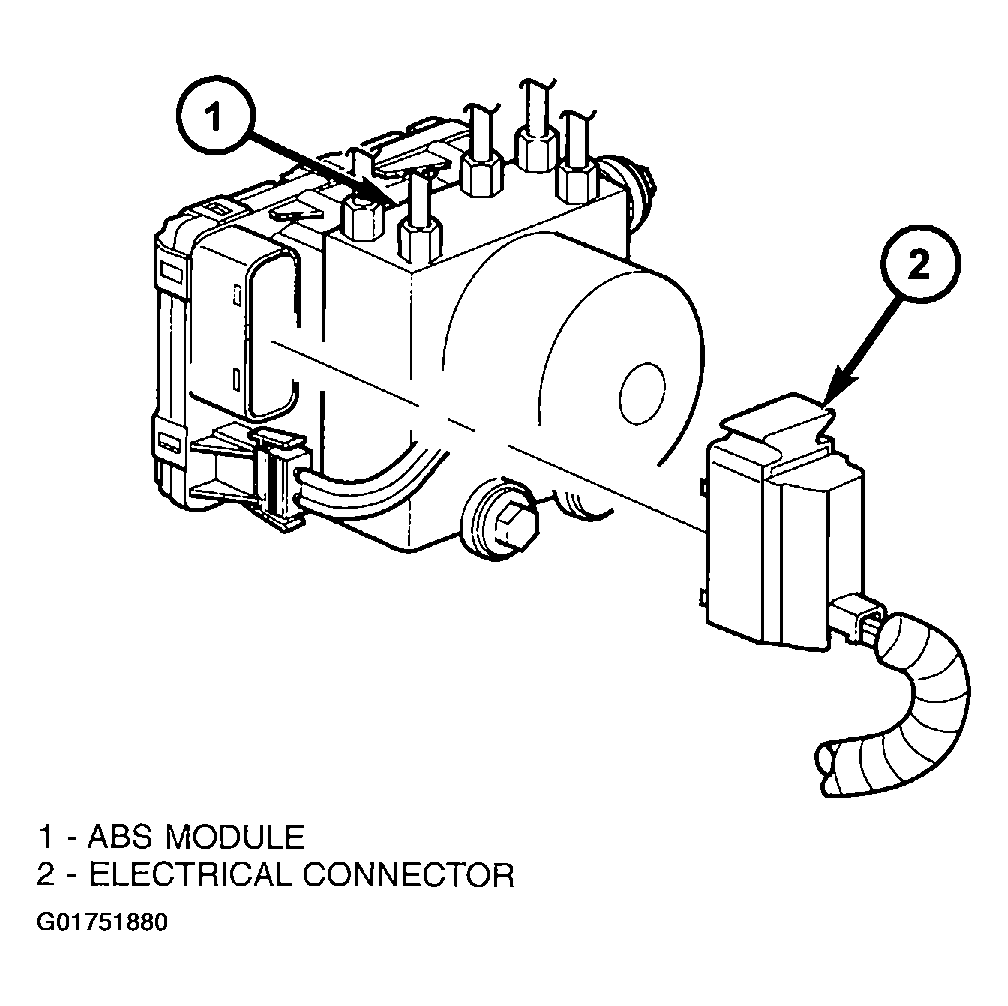

    Fig 1: Disconnecting CAB Harness Connector
    G01751880Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove brake lines from the HCU.
  5. Remove HCU/CAB mounting nuts and bolt (Fig. 4) and remove HCU/CAB.

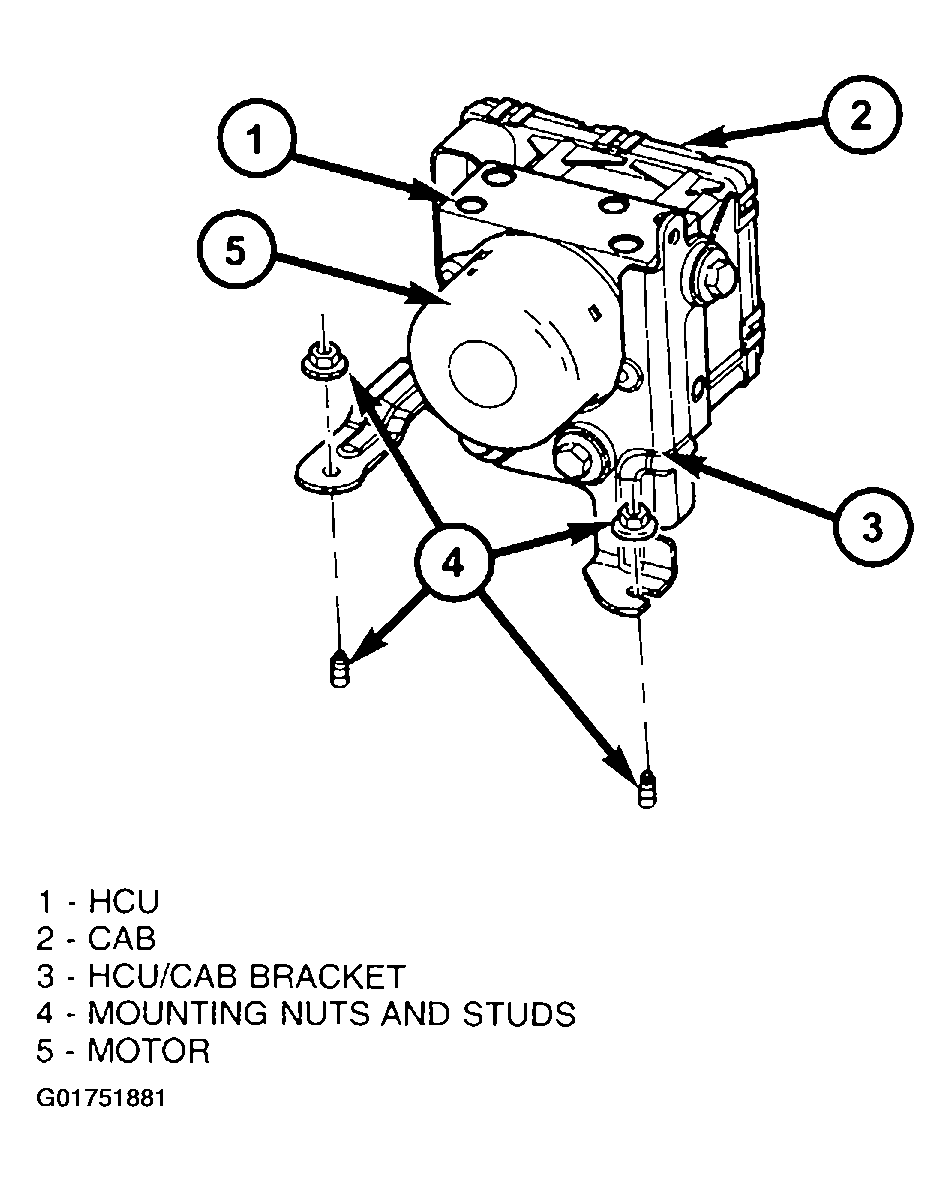

    Fig 2: Removing & Installing HCU/CAB
    G01751881Courtesy of DAIMLERCHRYSLER CORP.
