Hands Free Module

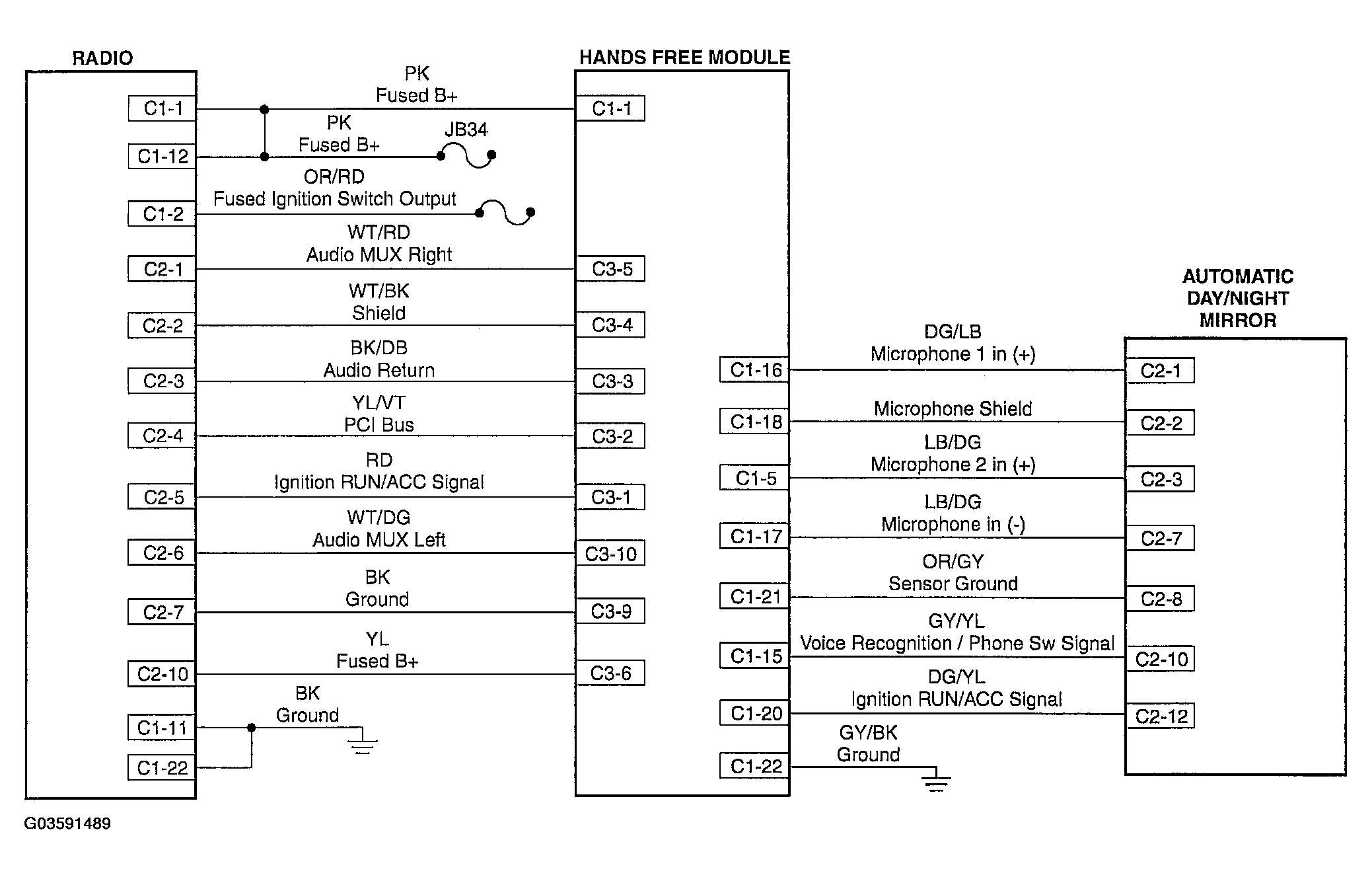

Fig 1: Hands Free Module Schematic Diagrams
G03591489Courtesy of DAIMLERCHRYSLER CORP.
