Inter-Module And DRB Communication

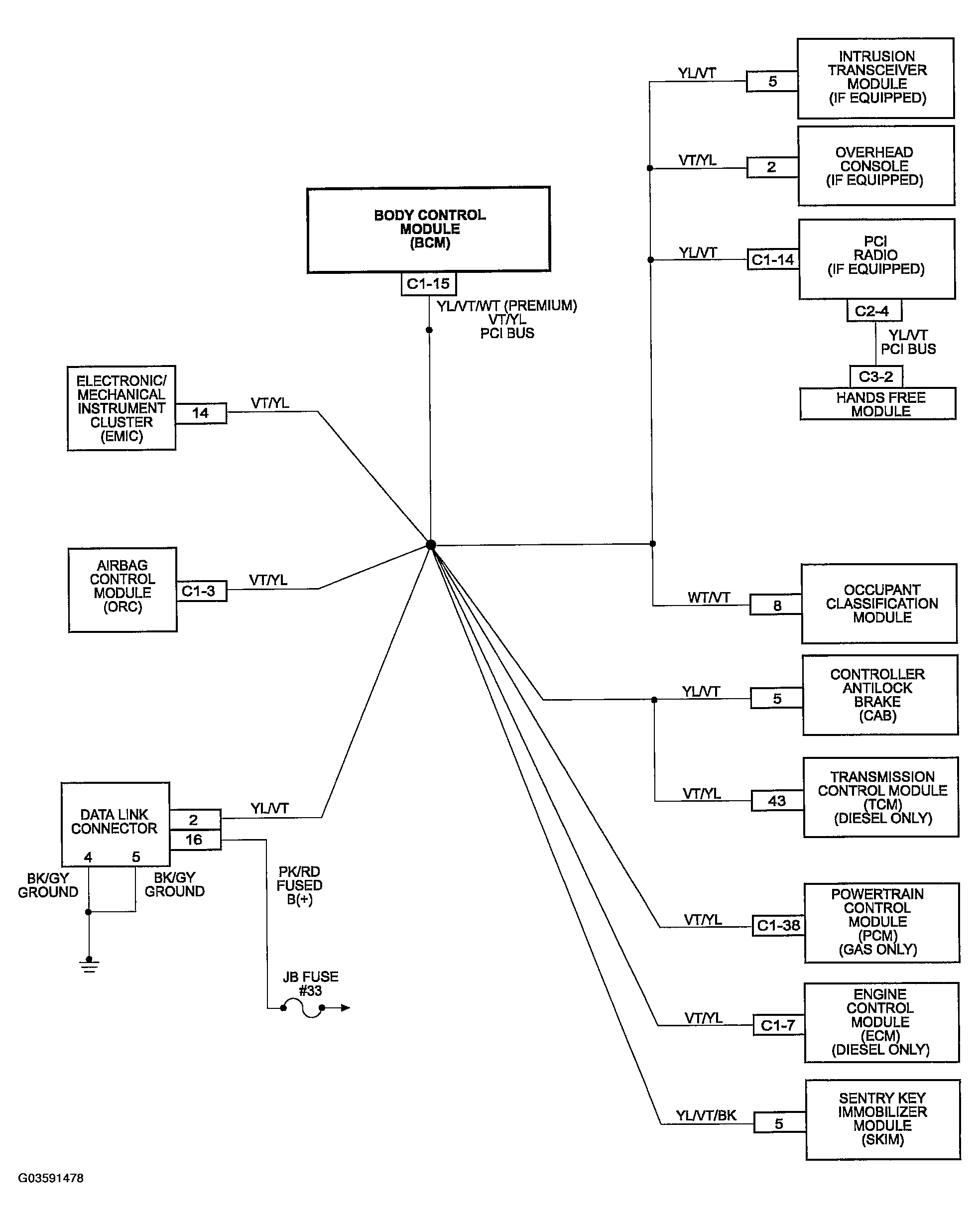

Fig 1: Inter-Module And DRB Communication Schematic Diagrams

G03591478

Courtesy of DAIMLERCHRYSLER CORP.
