Remote Keyless Entry Module (Except Base) - 6 Way

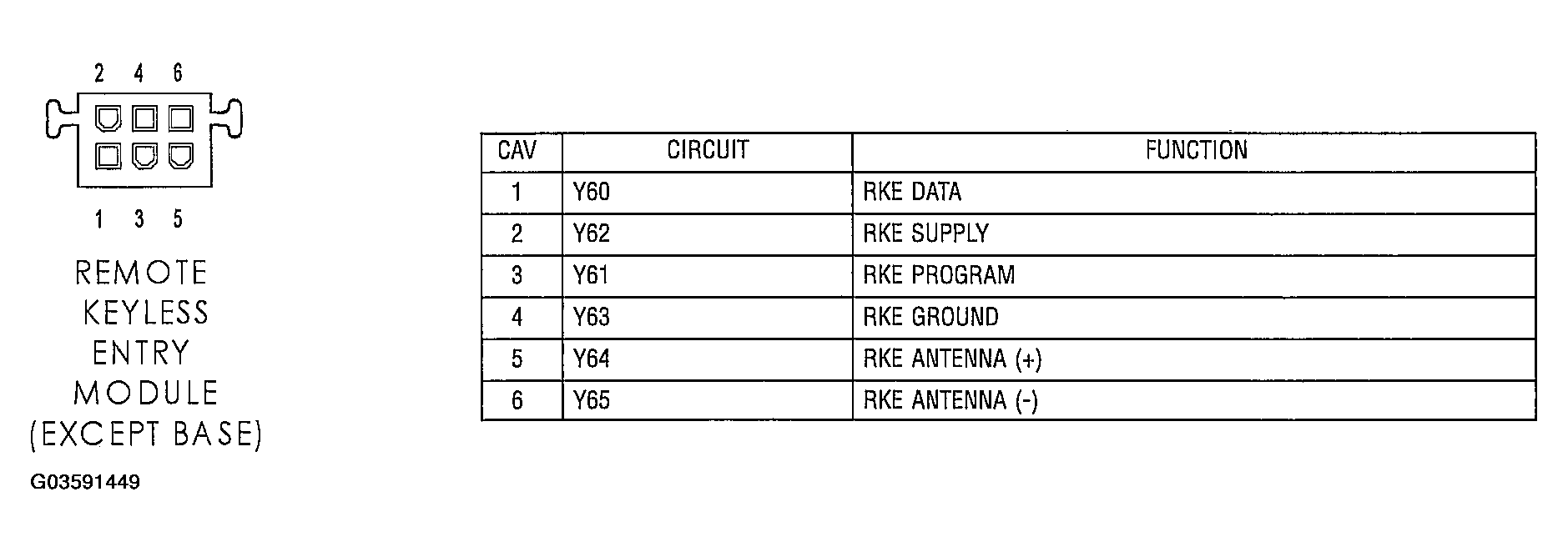

Fig 1: Identifying Remote Keyless Entry Module (Except Base) - 6 Way Connector Pinout

G03591449

Courtesy of DAIMLERCHRYSLER CORP.
