Powertrain Control Module C1 - 38 Way

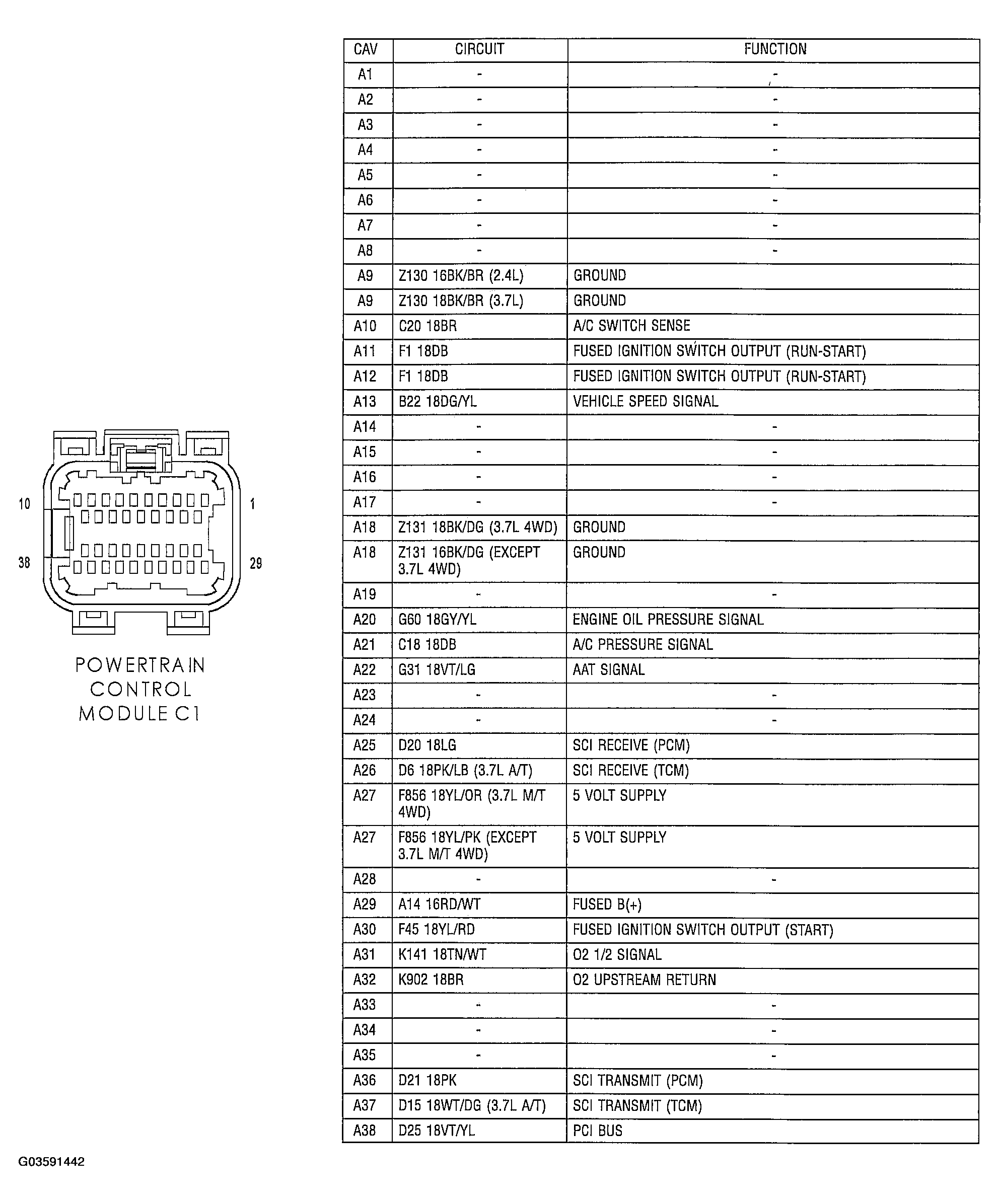

Fig 1: Identifying Powertrain Control Module C1 - 38 Way Connector Pinout
G03591442Courtesy of DAIMLERCHRYSLER CORP.
