Occupant Classification Module -18 Way

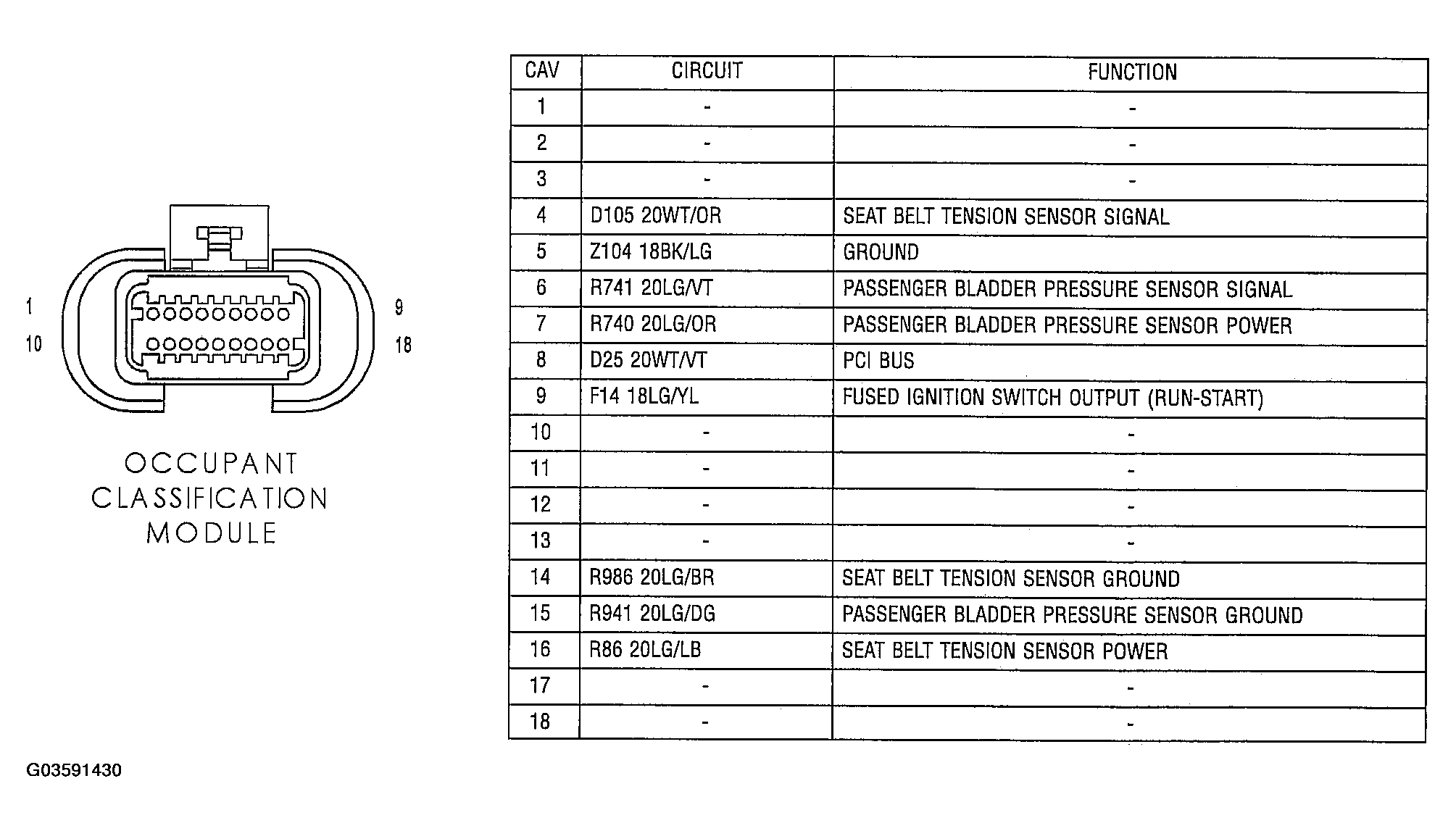

Fig 1: Identifying Occupant Classification Module -18 Way Connector Pinout

G03591430

Courtesy of DAIMLERCHRYSLER CORP.
