Junction Block Body Control Module-JB - 26 Way

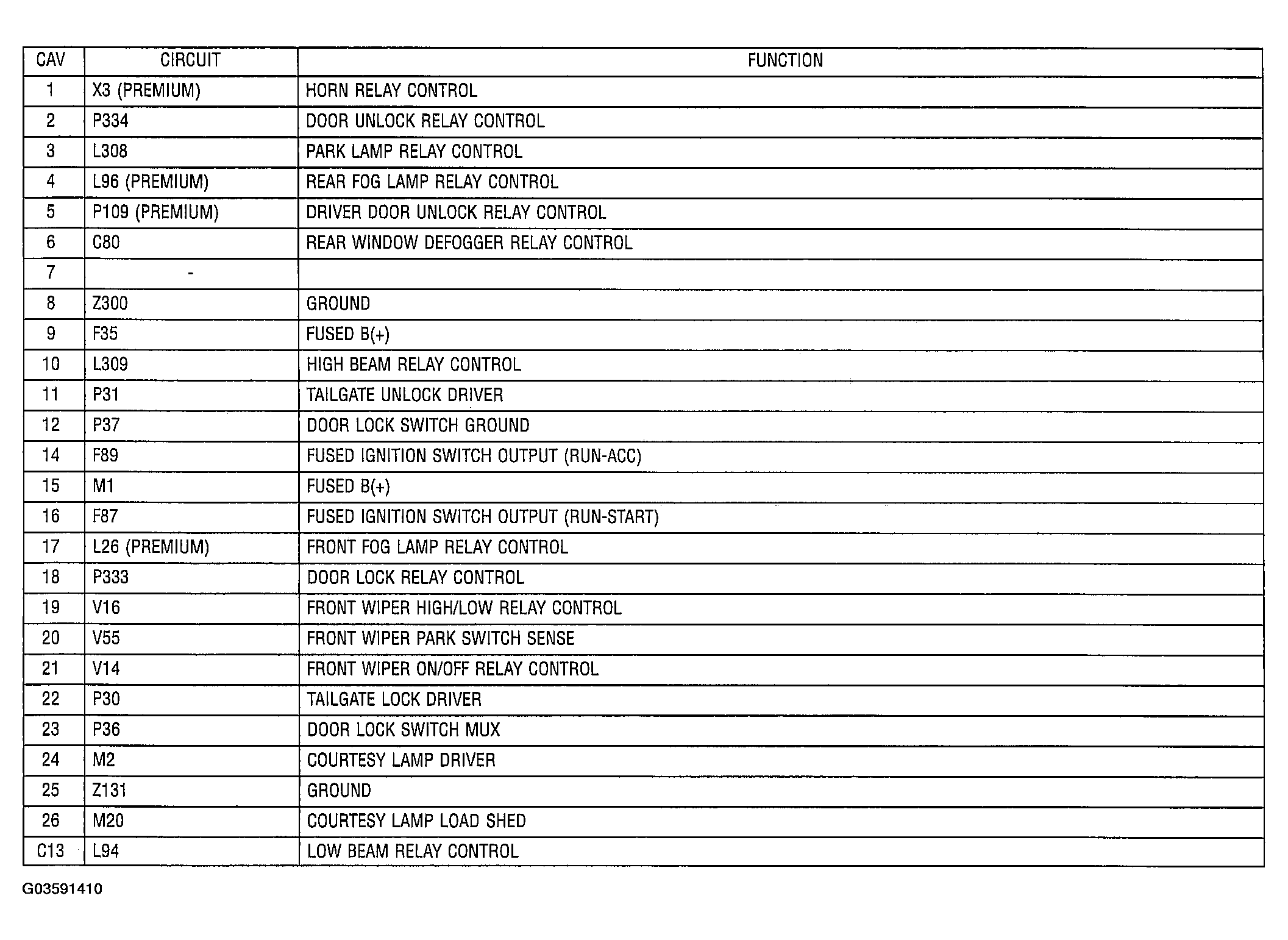

Fig 1: Identifying Junction Block Body Control Module-JB - 26 Way Connector Pinout

G03591410

Courtesy of DAIMLERCHRYSLER CORP.
