Occupant Classification System

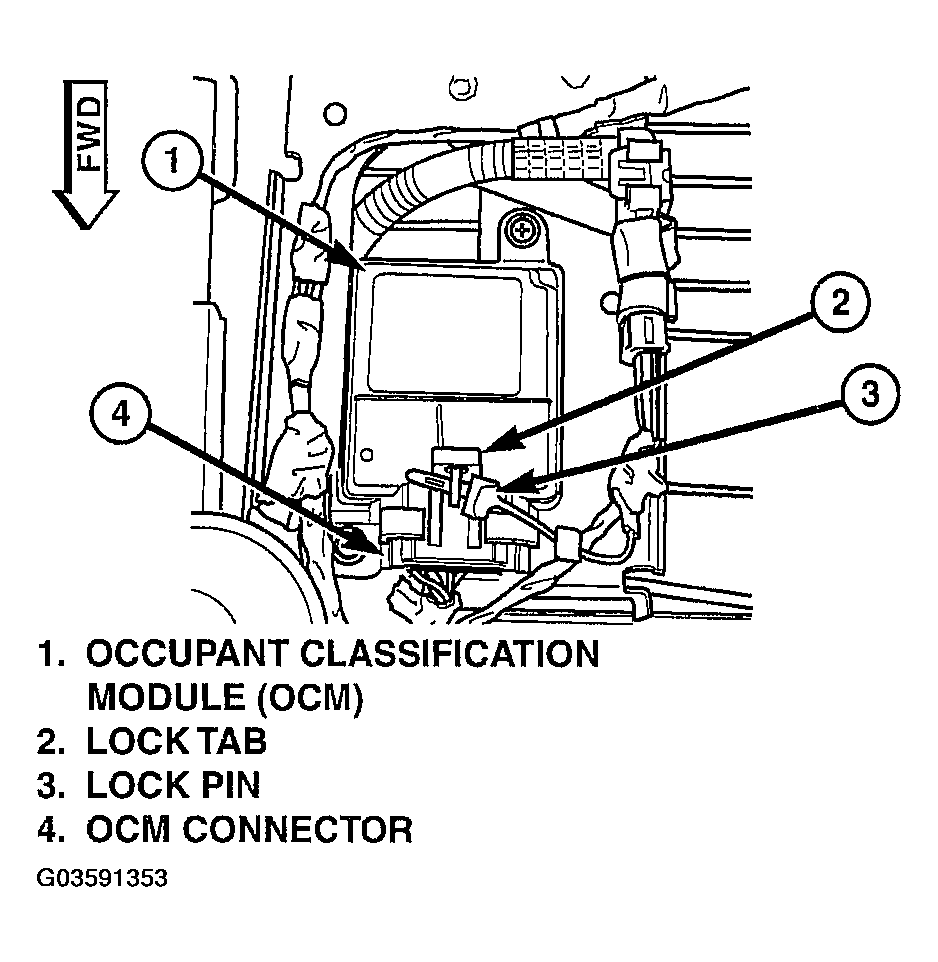

Fig 1: Identifying Occupant Classification System (1 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

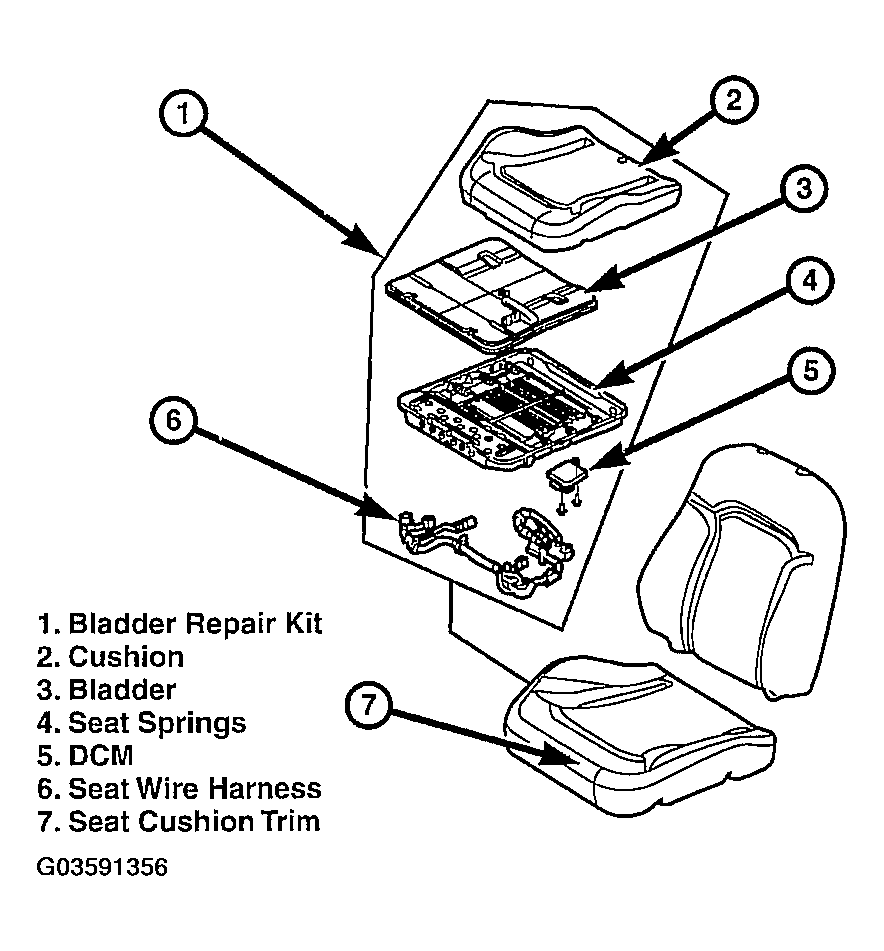

Fig 2: Identifying Occupant Classification System (2 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

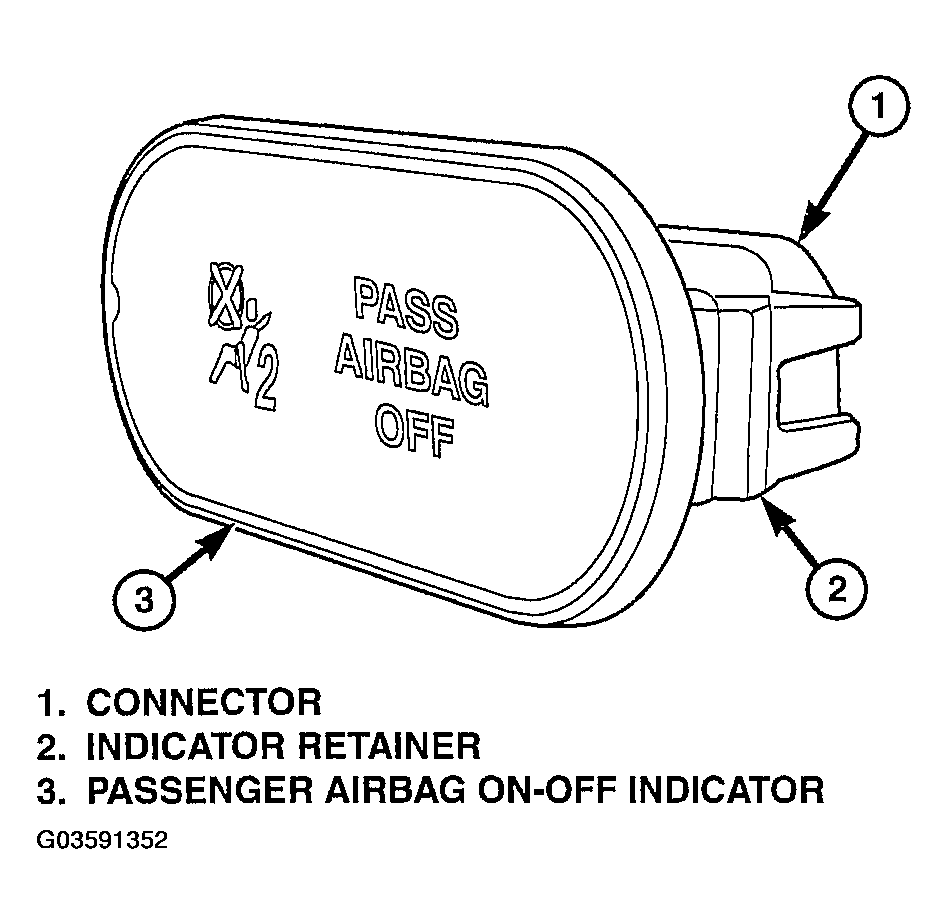

Fig 3: Identifying Occupant Classification System (3 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

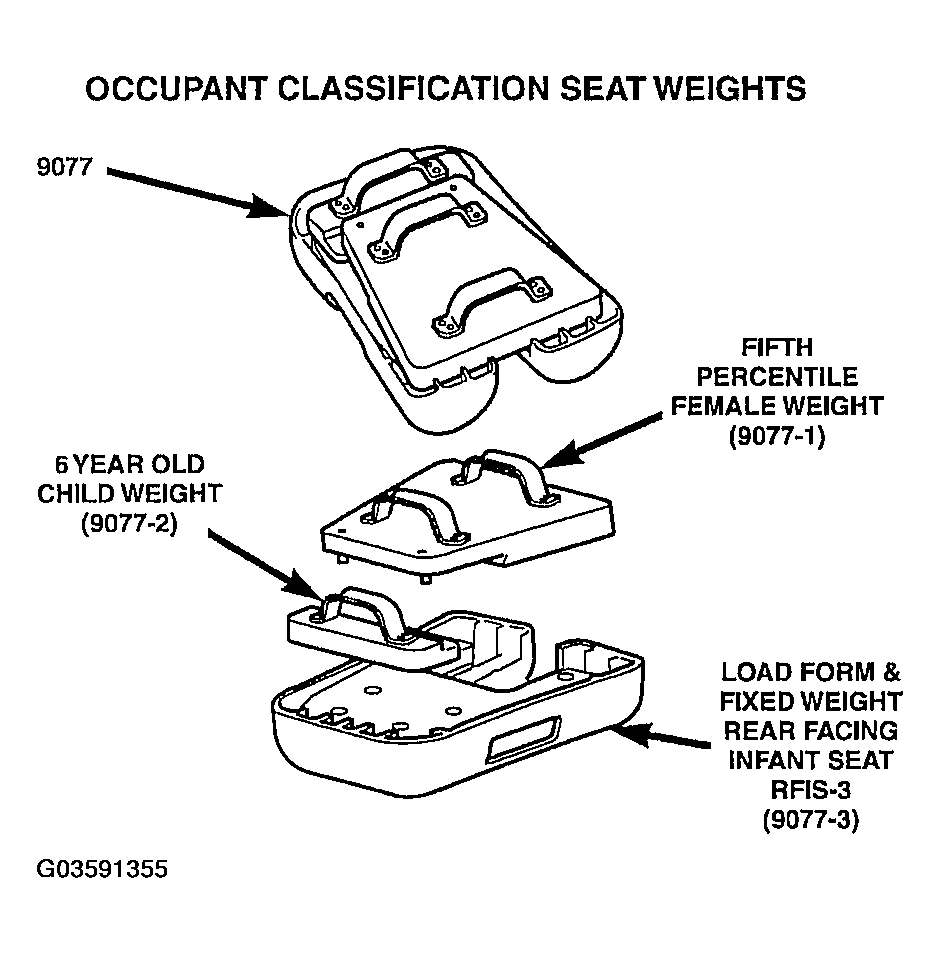

Fig 4: Identifying Occupant Classification System (4 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

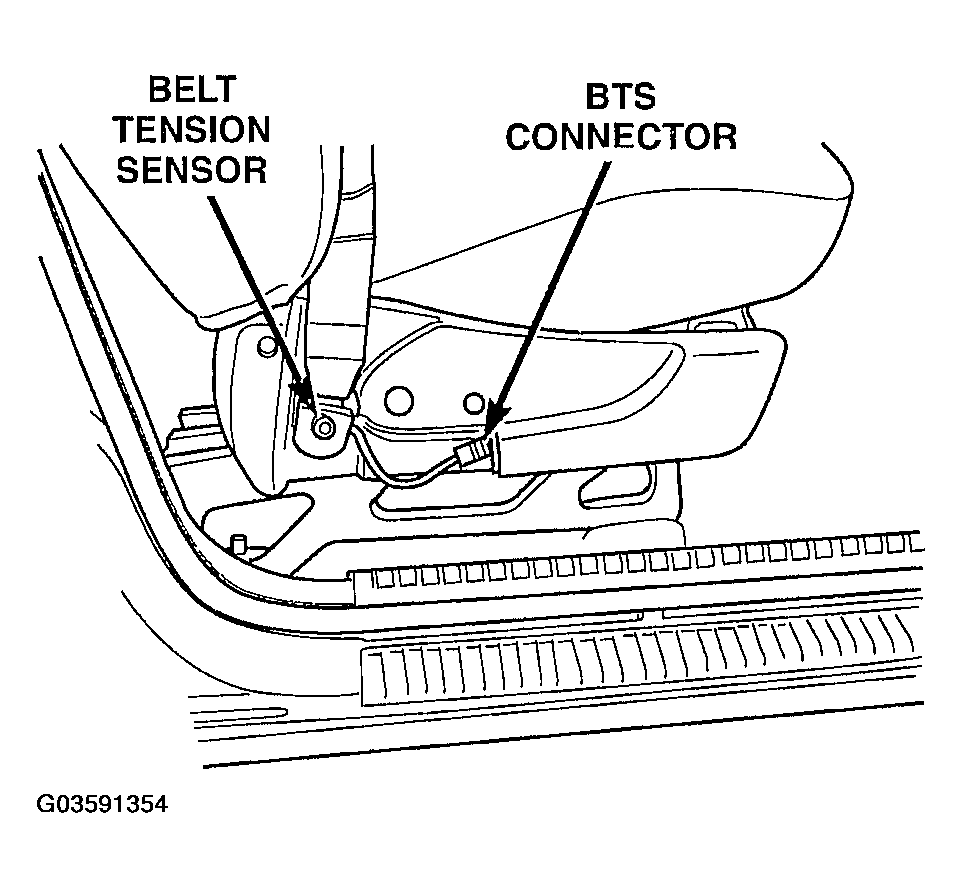

Fig 5: Identifying Occupant Classification System (5 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
