Powertrain Control Module C3 (Gas) Connector End View

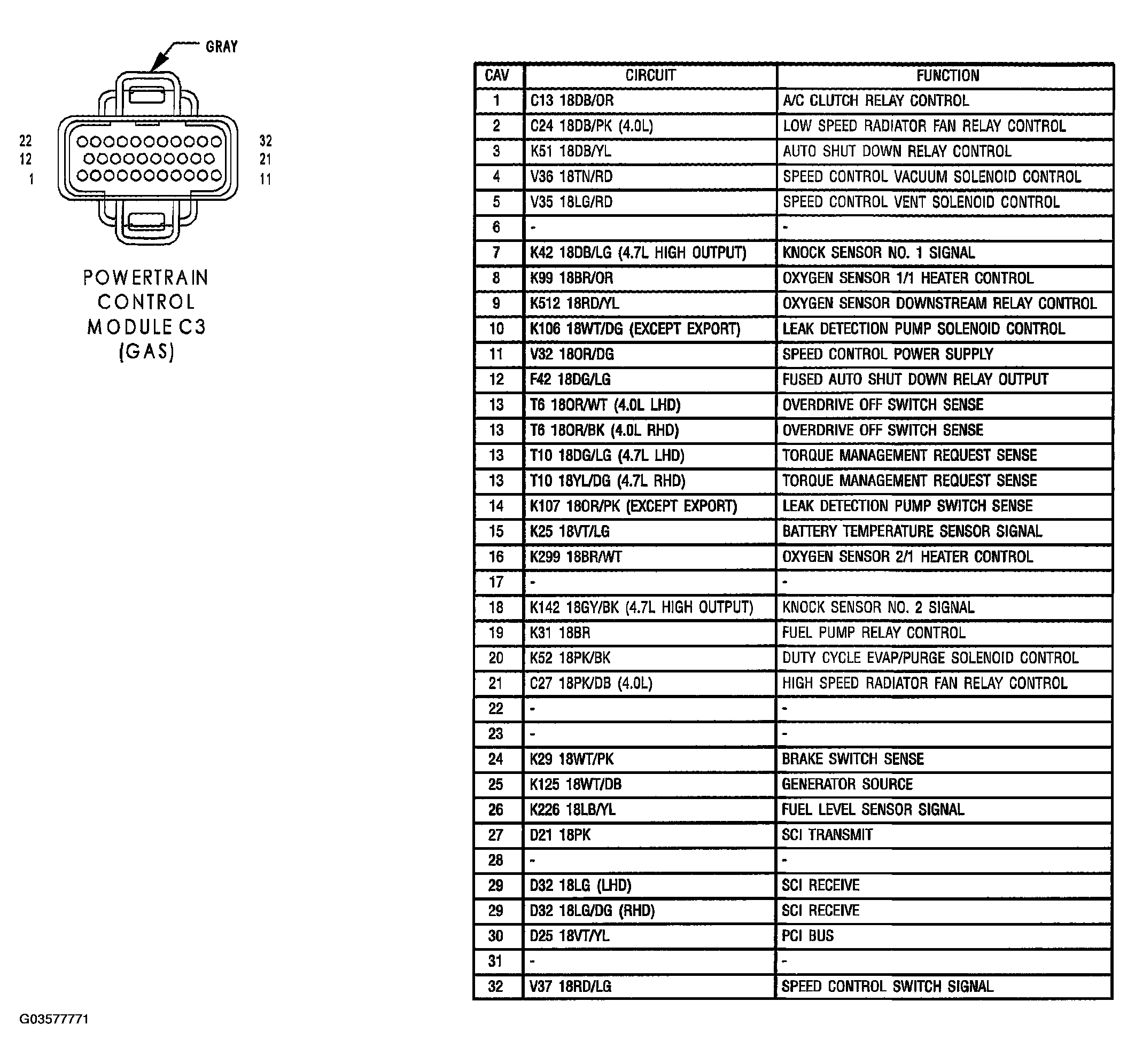

Fig 1: Powertrain Control Module (Gas) Connector End View (C3)

G03577771

Courtesy of DAIMLERCHRYSLER CORP.
