Adjustable Pedals Module (Except Export) Connector End View

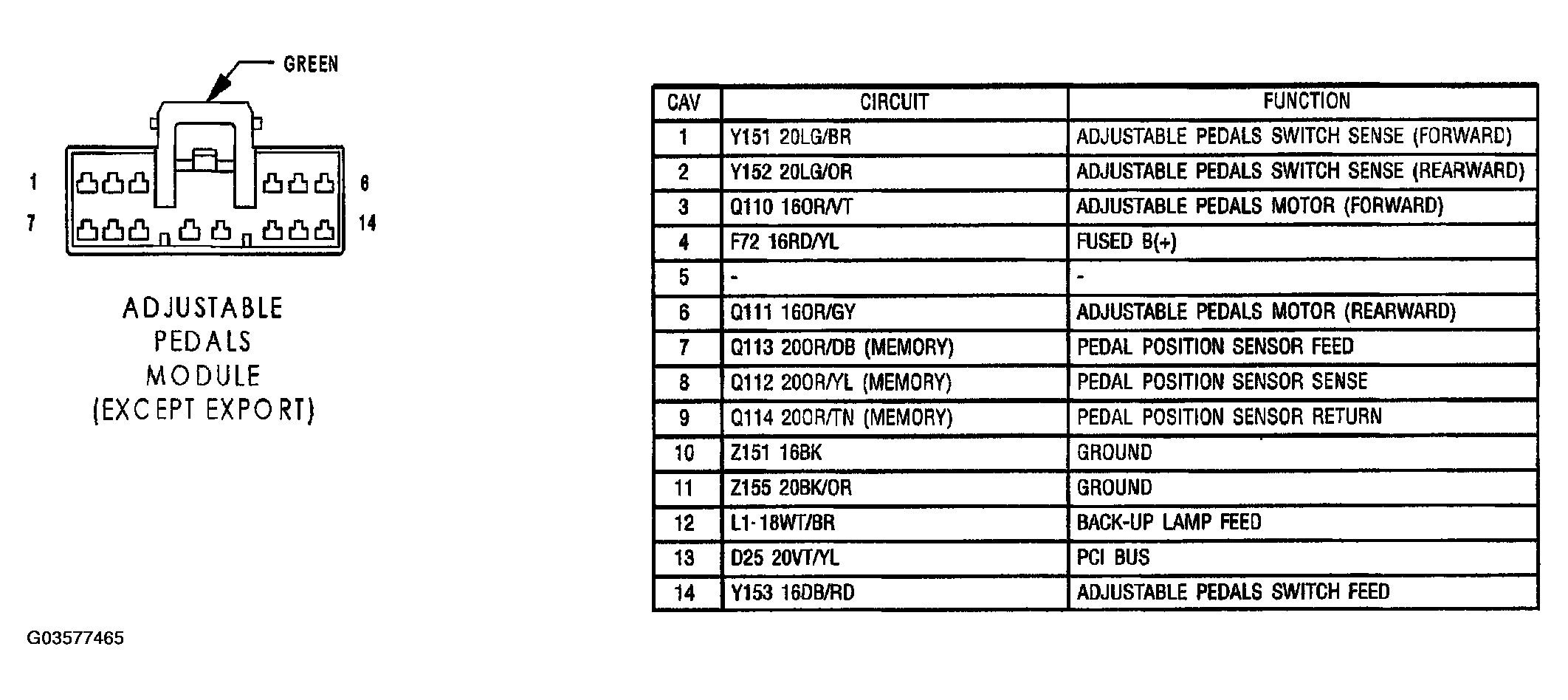

Fig 1: Adjustable Pedals Module (Except Export) Connector End View

G03577465

Courtesy of DAIMLERCHRYSLER CORP.
