Transmission Control Module C2 (Diesel) Connector End View

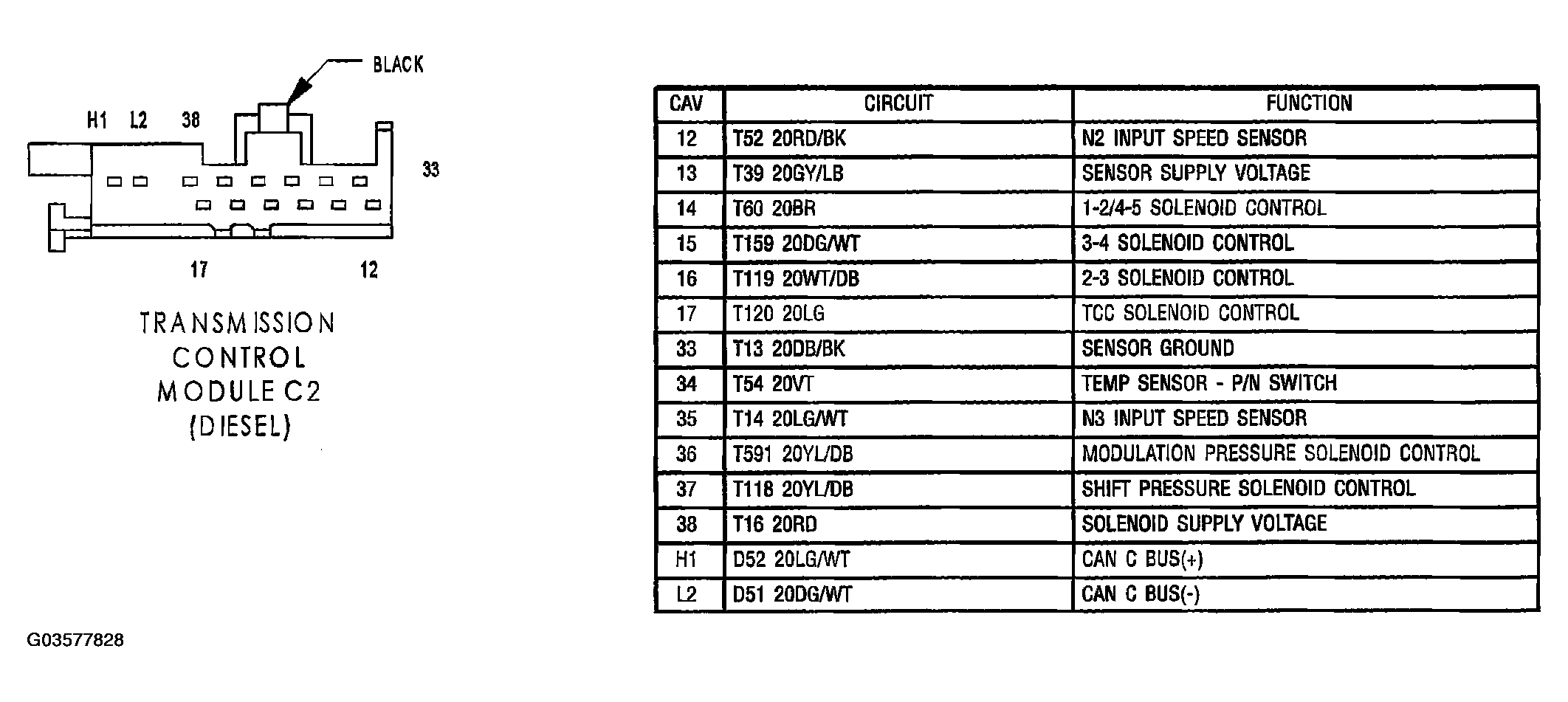

Fig 1: Transmission Control Module (Diesel) Connector End View (C2)

G03577828

Courtesy of DAIMLERCHRYSLER CORP.
