Fuel Pump Module (Gas) Connector End View

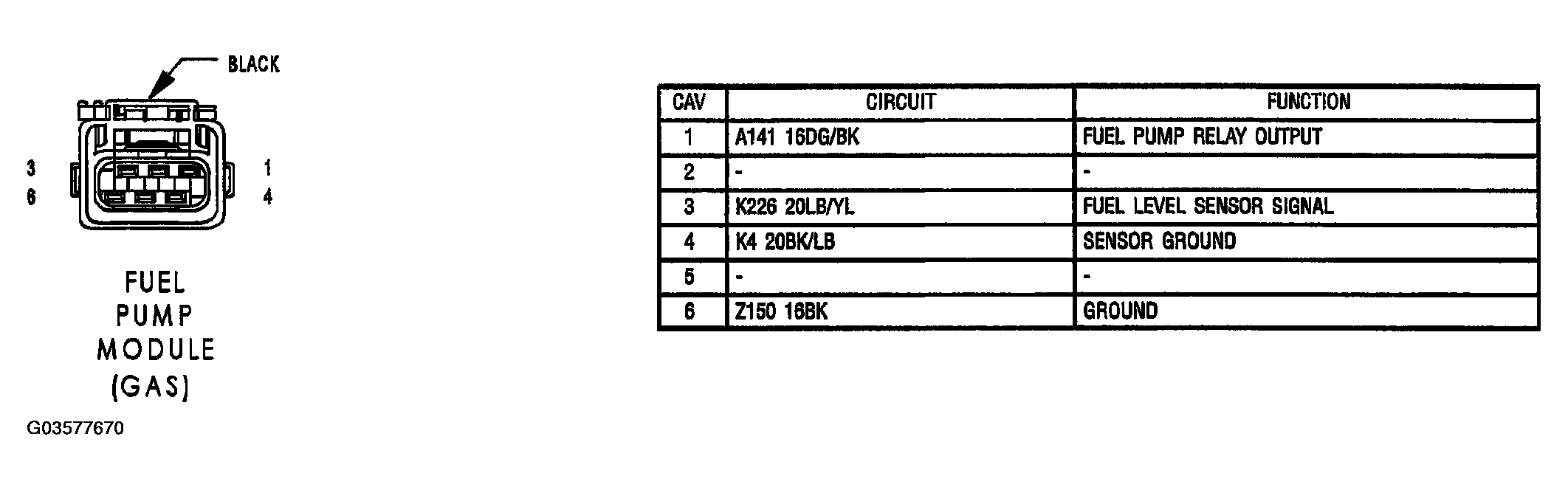

Fig 1: Fuel Pump Module (Gas) Connector End View

G03577670

Courtesy of DAIMLERCHRYSLER CORP.
