Driver Door Module C2 Connector End View

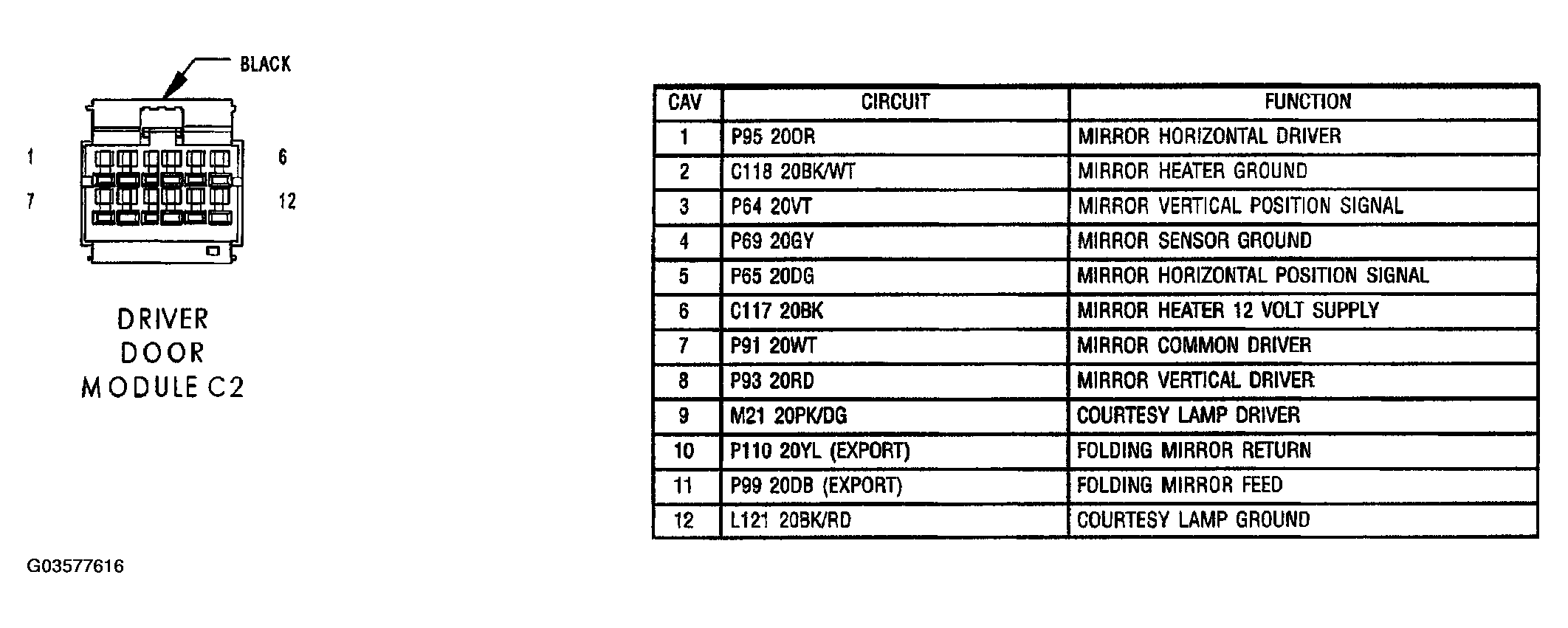

Fig 1: Driver Door Module Connector End View (C2)

G03577616

Courtesy of DAIMLERCHRYSLER CORP.
