Possible Causes

  1. GOOD TRIP EQUAL TO ZERO
  2. LOW COOLANT LEVEL
  3. THERMOSTAT OPERATION
  4. ECT SENSOR

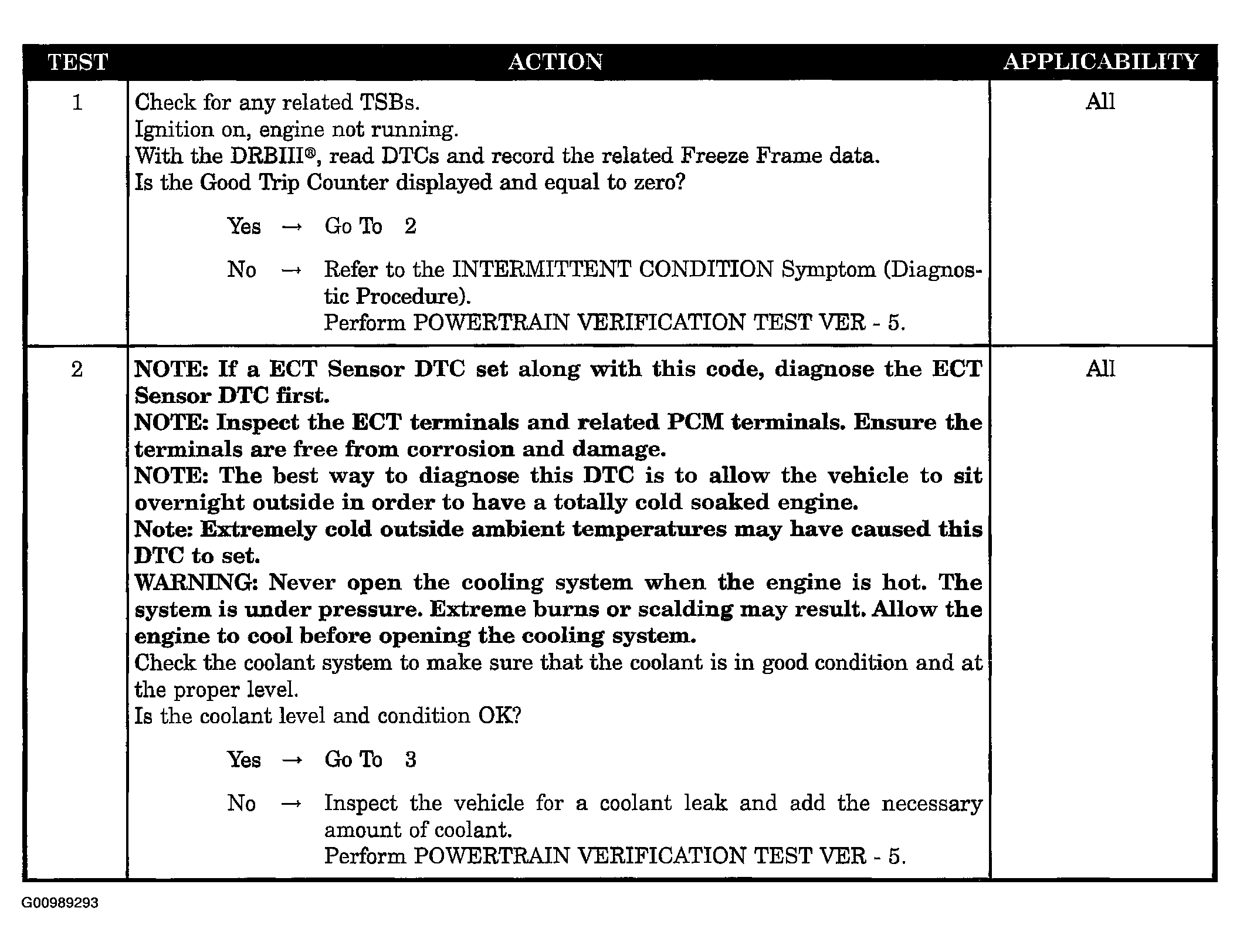

    Fig 1: Diagnosis Procedure - P0125 - Closed Loop Temp Not Reached (Test 1 To 2)
    G00989293Courtesy of DAIMLERCHRYSLER CORP.

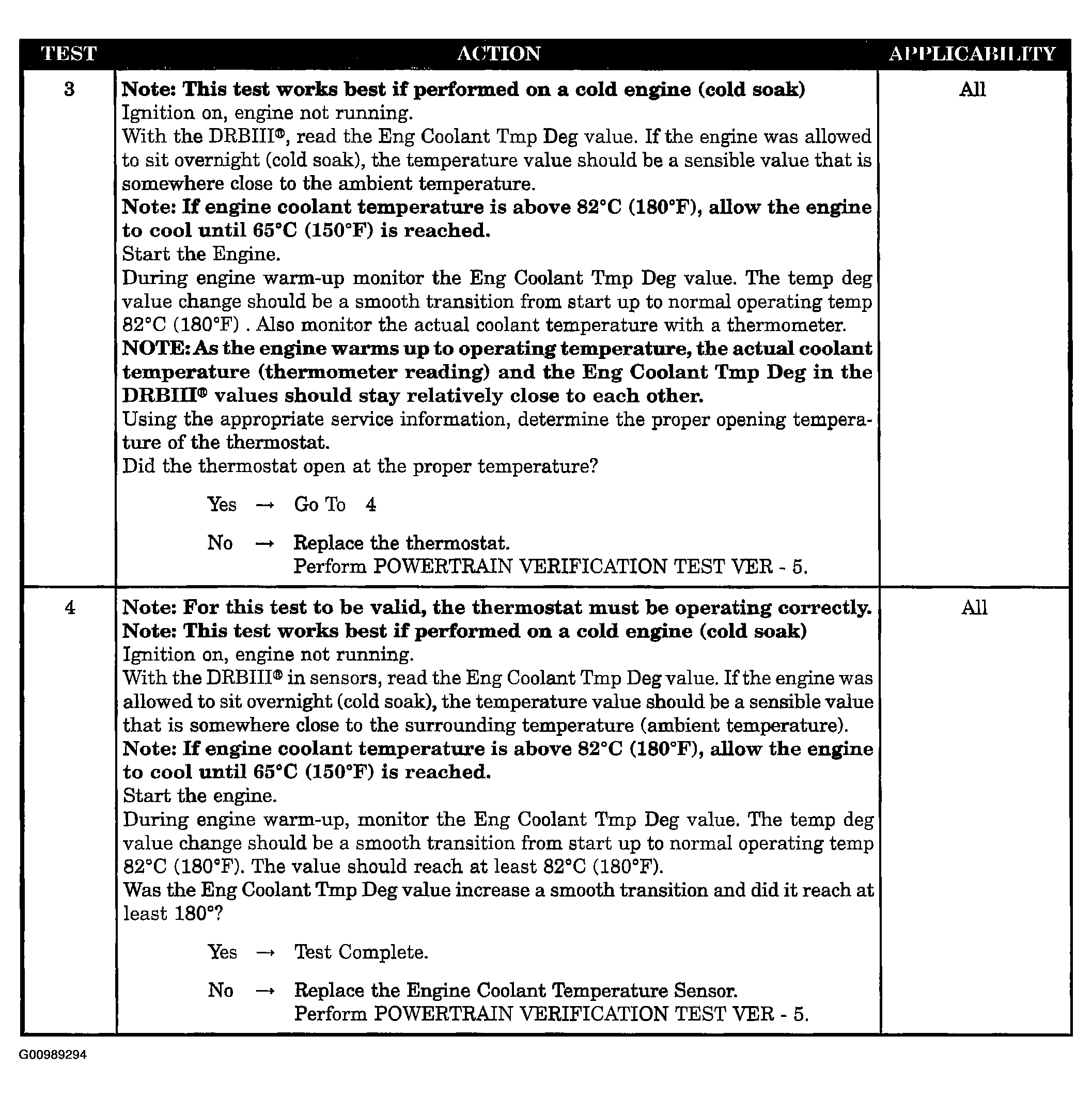

    Fig 2: Diagnosis Procedure - P0125 - Closed Loop Temp Not Reached (Test 3 To 4)
    G00989294Courtesy of DAIMLERCHRYSLER CORP.
