Removal - 4.7L

The TPS is located on the throttle body.

1. Remove air duct and air resonator box at throttle body.
2. Disconnect TPS electrical connector (Figure ).
3. Remove two TPS mounting bolts (screws) (Fig 1 ).

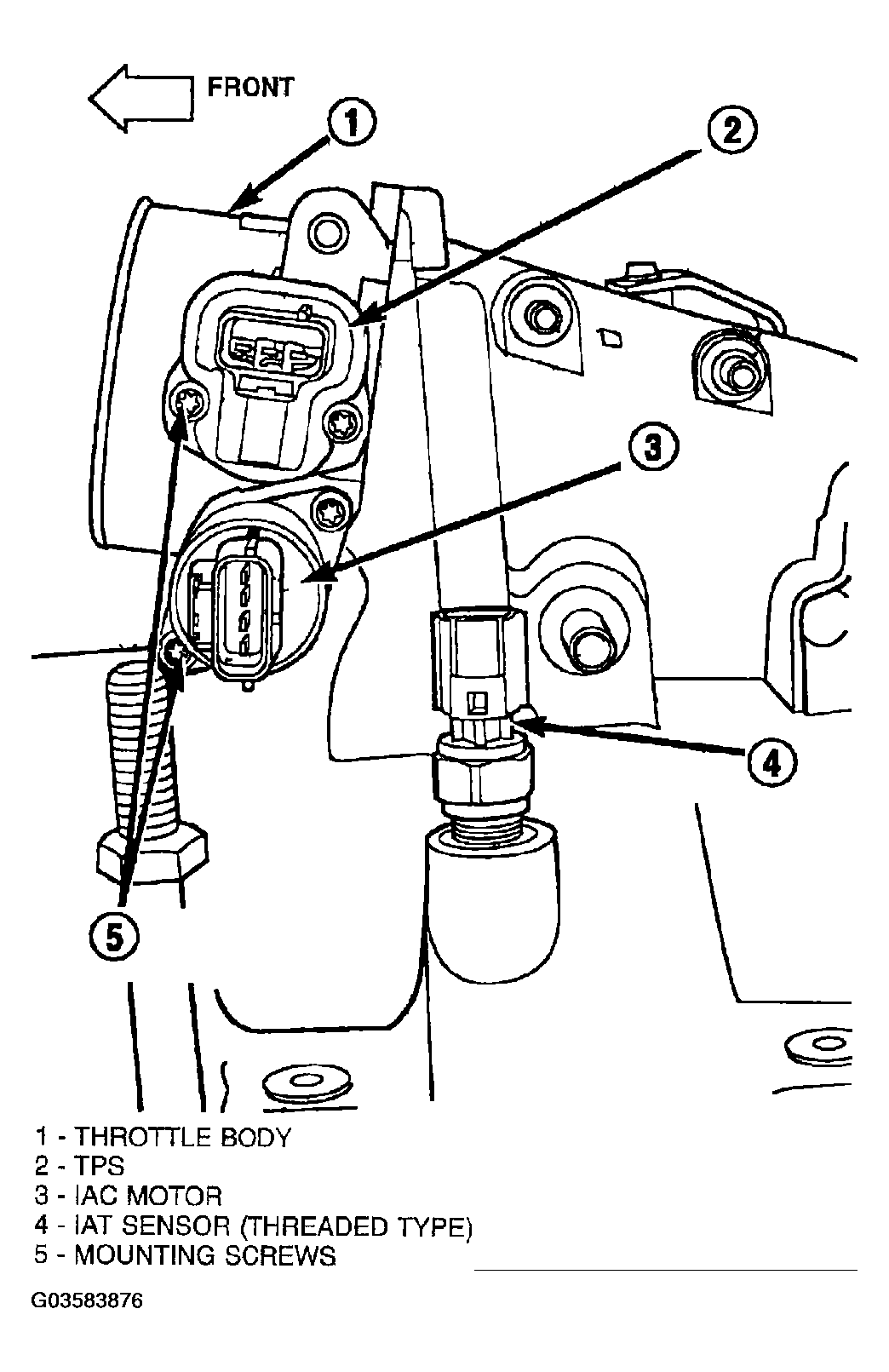

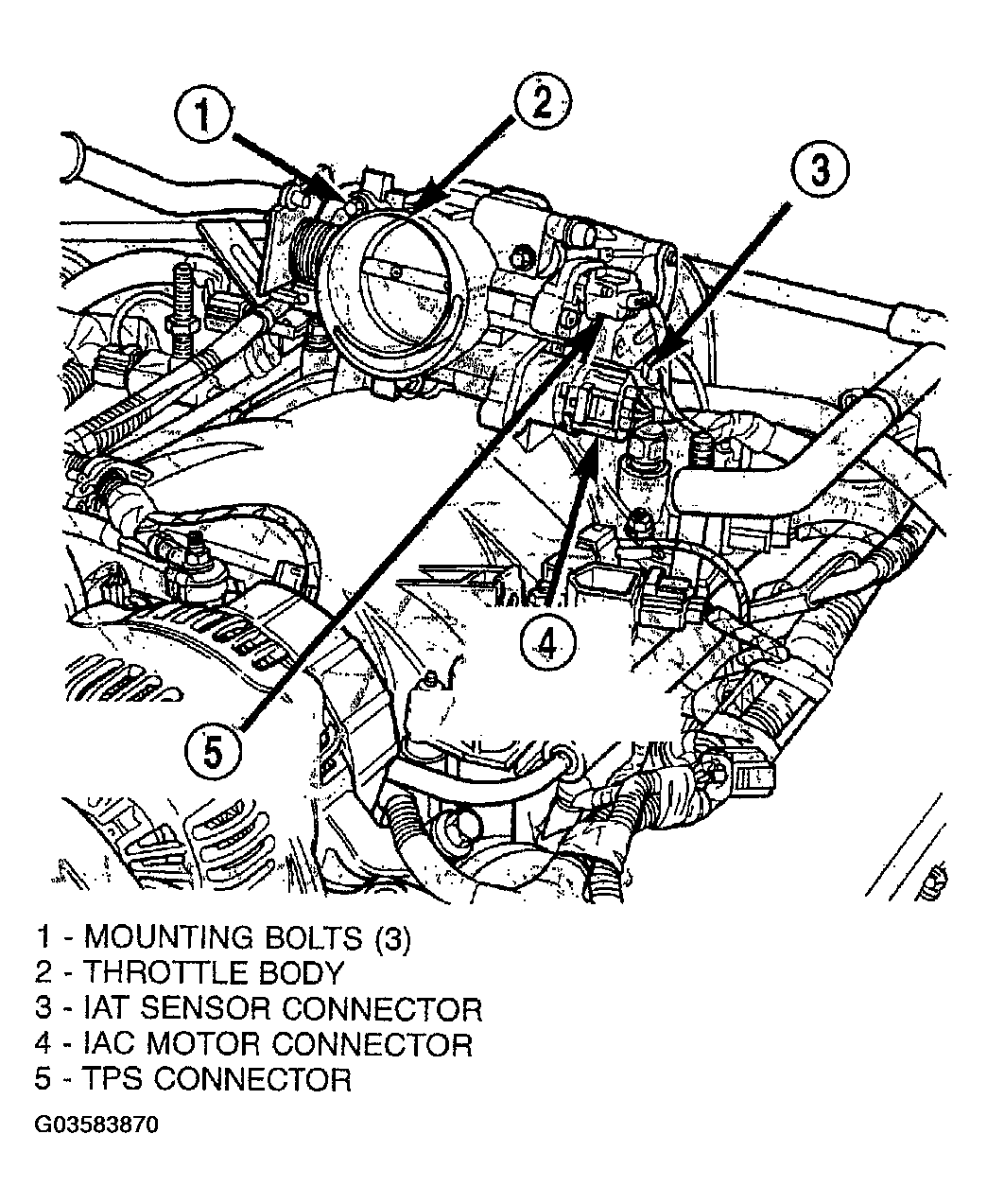

   Fig 1: TPS Mounting Bolts - 4.7L V-8

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove TPS from throttle body.
