Removal - 4.0L

The TPS is mounted to the throttle body.

1. Disconnect TPS electrical connector (Fig 1 ).
2. Remove TPS mounting screws (Fig 2 ).
3. Remove TPS.

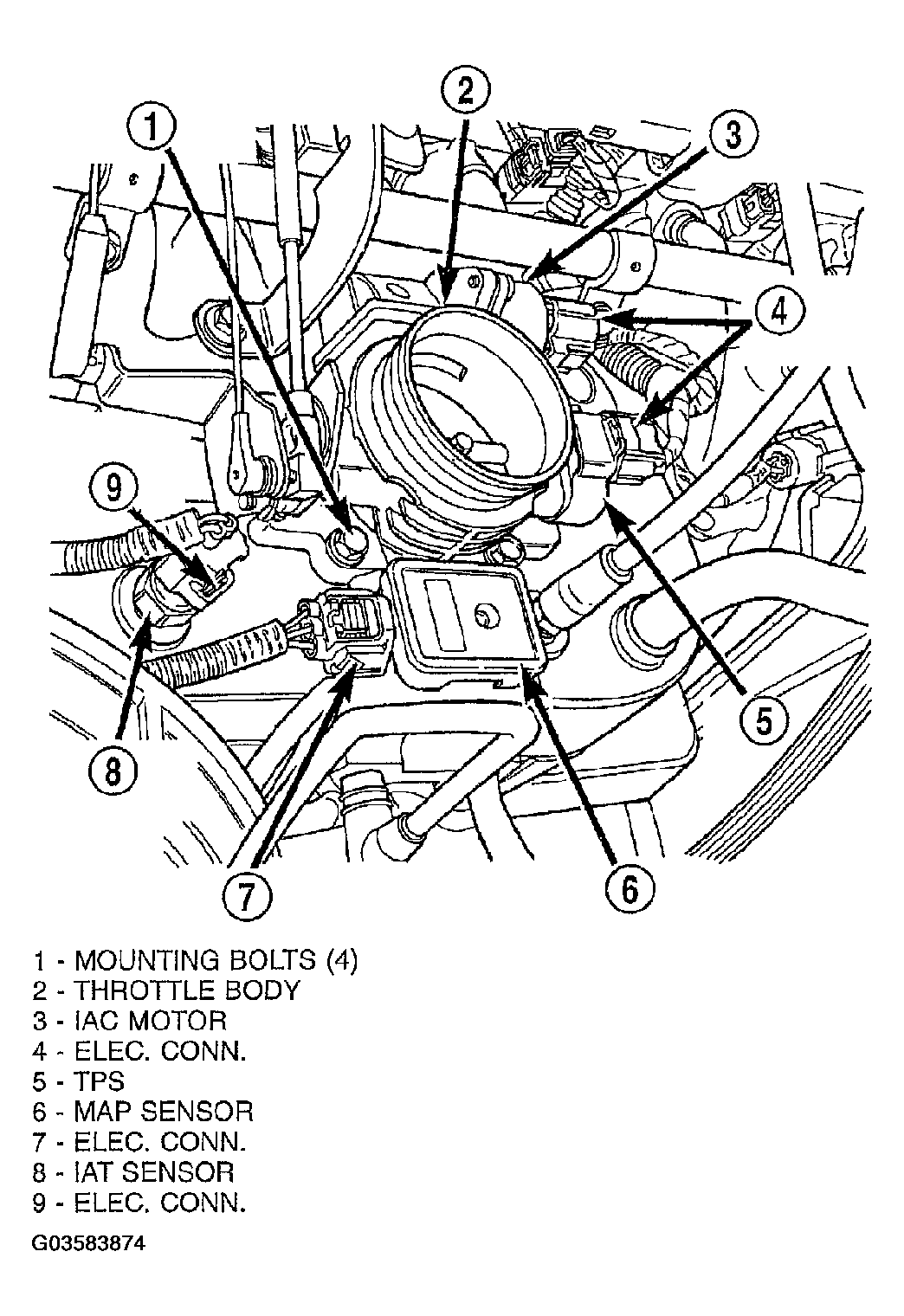

   Fig 1: TPS Electrical Connector - 4.0L Engine

   Courtesy of DAIMLERCHRYSLER CORP.

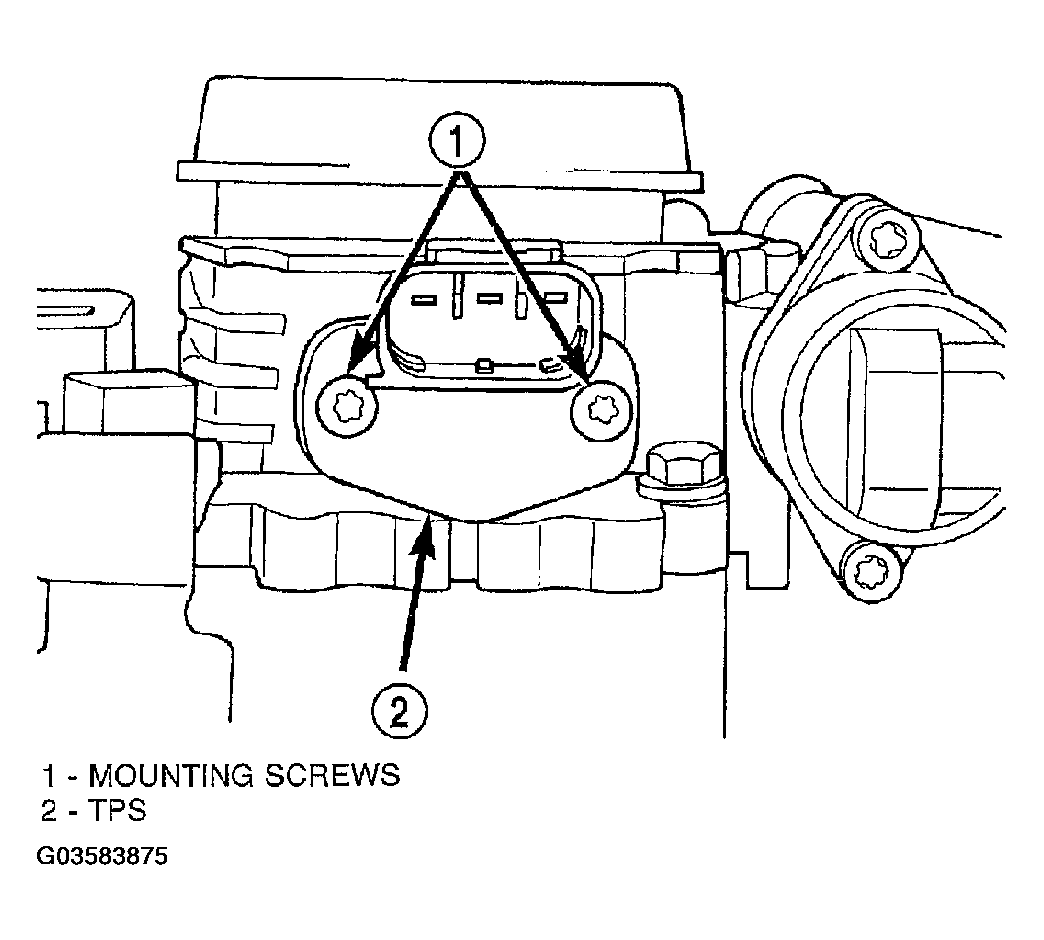

   Fig 2: TPS Mounting Screws - 4.0L Engine

   Courtesy of DAIMLERCHRYSLER CORP.
