Removal - 4.0L

CAUTION: Be careful not to damage or kink the cable core wire (within the cable sheathing) while servicing accelerator pedal or throttle cable.
  1. From inside vehicle, hold up accelerator pedal. Remove plastic cable retainer (clip) and throttle cable core wire from upper end of pedal arm (Figure ). Plastic cable retainer (clip) snaps into pedal arm.
  2. Remove cable core wire at pedal arm.
  3. From inside vehicle, remove clip holding cable to dash panel (Figure ).
  4. Remove cable housing from dash panel and pull into engine compartment.
  5. Remove (unsnap) cable from routing clips on engine valve cover.
  6. Remove cable connector at throttle body bellcrank ball by unsnapping rearward (Fig 1 ).
  7. Remove throttle cable from bracket by compressing release tabs (Fig 1 ) and pushing cable through hole in bracket.

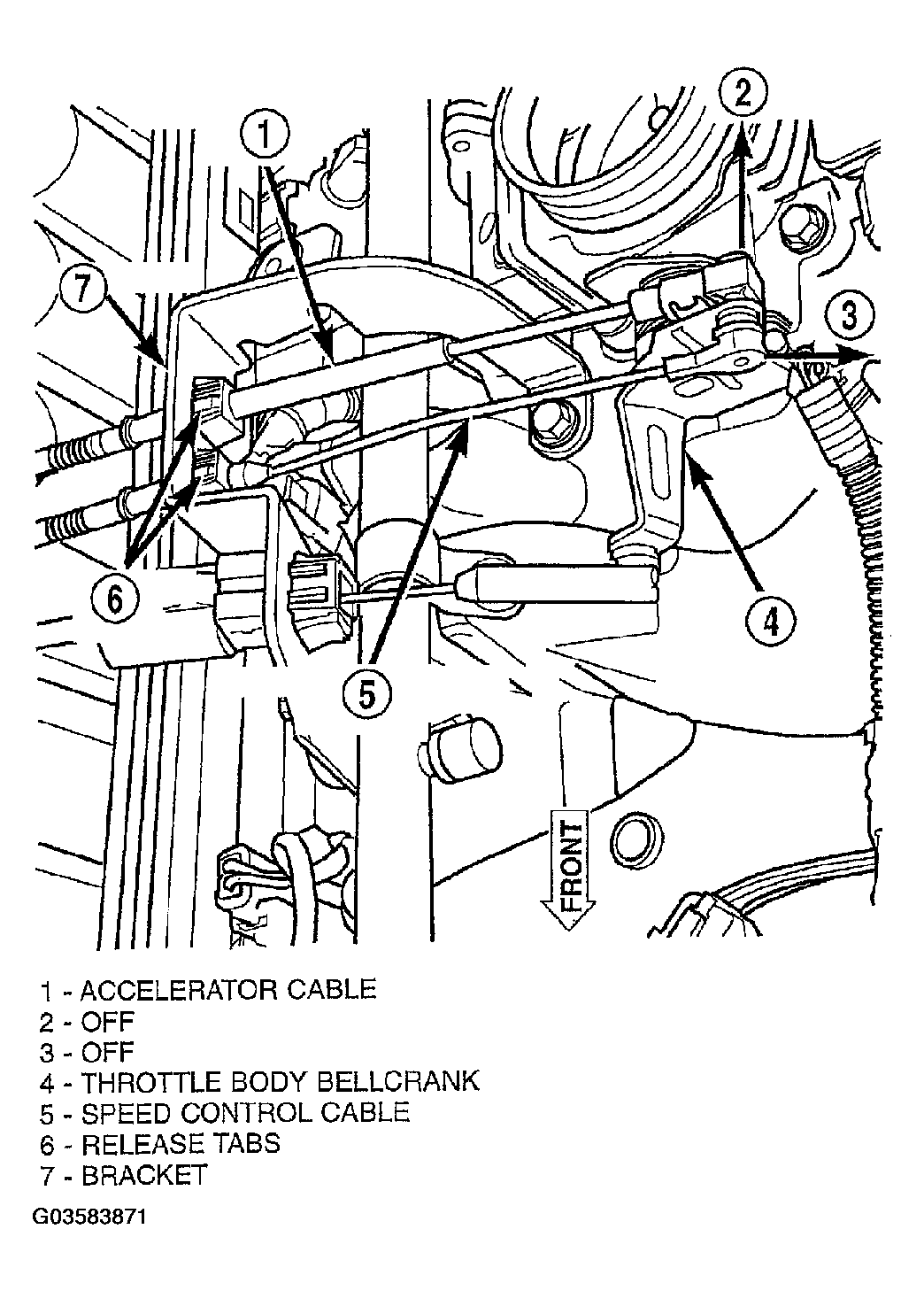

    Fig 1: Throttle (Accelerator) Cable At Throttle Body - 4.0L Engine
    G03583871Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove throttle cable from vehicle.
